C-93
Rear Attachment
43-170 RAHN GROOMER
SMITHCO QUICK ATTACH MOUNTING INSTRUCTIONS

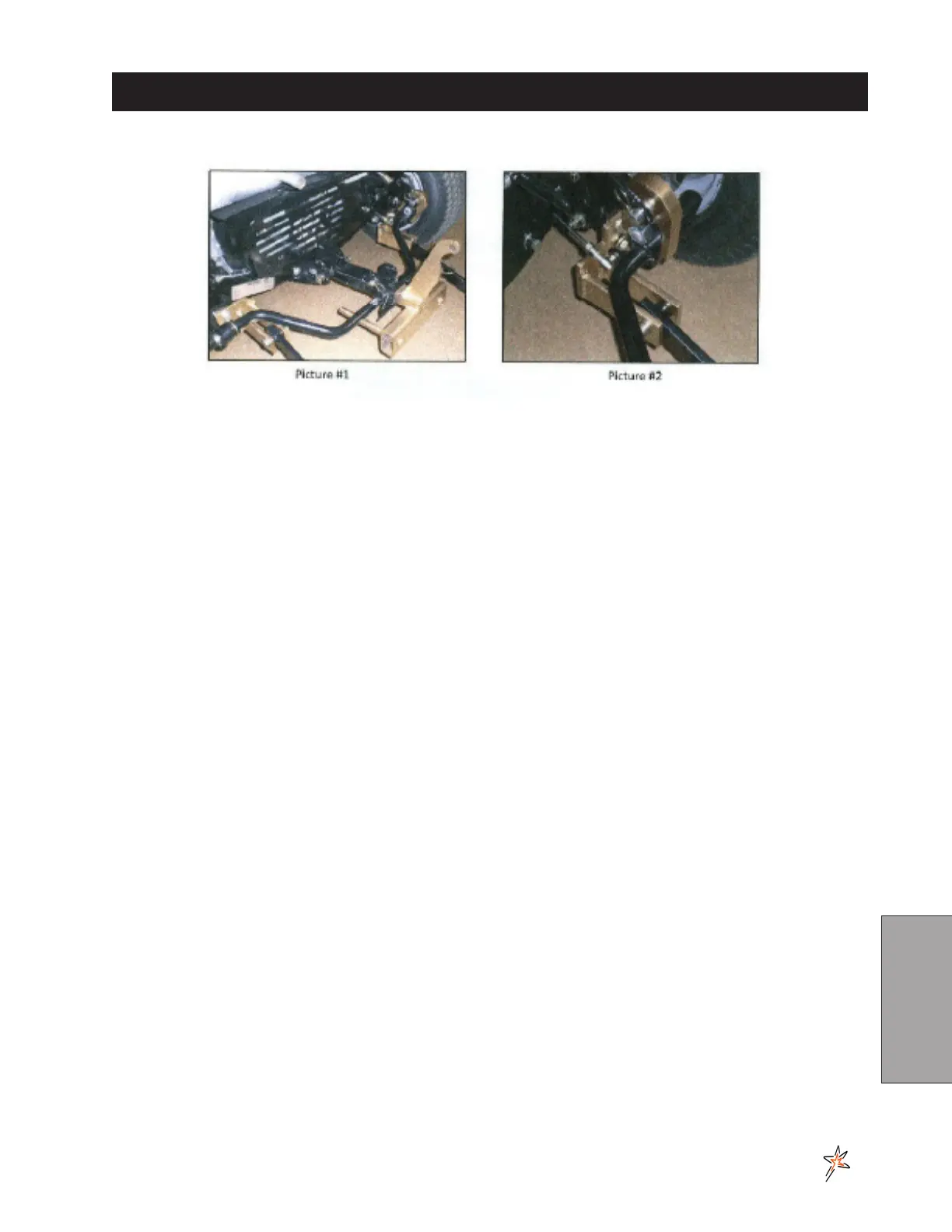

1� INSTALL RAHN CENTER LIFT ASSEMBLY INTO THE SMITHCO QUICK ATTACH MOUNTING
SLOT UNTIL IT ENGAGES WITH THE SPRING ASSISTED STOP� MAKE SURE THE 3/4” RODS ARE
BELOW THE QUICK ATTACH CROSS MEMBER� (PICTURE #1)
2� INSTALL THE RAHN PULL ARM BRACKETS (LEFT & RIGHT) ON TOP OF THE BRACKETS
USED FOR THE QUICK ATTACH SYSTEM USING THE HARDWARE PROVIDED� WHEN INSTALLING
THE BRACKETS, THE BOLT HOLES ARE LOCATED TOWARD THE WHEELS AND THE EARS OF THE
BRACKET ARE TO THE INSIDE�
3� REMOVE CLEVIS PIN IN THE ROD END OF THE CYLINDER� INSTALL CYLINDER MOUNT EX-
TENDER OVER EXISTING EAR ON CROSS MEMBER� TIGHTEN BOLT AND REPLACE PIN� (PICTURE
#2)
