Smithco 45-204-C - Page 39

37
Parts
REAR AXLE PARTS LIST
REF# PART# DESCRIPTION QUANTITY
1 HNL-12-20 Lug Nut,
1
/
2
- 20 10
45-065-01 Studs 10
2 45-065 RH Brake Assembly w/ Wheel Motor 1
3 18-383 45° Elbow 4
4 17-537 Square U-bolt 1
5 8-603 Battery Strap 1
6 45-059 Battery Tray 1
7 HB-12-13-700 Hex Bolt,
1
/
2
-13 x 7 8
8 45-066 LH Brake Assembly w/ Wheel Motor 1
9 45-107 LH Brake Cable 1
10 45-404 Park Brake Mount 1
11 60-106 Park Brake Lever 1
12 45-074 Park Brake Link 2
13 HB-516-18-100 Hex Bolt,
5
/
16
- 18 x 1 2
HW-516 Flat Washer,
5
/
16
2
HNFL-516-18 Flange Lock Nut,
5
/
16
- 18 2
14 45-075 Equalizer 1
HCP-516-100 Clevis Pin,
5
/
16
x 1 2
HP-18-100 Cotter Pin,
1
/
8
x 1 2
15 45-108 RH Brake Cable 1
16 45-039 LH Upper Hydraulic Tube 1
17 45-038 LH Lower Hydraulic Tube 1
18 45-069 Twin Pipe Clamp 1
19 45-080 LH Brake Cable Mount 1
20 18-170 Tee 2
21 45-040 RH Lower Hydraulic Tube 1
22 45-041 RH Upper Hydraulic Tube 1
23 45-079 RH Brake Cable Mount 1
24 HNFL-12-13 Flange Lock Nut,
1
/
2
- 13 8
25 14-265 Nut, 1- 8 (part of wheel motor) 2
26 18-337 Tee 1
    

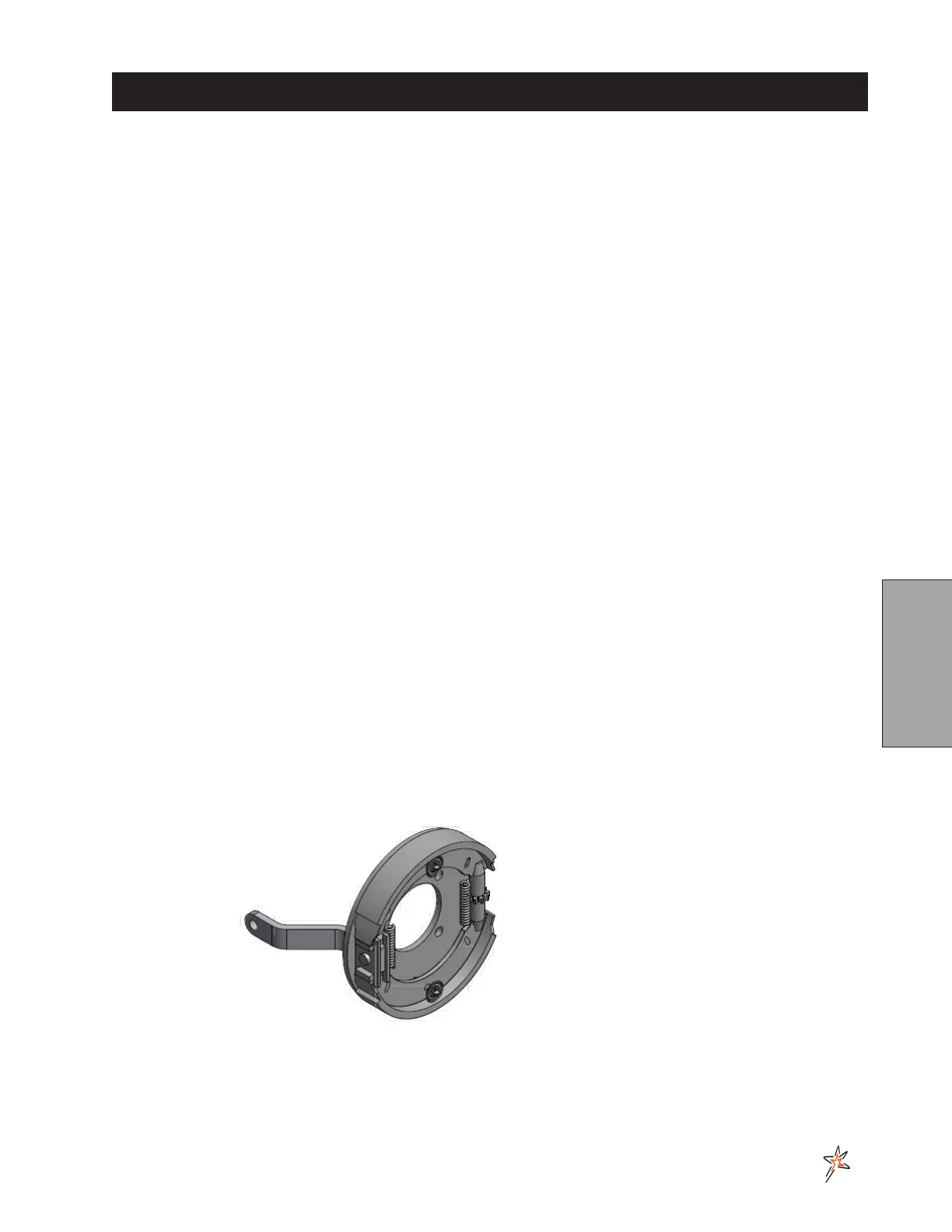

NS 43-241-01 Brake Assembly only (replacement part)
