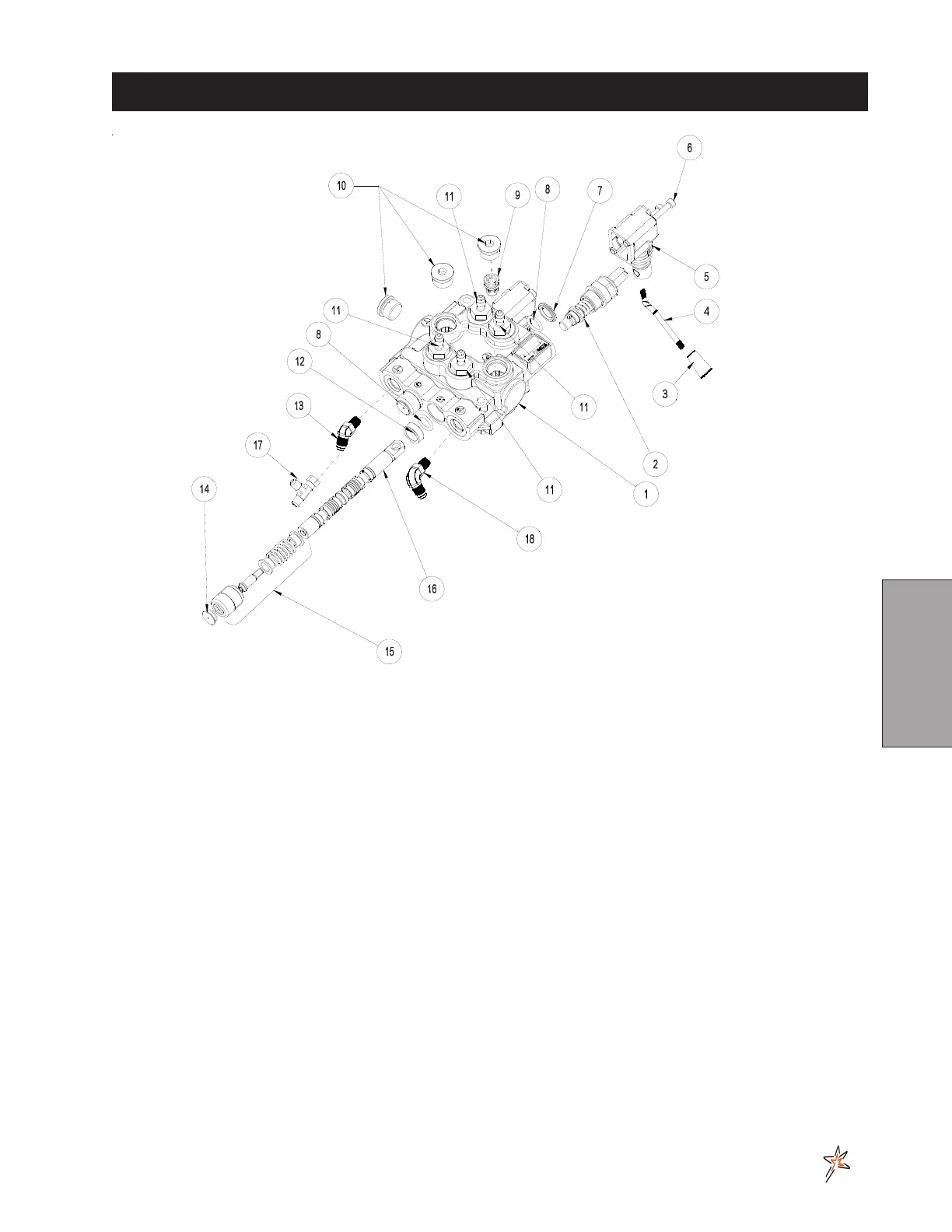

13-729 2-BANK HYDRAULIC VALVE
REF # PART # DESCRIPTION QUANTITY
1* 78-415-01 Body (complete with spacer and check valve) 1
2* 78-415-02 Spool HDM10 1
3 78-417-01 Tapered Knob 2
5* 78-415-09 Lever Group HDS11 2
6* 78-415-10 Metric Socket Screw M5 x �8 x 45 4
7* 78-415-04 Flanged Washer HDM10 2
8* 78-415-03 O-Ring Seal 4
9* 78-415-12 Check Valve Assembly HDM12 1
10* 78-415-13
3
/
4
- 16 SAE 8 Screw Plug 3
11 18-169 Adapter,
1
/
4
-
3
/
8
SAE 4
12* 78-415-05 Spacer 2
13 18-188 45° Elbow 1
14* 78-415-08 Plug 2
15 78-415-11 Positioner 2
16* 78-415-06 A Type Spool HDS11 2
17 18-190 Run Tee 1
18 18-168 Elbow 1
* 13-729 2 – Bank Hydraulic Valve (includes all * items)
