Pump Setup
Programming the Pump: General
Instructions

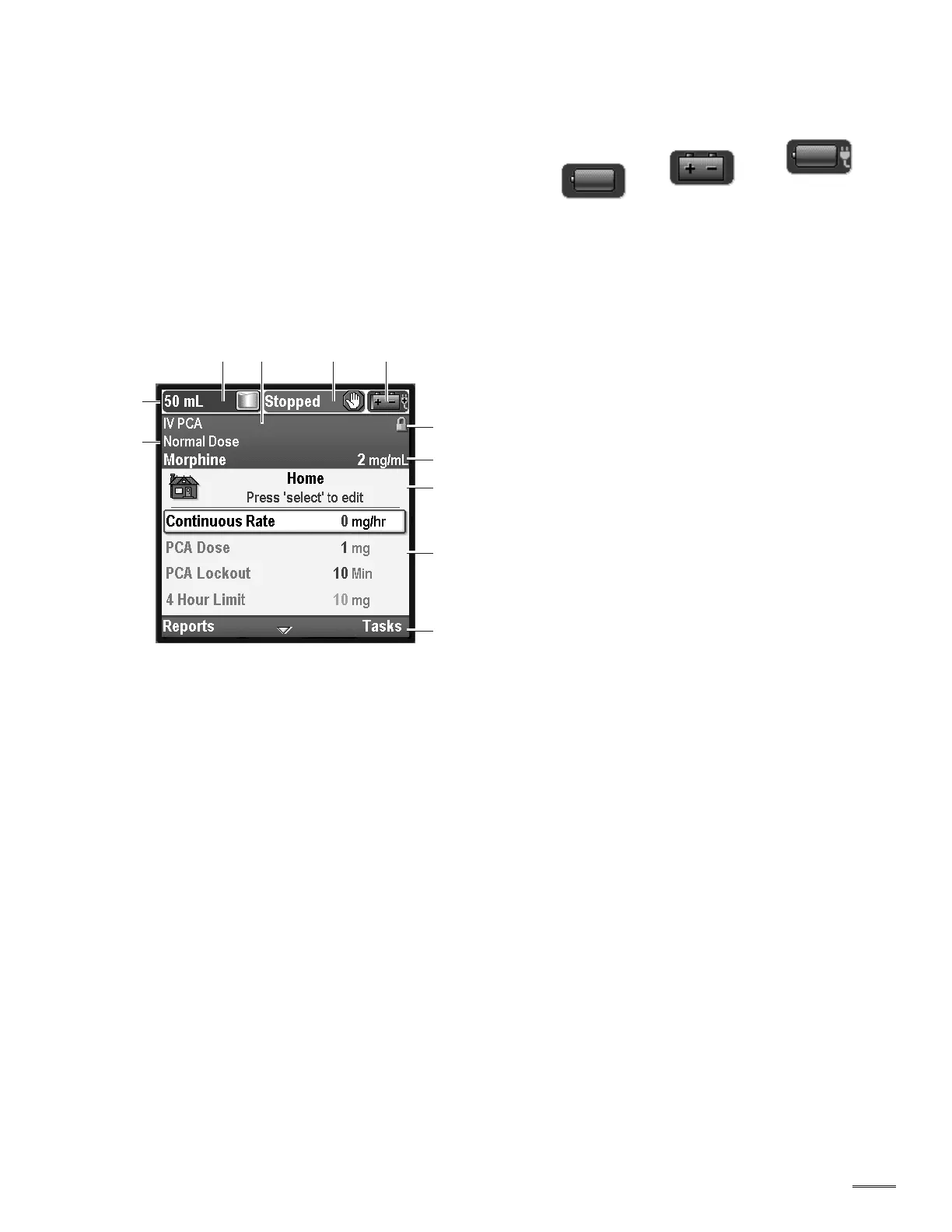

The Pump Screen
The screen shots that you will see in this manual
are only examples of what might be displayed.
The protocols (consisting of therapies, qualifiers,
drugs and concentrations, and all associated pump
settings) in your pump library will be established by
your facility.

The therapy, qualifier, and drug from the
current protocol.
The status bar shows the status of the pump. It
also displays messages and alerts, for example,
if you locked or unlocked the cassette/keypad
lock or the keypad, attached a cassette, or
reached delivery limit.

The current value of the reservoir volume.
 The color of the screen is dependent on how
the protocol was set up in the CADD
®
-Solis
Medication Safety Software. If the screen color
is black, the protocol has been modified in the
administrator settings (see the Administrator
Settings Guide for more information) or the
pump is in manual mode (see Manual Mode
Programming on page 32).

The delivery status of the pump—stopped or
running.

  
i

1)


1!

 The type of battery being used and the
approximate amount of life it has, as well as
AC indication.

Keypad lock status—locked or unlocked. In
this example, the keypad is locked.
iThe units of measurement (mL, mg, or mcg)
and the concentration (if units are mg or
mcg) for the current protocol.

The name of the screen displayed and help
text for the screen, if there is any. This
screen, for example, is the home screen.

The work area/contents for the screen being
displayed (in this example, the patient
specific parameters are on display).

Options for navigating the pump. These
options will change depending on the screen
you are on and what functions you are
performing with the pump.
Color Display
The CADD
®
-Solis pump display uses color to
help the clinician recognize critical information
quickly and easily. For example, your facility may
choose to relate a specific color to each protocol in
its library. This is customizable by your CADD
®
-
Solis system administrator. Protocols may be
color coded in several different ways depending
on the needs of your pain management program,
including:
• Routeofadministration(e.g.,allepidural
protocols may be yellow and used with a
pump with a yellow keypad, yellow cassette
reservoir or administration set, yellow
extension set, and a yellow lockbox).
• Patienttype(e.g.,allpediatricprotocolsmay
be blue).
Or by any other hierarchy which fits the needs
of your institution. There are five protocol colors
available. The color of the protocol is displayed
AA battery
source
Rechargeable
battery source
Battery with AC
Adapter—may be
AA or rechargeable
battery
