39BOC Smootharc 180 Multiprocess operating manual
Installation for TIG setup Installation for MMA process

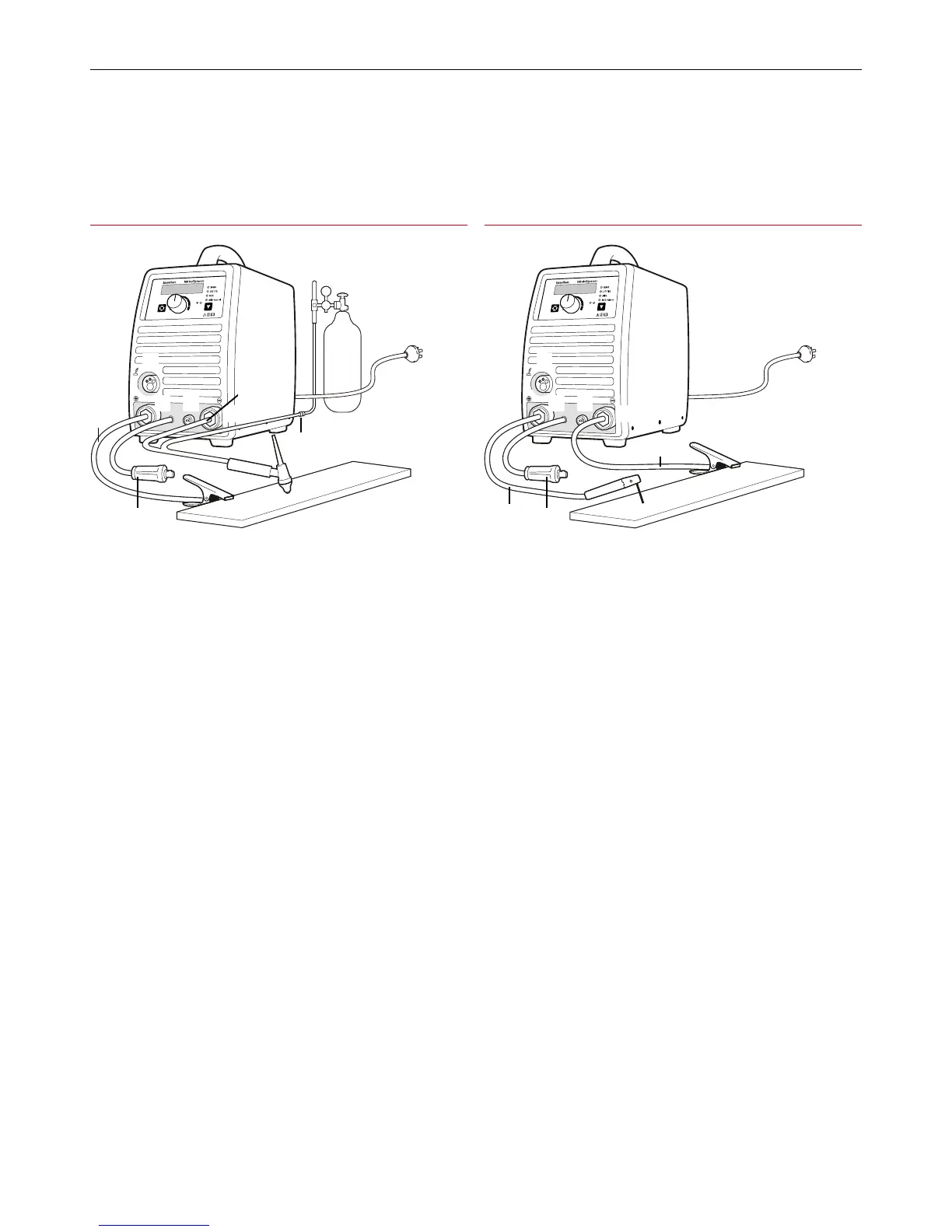

8.3 Installation for TIG setup
1 Connect the gas cylinder to the regulator. Connect MIG gas hose to
the regulator. Connect the A1 TIG gas hose into the free end of the
MIG gas hose, after disconnecting the MIG gas hose from the back of
the machine. Select correct shielding gas for the application.
2 Connect the A2 dinse plug of the TIG torch to 14 negative (-)
terminal of the front panel, and fasten it clockwise.
3 Connect B work return lead to 11 positive (+) terminal on the
front panel, and fasten it clockwise. Connect the clamp end to the
workpiece.
4 The 12 short mechanical connector (link plug) should remain
hangingfree.
8.4 Installation for MMA process
1 Connect the A electrode holder to the 11 positive (+) terminal of the
machine and fasten it clockwise.
2 Connect the B work return lead into the 14 negative (-) terminal of
the machine and fasten it clockwise.
3 Please note that for manual metal arc (MMA) welding the electrode
holder can be switched to the negative pole of the welding machine
if so required by the specication of the electrode.
4 The 12 short mechanical connector (link plug) should remain
hangingfree.
12 12
11 11
13 13
14 14
10 10
A
B
B
A2
A1
