BOC Smootharc 180 Multiprocess operating manual

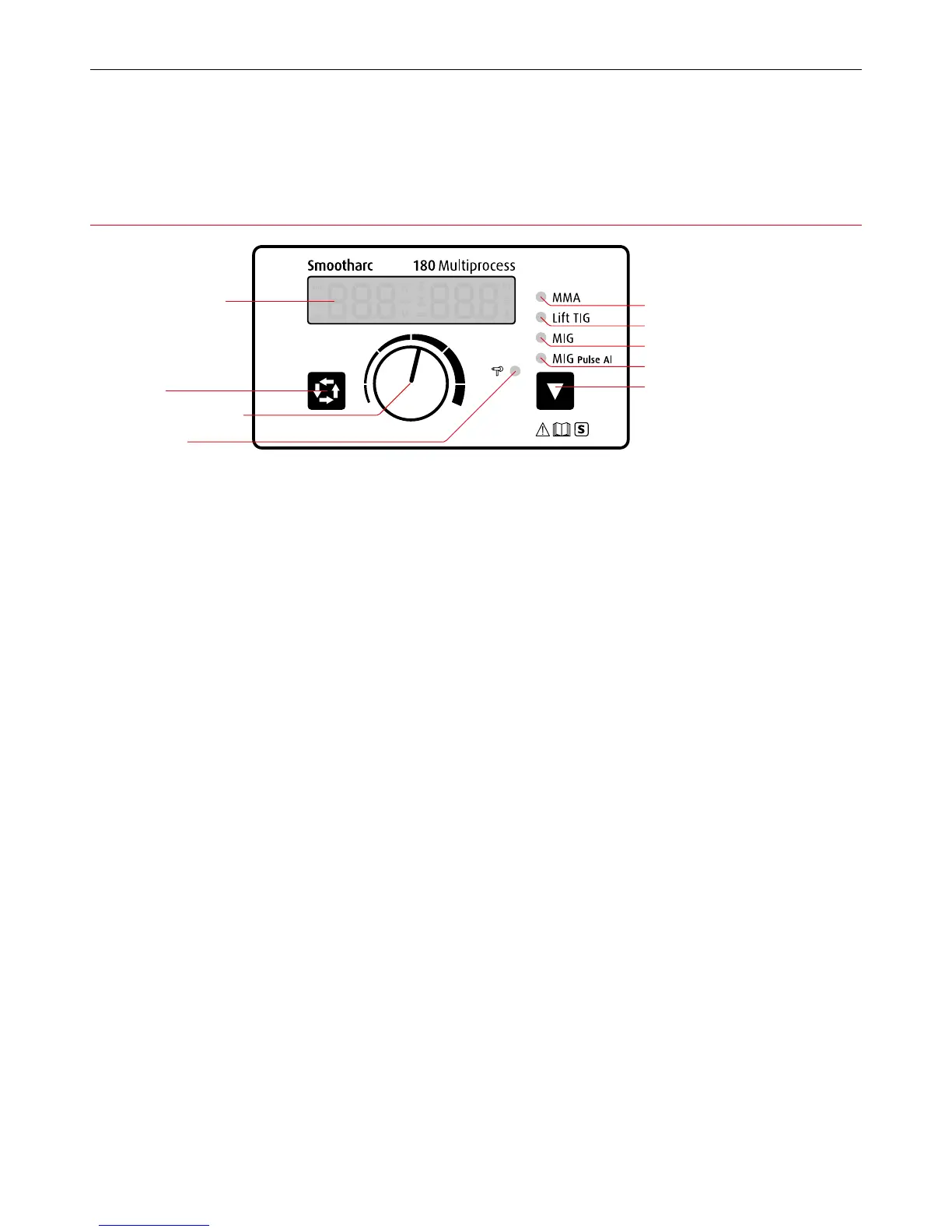

Front panel of 180 Multiprocess
Multifunctional parameter adjustment
• Coarse adjustments made by pressing and turning the knob.
• Fine adjustments made by only turning the knob without pressing.
9.1 Polarity selection
Polarity selection can be reversed when welding in MIG/MAG mode.
This is important for certain types of self-shielded ux cored wires. This
can be achieved by switching the B work return lead to the 11 positive
(+) terminal and the 12 short mechanical connector (link plug) to the
14negative (-) terminal for a DC electrode negative polarity setting.
9.0 Control panels
4 Spool gun indicator
3 Multifunctional data adjustment
6 Lift TIG indicator
7 MIG indicator
8 MIG Pulse Al indicator
5 MMA indicator
9 MMA/Lift TIG/MIG/MIG Pulse Al
1 Multifunctional data display
2 Data selection
