SMORACY BEAST 3680 - Page 131

Copyright 12/14 113 S/N XXXX WO#XXXXXX
Smoracy, LLC
MODEL 3680
1
2
3
7
6
3
2
1
3
5
4
8

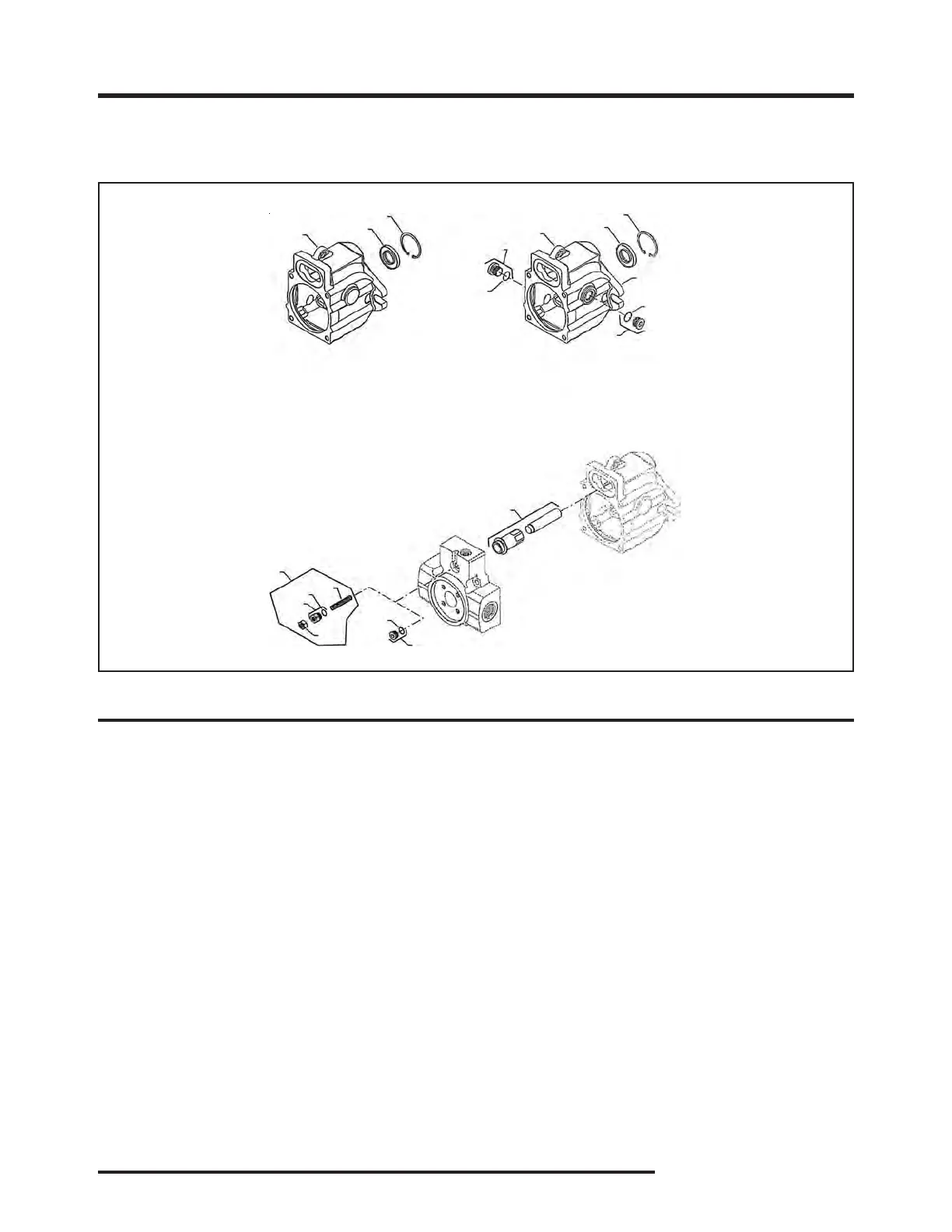

HYDRAULIC COMPONENTS
Constant Speed Pressure Compensated Pump
P/N 900-3923-11 (Housing, Shaft Seal, and Displacement Limiter)
LOCATION PART NUMBER DESCRIPTION
1. 016014 Retaining Ring
2. 5000555 Lip Seal
3. 1700164 Housing
4. 315325 Plug
5. 001149 O-Ring
6. 315325 Plug
7. 001149 O-Ring
8. 4510352 Servo Piston Kit .45CC, Small
