SMORACY BEAST 3680 - Axle Components

Copyright 12/14 146 S/N XXXX WO#XXXXXX
Smoracy, LLC
MODEL 3680 AXLE COMPONENTS

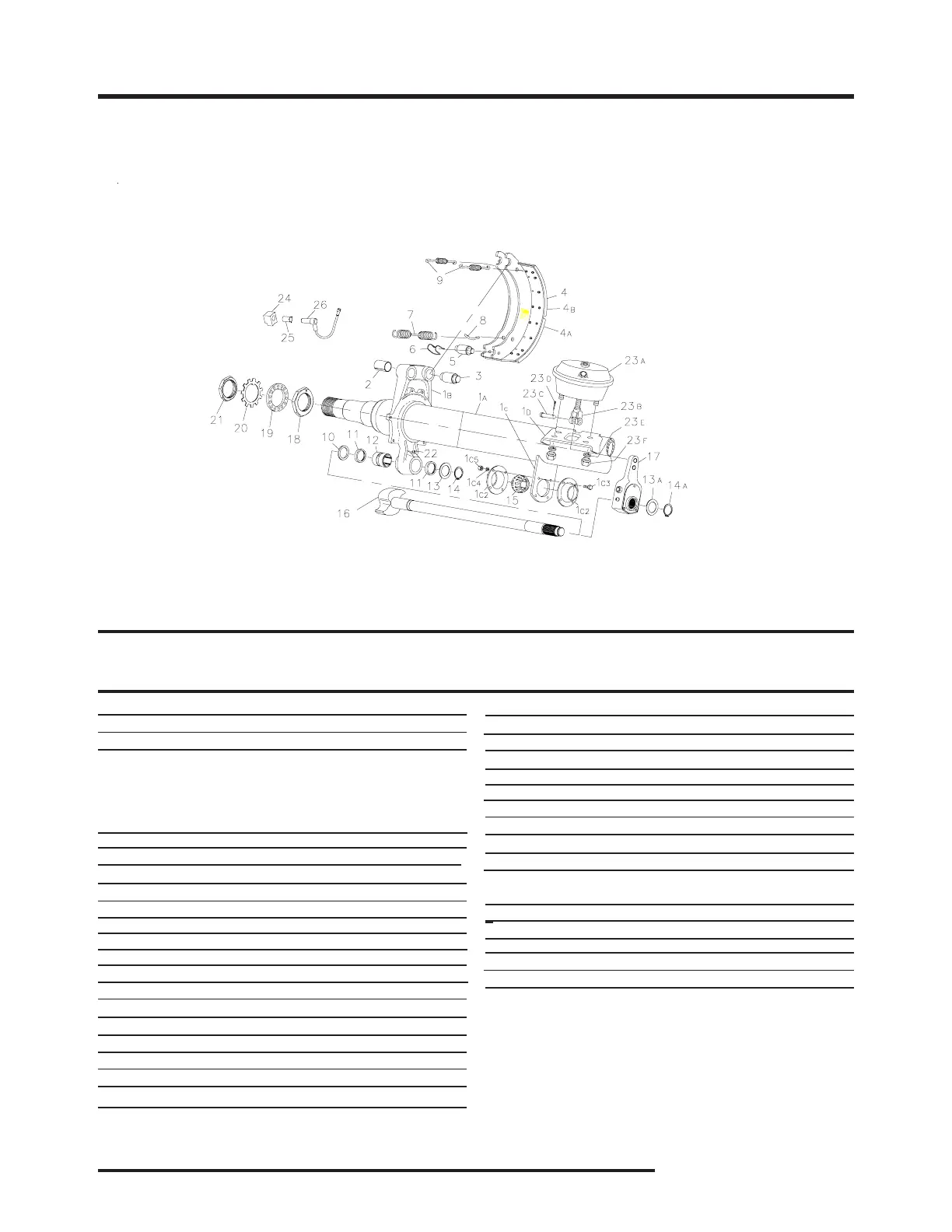

AXLE BRAKE COMPONENTS
Qty.
per
Item Description Brake Part. No.
Qty.
per
Item Description Brake Part. No.
1A Beam 5/8 wall 25K rating 1 D-2M16
1B Spider 2 036-092-02
1C Bracket Camshaft Support 2 034-047-00
1C contains:
1C2 Retainer Plate 4 034-032-00
1C3 Bolt, Retainer Plate Attach. 8 007-139-00
1C4 Lockwasher, Cover Attach. 8 005-079-00
1C5 Nut, Retainer Plate Attach. 8 006-099-00
1D Bracket, Air Chamber Mount 2 034-048-00
2 Bushing, Spider Anchor Pin 4 014-068-00
3 Anchor Pin 4 056-017-00
4 Shoe and LIning Assembly 4 040-180-00
4A Lining, Brake Block Cam 4 041-058-01
4B Lining, Brake Block Anchor 4 041-059-01
5 Roller 4 014-065-00
6 Retainer, Roller 4 071-122-00
7 Spring, Shoe Retractor 2 046-096-00
8 Retainer Pin-Retractor Spring 4 056-018-00
9 Spring, Shoe Keeper 4 046-097-00
10 Washer, Camshaft 2 005-096-00
11 Grease Seal 4 010-052-00
12 Bushing, Camshaft Spider 2 014-056-00
13 Washer 2 005-097-00
13A Washer, Camshaft Slack Adj 2 005-134-00
14 Snap Ring 2 069-020-00
14A Retainer, Camshaft Slack Adj 2 069-078-00
15 Bushing, Camshaft Support 2 014-058-00
16 Camshaft, LH RH 2 034-xxx-xx
17 Slack Adjuster, Manual 2 055-039-00
18 Nut, Inner Spindle Bearing 2 006-114-00
19 Lockwasher, Indexing 2 005-098-00
20 Lockwasher, Tab 2 005-099-00
21 Nut, Outer Spindle 2 006-115-00
22 Grease Fitting, 65 deg. 2 061-006-00
23A Air Chamber Assy. ( includes item 23E, 23F)
2 034-xxx-xx
23B Clevis 2
23C Pin, Clevis 2
23D Cotter Pin 2
23E Lockwasher, Air Chamber 4
23F Nut, Air Chamber 4
Axle/Brake Assy. 900-5905-07
25K Axle Assy.
