SMORACY BEAST 3680 - Dust Suppression Components

Copyright 12/14 95 S/N XXXX WO#XXXXXX
Smoracy, LLC
MODEL 3680
LOCATION PART NUMBER DESCRIPTION
1. 900-9902-52 Plastic 90 Elbow with Nut
2. 900-9902-55 Nozzel Tip (Discharge Side Sprayer)
3. 900-9902-57 Nozzel Cap
4. 900-9902-62 Male to Hose Barb
5. 900-3917-76 Coupling
6. 900-9902-58 Nozzel Body
7. 900-9902-59 Nozzel Tip (Center over Yoke)
8. 900-9902-53 Plastic “T” with Nut
9. 900-9902-56 Nozzel Tip (Road Side & Curb Side)
10. 900-9902-50 Plastic Elbow
11. 900-9902-93 Male to Hose Barb
12. 900-9902-60 Shut Off Valve
13. 900-9902-48 Nipple
14. 900-9902-51 Plastic “T”
15. 900-9902-49 Plastic 90 Elbow
16. 900-9902-54 Filter
17. 900-3913-00 Hose Connector
18. 900-9902-78 Clear Hose (priced per foot) Not Shown
DUST SUPPRESSION

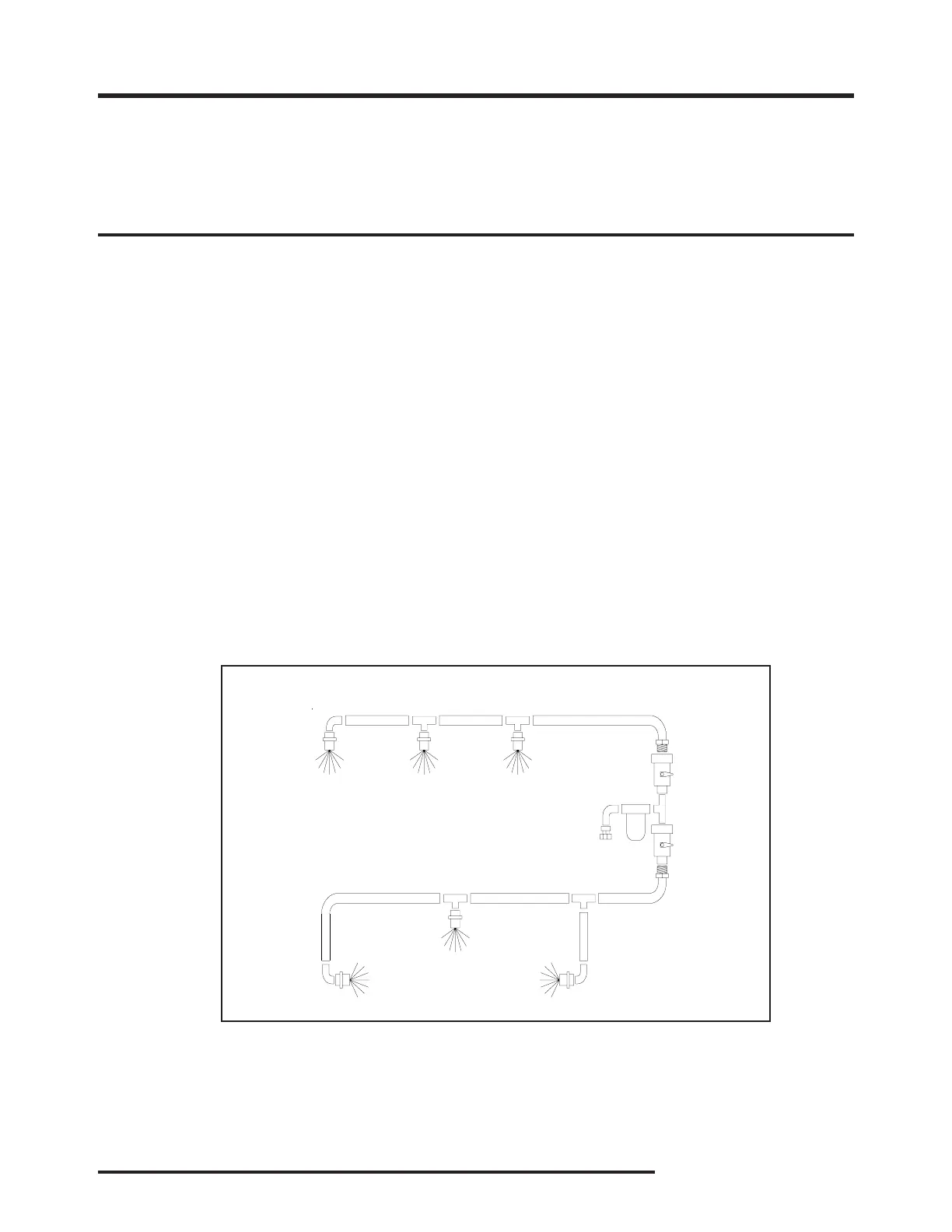

Dust Suppression Water Schematic
Discharge Side
Center Yoke
Curb Side
Road Side
DUST SUPPRESSION SYSTEM
