MODEL 3680

CONTROLS

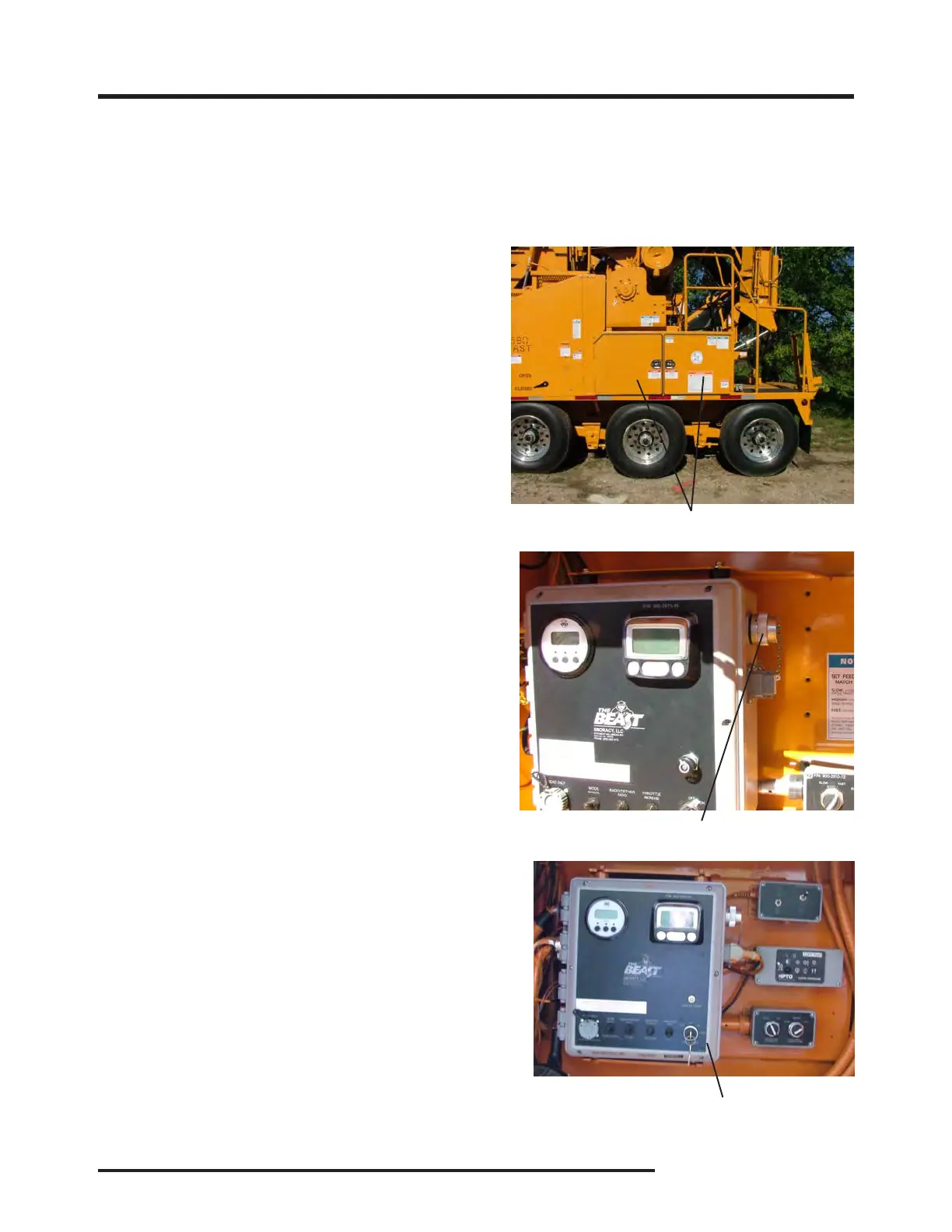

Model 3680 Beast Basic Location of Controls

Control Cabinets

Deutsch Socket

Engine Start

CONTROLS/START UP PROCEDURES

PRIMARY CONTROLS

Controls for the Recycler are located in the control

cabinet on the road side of the machine. The Recycler is

operated by means of a dual control system. All valves

function manually and some of these same valves are

controlled electrically by the Tether Remote Control or the

optional Radio Remote Control.

DEUTSCH SOCKET

Attachment of the tether remote umbilical cord is via a

Deutsch Socket. The cord and push button station can be

removed by unscrewing the Deutsch plug from its socket.

When using the tether remote as the main control, the

manual control valves must be placed in the off position.

REMOTE RADIO CONTROL

In addition to the primary and tether remote, the machine

can also be controlled by an optional radio control up to a

distance of two hundred feet. The radio receiver is mounted

inside the control panel for machines ordered with this

option.

ENGINE START

Before starting the engine make sure that the clutch is not

engaged. Turn the ignition switch one stop to the ON position.

This will turn on the electrical fuel pump and the rest of the

electrical system. Then turn the ignition switch all the way

to the right and hold until the engine starts. There will be

a five second delay, during this time a beeping sound will be

heard alerting anyone near the machine that it is starting.

Also the temperature overheat light will cycle letting you know

that it is working.

NOTE: Some engines have a pressure override switch wired

into their systems. In this case, depress the pressure override

button and turn the ignition switch all the way to the right,

now hold both until the engine starts. Once their is oil pressure

the override button may be released.
