SMORACY BEAST 3680 - Page 63

Copyright 12/14 61 S/N XXXX WO#XXXXXX
Smoracy, LLC
MODEL 3680
The following will instruct on the proper procedure for timing the Augers. Augers which are not
timed correctly will not move material properly and will interfere with each other during opera-
tion. This interference will cause Auger damage and premature wear.

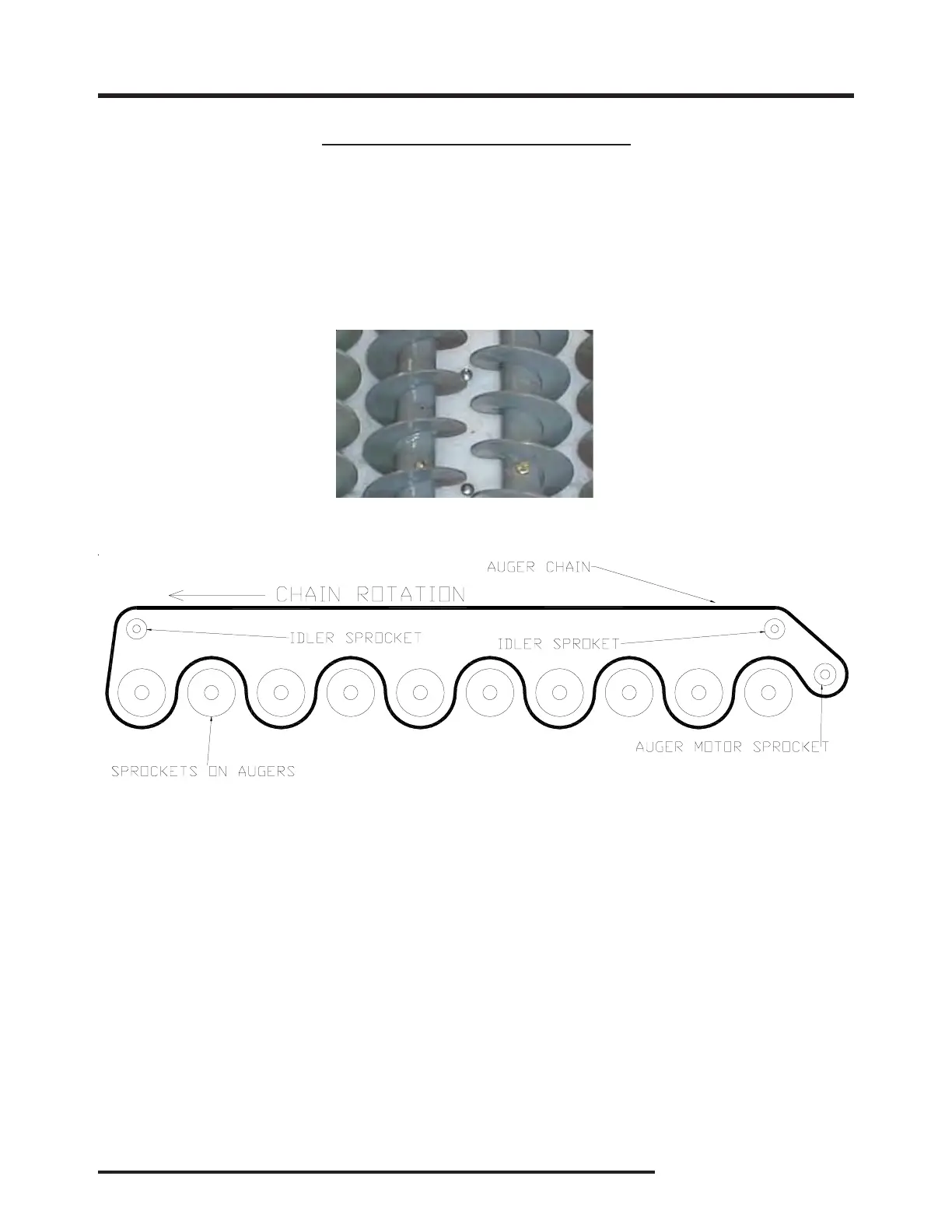

1. Rotate the Augers to “time” each one so that the flighting is centered between the flighting
of the Auger on each side. See Example.
AUGER SECTION
2. Install the Auger Chain by threading it over the Auger Sprockets. See Example.
3. Install chain master link, remove excess slack in chain and align Auger Sprockets, Idler
Sprockets, and Auger Motor Sprocket.
4. Tighten the Auger Chain.
5. Remove tools and equipment from the Auger area and verify that all persons are clear of
the machine.
6. Start engine and operate Augers to verify timing, sprocket alignment, and chain rotation.
7. Check chain tension after several hours of operation and adjust as necessary.
ROAD SIDE OF MACHINE
AUGER TIMING PROCEDURE
