Advanced Troubleshooting (Adult supervision recommended)
Elenco
®
is not responsible for parts damaged due to incorrect wiring.
If you suspect you have damaged parts, you can follow this procedure to systematically
determine which ones need replacing:
1. Lamp (L4), color LED (D8), blue LED (D9), blink red LED (D11), color2 LED (D12), melody
IC (U32), and battery holder (B3): Place batteries in holder. Place the lamp directly across the
battery holder, it should light. Place the LEDs (D8, D9, D11, & D12) directly across the battery
holder one at a time (LED + to battery +), the LED should light (D8 should change colors, D11
should be blinking, and D12 should slowly change colors). Place the melody IC directly across
the battery holder (+ to +), it should play a tune. If none work, then replace your batteries and
repeat, if still bad then the battery holder is damaged.

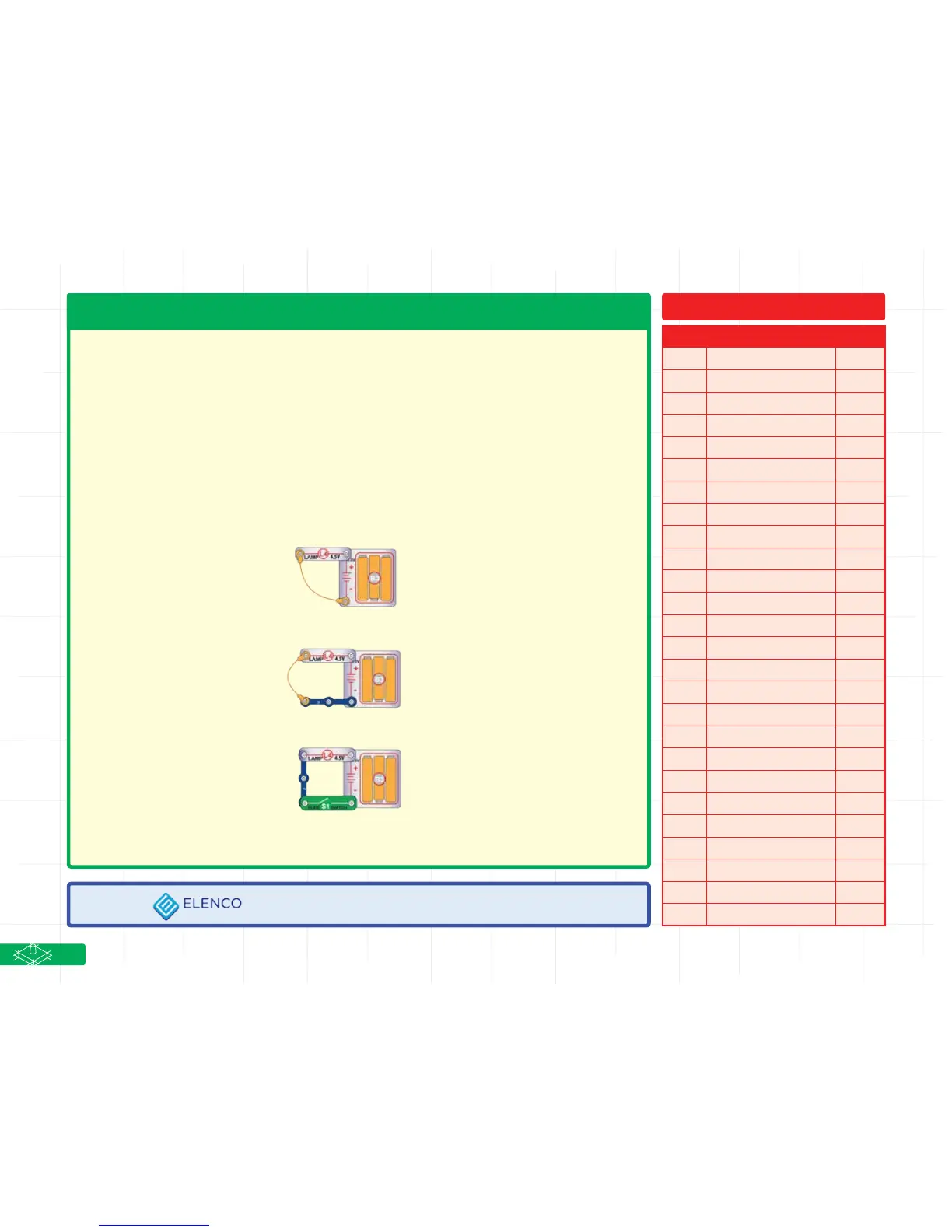

3. Jumper wires (blue and orange): Use this mini-circuit to test each jumper wire, the lamp
should light.
5. 3-snap wires: Use this mini-circuit to test each of the 3-snap wires. The lamp should light.
6. Slide switch (S1): Build this mini-circuit; if the lamp doesn’t light then the slide switch is bad.
You may order additional / replacement parts at:
www.elenco.com/replacement-parts
7
Phone: (847) 541-3800 | E-mail: help@elenco.com
Project Description Page
1 Start Circuit 9-10
2 5 Lights and a Melody 11
3 4 Lights and Clicking 12
4 Light Post 13-14
5 Directional Lights 15
6 Cross of Lights 16-17
7 Bric Tower 18-21
8 Bric Bridge 22-24
9 House of Lights 25-26
10 Bric Mammal 27-28
11 Leds in Series & Parallel 29
12 Bric Building 30-31
13 Tri-Level House 32-34
14 Elevated Circuit 35
15 Bi-Level Circuit 36
16 Overhead Light 37-38
17 3 Shine Out 39-40
18 Light House 41-42
19 Four Fun 43
20 Four Further Fun 44
21 Bric Elevation 45-46
22 Bric House 47-49
23 Diagonal Circuit 50
24 Wall of Lights 51
25 Your Wall of Lights 52
26 2 Story House 53-55
