The BK8000 will accept a Micro SD card (not sup-
plied) for storage of pictures or video. To use, ensure
that the BK8000 is switched off and carefully insert
the card fully into the BK8000 as shown (Figure 20) :

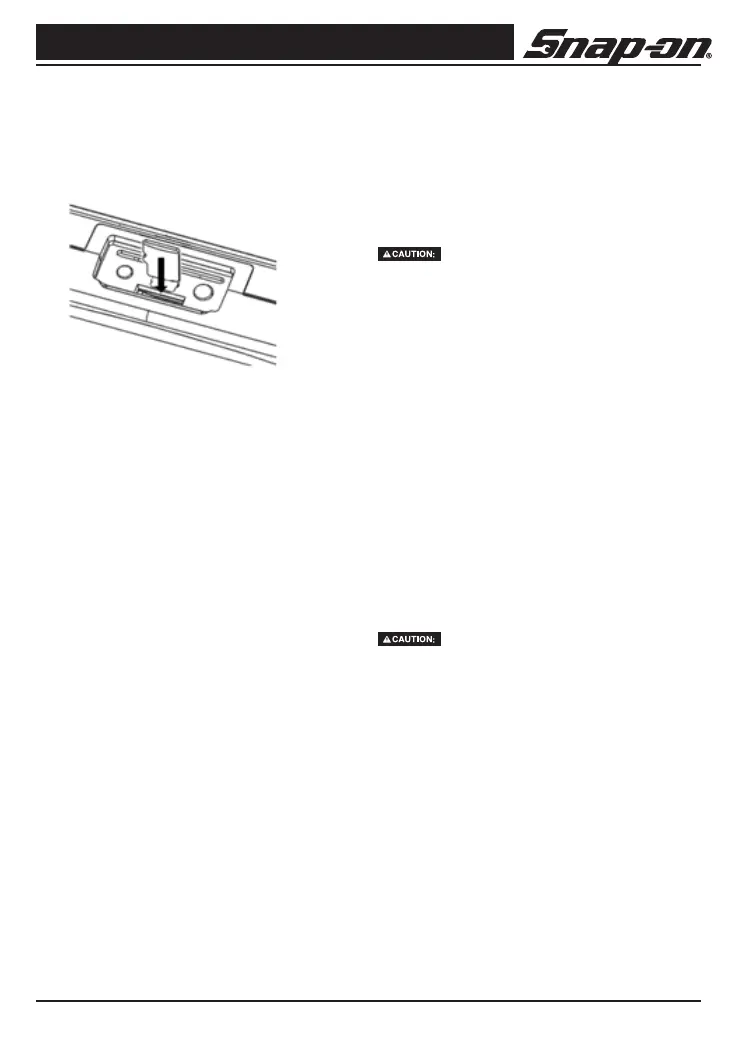

Figure 20: Installing an SD Card
Video Out
The BK8000 can direct the viewer display to an
external NTSC/PAL video display. To use this
feature, a standard 3.5mm jack plug to RCA plug
cable is required. Fully insert the 3.5mm jack plug
into the BK8000 video-out connector and connect
the phone plug to the desired video display device.
Inserting the 3.5mm jack plug disables the BK8000
LCD display and touchscreen.
Image Transfer to Computer using USB
The BK8000 can be connected to a PC to transfer
image and video files using the supplied USB cable;
insert the small connector into the BK8000 and the
larger end into a computer. Depending on the oper-
ating system , the computer may inform the user that
a device is attached. The view unit LCD screen will
shut off while attached to the computer.
The BK8000 will appear as an external drive to the
user allowing pictures and videos to be transferred
to and from the BK8000. Note that if a Micro SD
card is inserted, only those files on the Micro SD
card will be available.
For Still images with audio captions, two files must
be transferred to the same folder. These files will
have a common filename with the following two ex-
tensions: .avi .jpg
Note that the BK8000 will not charge through the
USB connector.
Transportation & Storage
1. Avoid exposing the unit to continuous vi bration
or extreme hot and cold temper atures.
2. Always store the visual inspection device
in doors in the case it came with.
3. Always remove the batteries if the unit will not
be used for an extended period of time.
Maintenance Instructions
Make sure the batteries have been re-
moved from the unit before performing maintenance.
The Snap-on visual inspection device has been
designed to require little maintenance. However, in
order to maintain its performance, you must al ways
follow these guidelines:
1. Always handle the device with care. It is not
shock-resistant and should not be banged or
dropped. Treat it as you would any other sensi-
tive optical device.
2. Always clean the imager head after use with
soap or mild detergent.
3. Use only alcohol swabs to clean the con-
nections.
4. Avoid rubbing too hard on the LCD. After use,
wipe the display clean gently with a dry cloth.
5. Do not disassemble this device beyond what
is shown in the manual. Doing so will void your
warranty.
Service and Repair
Tool should be returned to the appropri-
ate repair center locations (see "Snap-on Service
Center Locations" on page 19). All repairs made
by Snap-on service facil ities are warranted against
defects in material and workmanship.
If you have any questions regarding the service or
repair of this machine, please call or write to one of
the eight service centers (see "Snap-on Service
Center Locations" on page 19) that is most con-
venient to your geographic location. Web site: buy1.
snapon.com/snaponstore/customer.asp
User serviceable repair parts
BK8000-1 36" long, 8.5mm diameter,
9-pin dual view imager
BK8000-4 Blow Molded Case
BK8000-5 Magnet Retrieval tool
BK8000-6 External Power Supply with
international adapters
BK5500-8 Composite Video Out Cable
BK6000-12 USB Cable
