Snapper 1 Series Parts Manual

15

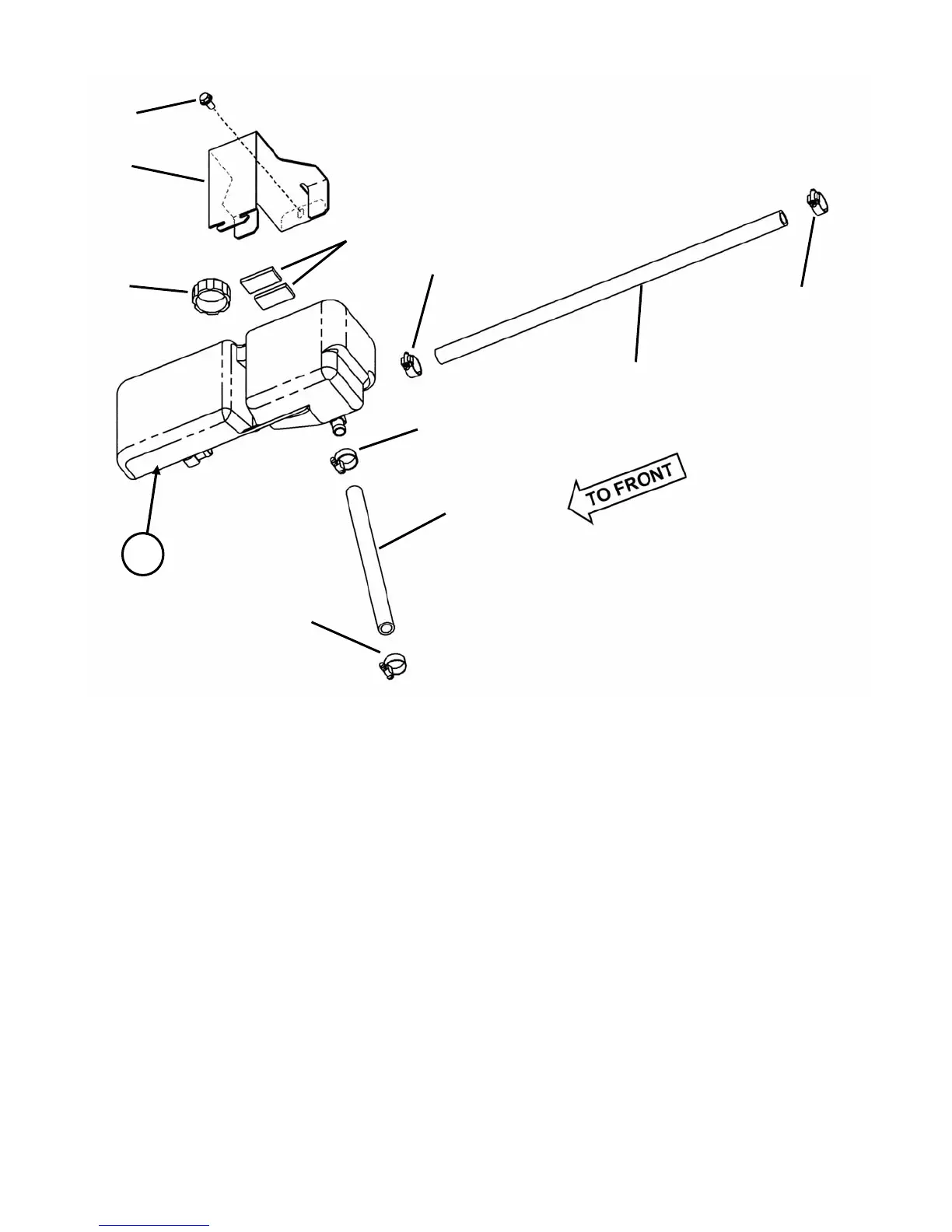

HYDRO RESERVOIR ASSEMBLY (right hand)
ITEM PART NO. DESCRIPTION
11 5-4521 RESERVOIR, (R.H.) Hydro (Includes cap, item 2)
12 4-4789 HOSE, Rubber 5/8” I.D. 32” Long
13 4-4787 HOSE, Rubber 5/8” I.D. 12” Long
14 4-4791 BRACKET, Tank, (Right Hand)
15 9-1523 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap
16 7-7345 PAD, Gas Tank (2)
MID-MOUNT Z-RIDER MANUAL No. 06110
VIEWED FROM
UNDERNEATH
11 ASSEMBLY
3
3
16
15
14
13
12
3
3
2
