Snapper 1 Series Parts Manual

16

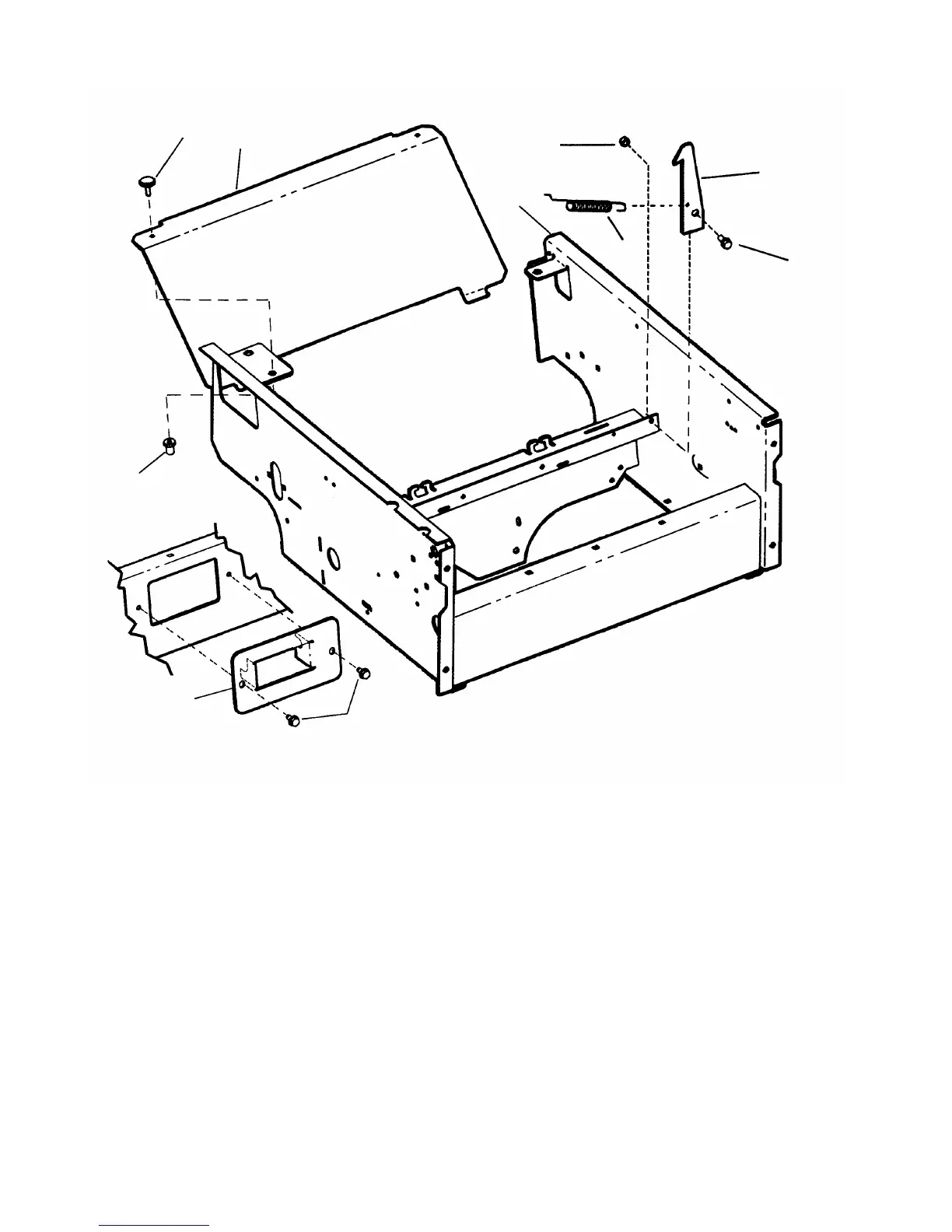

UPPER CHASSIS AND SEAT LATCH ASSEMBLY
ITEM PART NO. DESCRIPTION
1 4-2946 UPPER CHASSIS (Models MZM2200K, ZM2501KH, ZM2502KH)
-- 7-1940 UPPER CHASSIS (Models ZMT2500KH & ZMT2501KH) (not shown)
2 9-1298 NUT, 5/16-18 Hex Nyloc
3 3-5993 LATCH, Seat Support
-- 7-2106 LATCH, Seat Support (MZM2300K, ZMT2500KH, ZM2501KH ZM2502KH)
4 9-1800 BOLT, 5/16-18 Shoulder, Hex Head, Nylon Patch
5 2-6292 SPRING
6 4-4769 SCREEN, Drivetrain
7 2-3341 SCREW, 1/4-20 x 3/4” Thumb (2)
8 9-1909 WELL-NUT, 1/4-20 x 53/64” (2)
9 7-2111 PLATE, Trim (Model ZMT2500KH Only)
10 9-0361 SCREW, 5/16-18 x 5/8” Self Tapping (2)
MANUAL No. 06110 MID MOUNT Z-RIDER
7
6
4
3
1
5
2
8
9
10
