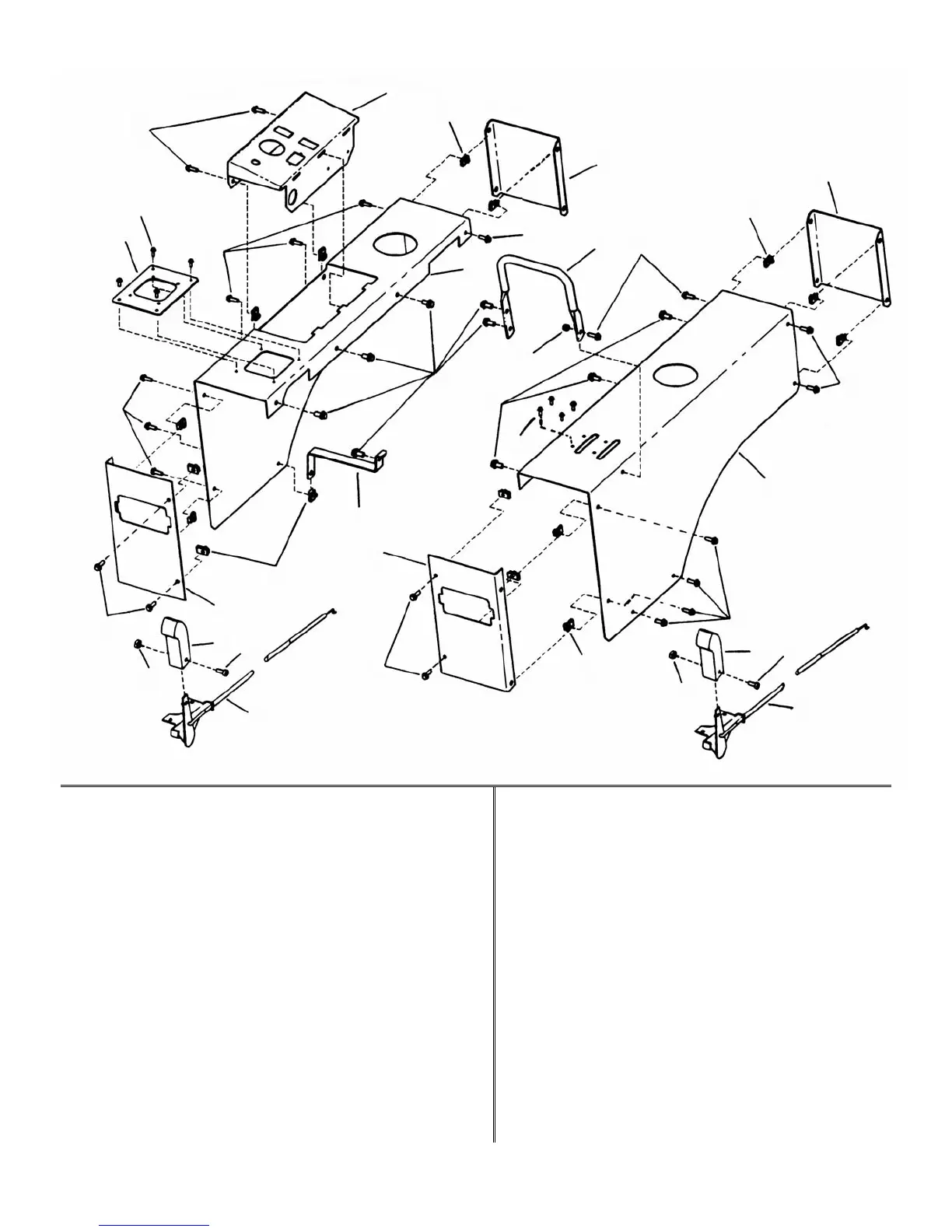

FENDER/CONTROL CABLE ASSEMBLY
ITEM PART NO. DESCRIPTION
1 3-5548 HANDLE, 5/8” Tubing
2 3-5940 PLATE, Joystick Control
(shown)
-- 7-2043 COVER, Joystick Hole (Model
ZMT2500KH Only)
3 4-2984 FENDER, Right Hand
-- 4-6407 FENDER, Right Hand (MZM
Models Only)
4 4-2985 FENDER, Left Hand
-- 4-7006 FENDER, Left Hand (MZM
Models Only)
5 4-2986 BRACKET, R. H. Headlight
-- 4-6420 BRACKET, Right Hand (MZM
Models Only)
6 4-2987 BRACKET, L. H. Headlight
-- 4-6421 BRACKET, Left Hand (MZM
Models Only)
7 4-3898 BRACKET, Fender Brace
8 4-4700 BRACKET, Rear Fender (2)
ITEM PART NO. DESCRIPTION
9 4-4820 BRACKET, Instrument Panel
(shown)
-- 4-6863 BRACKET, Instrument Panel
(MZM Models Only)
10 9-0913 SCREW, #10-24 x 1/2” Hex
Washer Self-Tap Torx (8)
11 9-1523 SCREW, 5/16-18 x 5/8” Hex
Washer Self-Tapping (9)
12 9-1603 NUT, 1/4-20 Hex Nyloc
13 9-1906 SCREW, 1/4-20 x 3/4” Hex
Cap Grade 5 (21)
14 2-3295 U-NUT, 1/4-20 Lock, (16)
15 3-5837 CABLE, Choke, Kohler
16 3-5838 CABLE, Throttle, Kohler
17 2-3655 LEVER, Throttle Control (2)
18 9-1017 SCREW, #8-32 x 3/8” Curved
Machine (2)
19 9-1018 NUT, #8-32 Hex (2)
MANUAL No. 06110 MID MOUNT Z-RIDER
