Snapper 1 Series Parts Manual

14

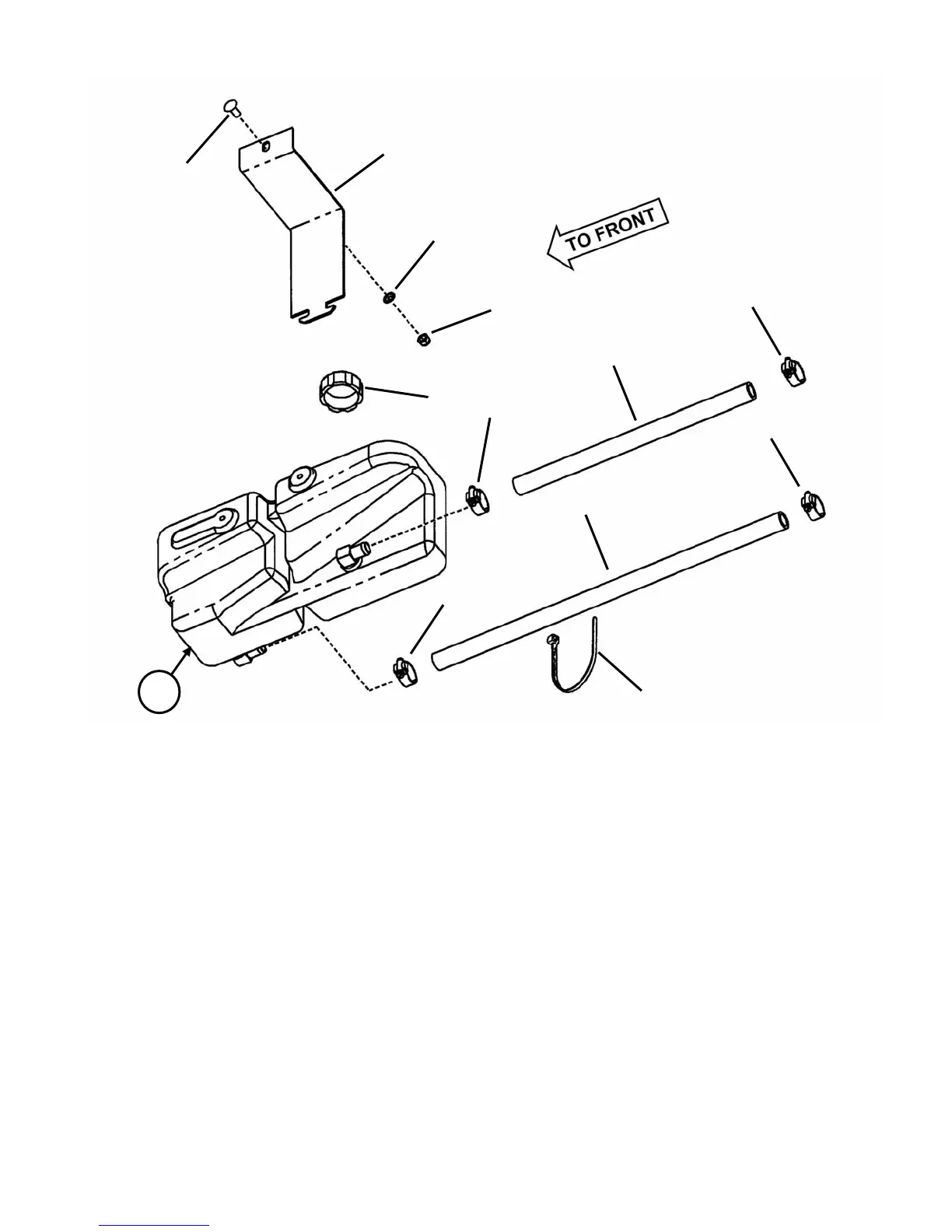

HYDRO RESERVOIR ASSEMBLY (left hand)
ITEM PART NO. DESCRIPTION
1 5-4103 RESERVOIR, L. H. Hydro (includes cap, item 2)
2 3-5512 CAP, Reservoir
3 1-6130 CLAMP, for 13/16” Hose (8)
4 3-5514 HOSE, Rubber 5/8 I. D. x 13-1/2” long
5 4-4788 HOSE, Rubber 5/8” I. D. x 20” long
6 4-4790 BRACKET, Tank L. H.
7 9-1508 BOLT, 5/16-18 x 3/4” Short Neck Carriage, Grade 5
8 1-1791 RETAINER, 5/16” Bolt
9 9-1298 NUT, 5/16-18 Hex Nyloc
10 1-2080 CABLE TIE, 7” long
MANUAL No. 06110 MID-MOUNT Z-RIDER
VIEWED FROM
UNDERNEATH
9
6
7
2
5
4
3
3
3
3
8
1 ASSEMBLY
10
