Snapper 1 Series Parts Manual

46

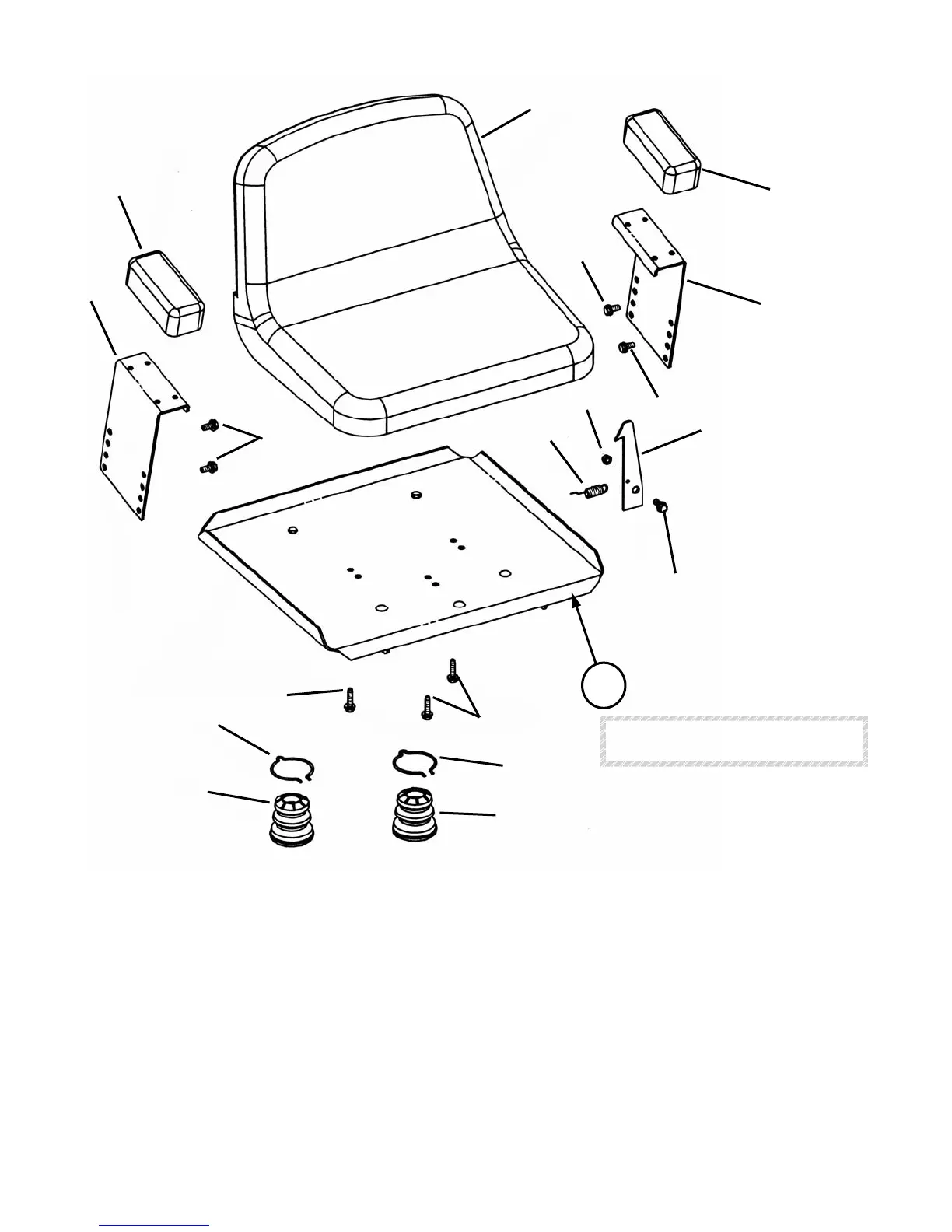

SEAT ASSEMBLY (MZM Models)
ITEM PART NO. DESCRIPTION
1 4-7036 ASSEMBLY, Seat Support
2 4-4897 SEAT, Milco High Back
3 7-2401 BRACKET, Armrest (Painted) (2)
4 4-4855 ARM REST (2)
5 9-1523 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap (4)
6 7-2106 LATCH, Seat Support
7 9-1800 BOLT, 5/16-18 Shoulder w/ Nylon Patch
8 9-1298 NUT, 5/16-18 Nyloc
9 2-6292 SPRING, Extension
10 1-9348 CLIP, Seat Cushion (2)
11 1-9109 COVER, Spring (Rubber) (2)
12 9-1151 SCREW, 5/16-18 x 1-1/4” Hex Washer Self-Tap (3)
13 9-1296 WASHER, 11/32 I.D. x 11/16 O.D. (2)
MANUAL No. 06110 MID MOUNT Z-RIDER
11
2
ASSEMBLY (for components
See Seat Support Assembly pages)
3
5
5
3
4
4
11
10
12
9
8
7
6
5
1
12
10
