Snapper 1 Series Parts Manual

54

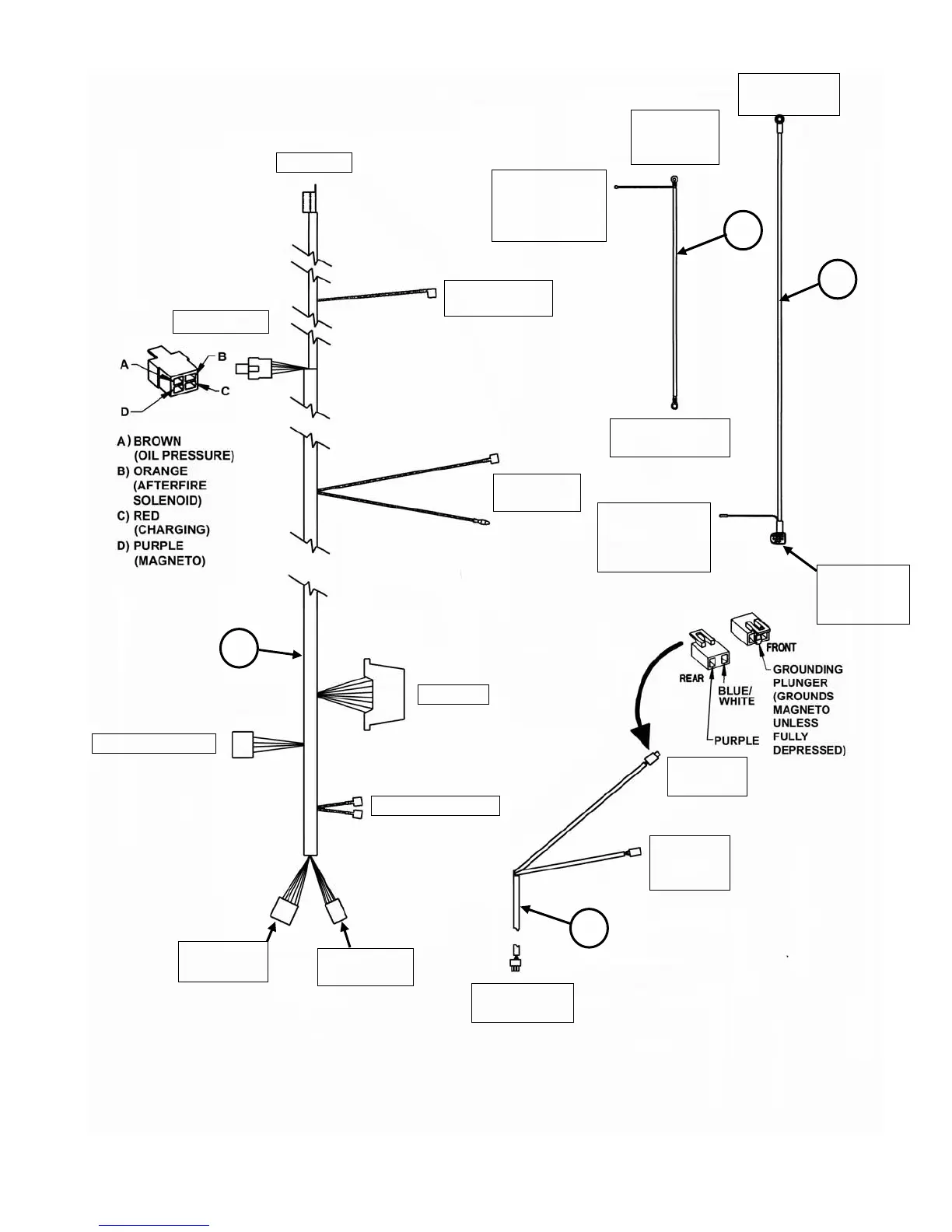

WIRING HARNESS
(MZM Models)
ITEM PART NO. DESCRIPTION
1 4-6423 HARNESS, Control Panel
2 4-6422 HARNESS, Front
3 3-5607 CABLE, Battery- Positive (6 Ga., 47”)
4 3-5609 CABLE, Battery- Negative (6 Ga., 38”)
MANUAL No. 06110 MID MOUNT Z-RIDER
1
3
4
TO GROUND
(ENGINE BASE)
TO CONTROL
PANEL
HARNESS
(GREEN WIRE)
TO NEG.
BATTERY
TERMINAL
TO POS.
BATTERY
TERMINAL
TO CONTROL
PANEL
HARNESS
(BLACK WIRE)
TO STARTER
SOLENOID
TO CONSOLE
HARNESS
TO PARK
BRAKE
SWITCH
TO SEAT
SWITCH
TO PTO
TO ENGINE
TO
BATTERY
TO PTO SWITCH
TO HOUR METER
FUSES
TO STARTER
SOLENOID
TO IGNITION
SWITCH
TO FRONT
HARNESS
2
