Page #53 background imageLoading...
Page #53 background image
53

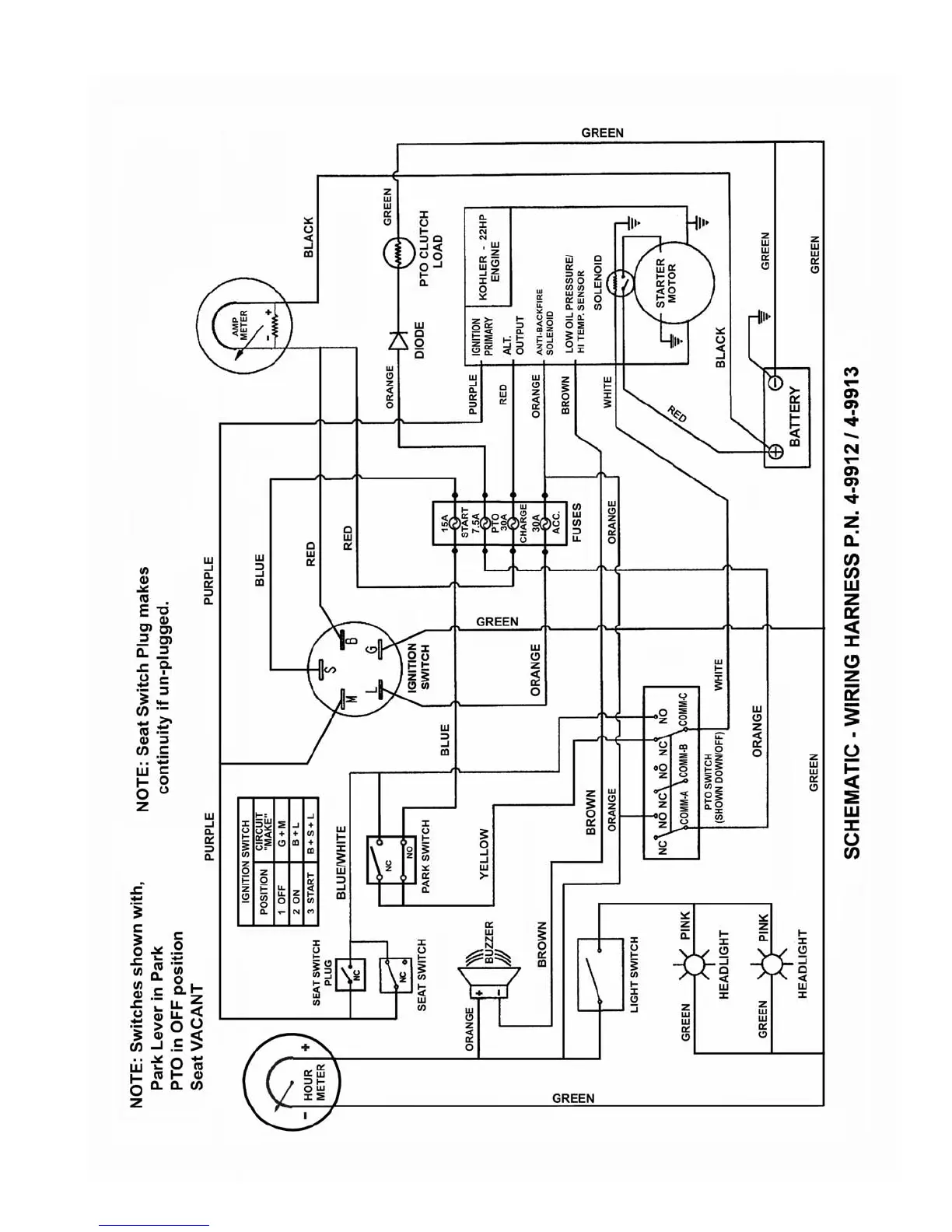

WIRING SCHEMATIC
(Non-MZM Models)
MID MOUNT Z-RIDER MANUAL No. 06110
