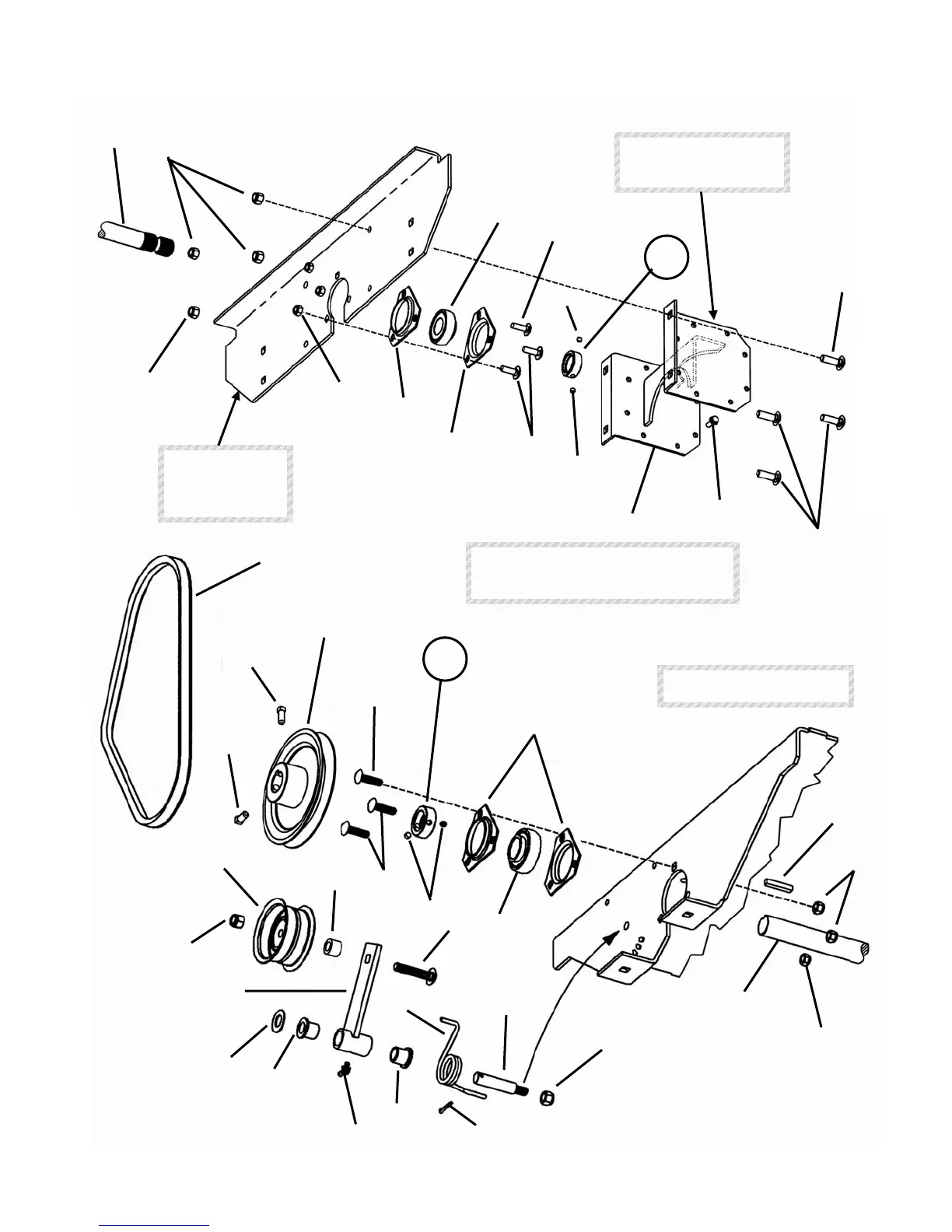

34
DECK DRIVESHA
FT ASSEMBLY
(MZM
M
odels)
MANUA
L No. 06110
MID M
OUNT
Z-RIDER
7
14
14
18
18
4
26
26
16
17
17
6
18
15
8
23
23
22
12
MOUNTS TO LO
WE
R
FRA
ME M
IDDL
E BRA
CE
SEE NEXT PA
GE
25
MOUNTS TO ENGI
NE BA
SE
SEE NEXT PA
GE
15
18
25
16
6
14
1
5
4
26
16
17
21
13
2
3
24
11
3
20
19
10
9
COMPONE
NT OF
LOWER FRA
M
E
WEL
DME
N
T
SEE NEXT PA
GE
NOT
E: ITEM 12 A
LSO MOUN
TS
TO LEFT
& RIGHT T
RA
NSA
XLES
SEE PA
GES 8 T
HRU 11
33
35
Table of Contents
Table of Contents
2
Drive Tire/Wheel Assembly
3
Engine Sub-Assembly
4
Fuel Tank Assembly
6
Fuel Tank Assembly
7
TANDEM HYDRO TRANSAXLE ASS'Y (Models ZM2200K, ZM2500KH)
8
TANDEM HYDRO TRANSAXLE ASS'Y (All Models Except ZM2200K, ZM2500KH)
10
Footrest Assembly
12
Footrest Assembly
13
Hydro Reservoir Assembly
14
Upper Chassis and Seat Latch Assembly
16
Caster Wheel Assembly
17
Lower Chassis/Caster Wheel Assembly
18
Lower Chassis/Caster Wheel Assembly
19
JOYSTICK CONTROL ASSEMBLY (All Except for ZMT2500KH)
20
TWIN STICK CONTROL ASSEMBLY (Model ZMT2500KH)
22
Parking Brake Assembly
24
Seat Support Assembly
26
Seat Support Assembly
27
Fender/Control Cable Assembly
28
Cutter Housing Assembly
29
Upper Drive Shaft Assembly
30
DECK DRIVESHAFT ASSEMBLY (All Except for MZM Models)
32
DECK DRIVESHAFT ASSEMBLY (MZM Models)
34
Deck Lift System
36
Deck Lift System
37
52" Deck, Idlers, Rollers
38
Deck, Idlers, Rollers
39
61" Deck, Idlers, Rollers
40
Deck, Idlers, Rollers
41
Chute, Deck Covers & Baffle
42
Chute, Deck Covers & Baffle
43
SEAT ASSEMBLY (All Except for MZM Models)
44
SEAT ASSEMBLY (MZM Models)
46
Traction Drive Idler Assembly
47
Decals
48
Decals
49
ELECTRICAL COMPONENTS (Except Wiring)
50
ELECTRICAL COMPONENTS (Except Wiring)
51
Wiring Harness
52
Wiring Schematics
53
Wiring Harness
54
