Snapper 1 Series

47

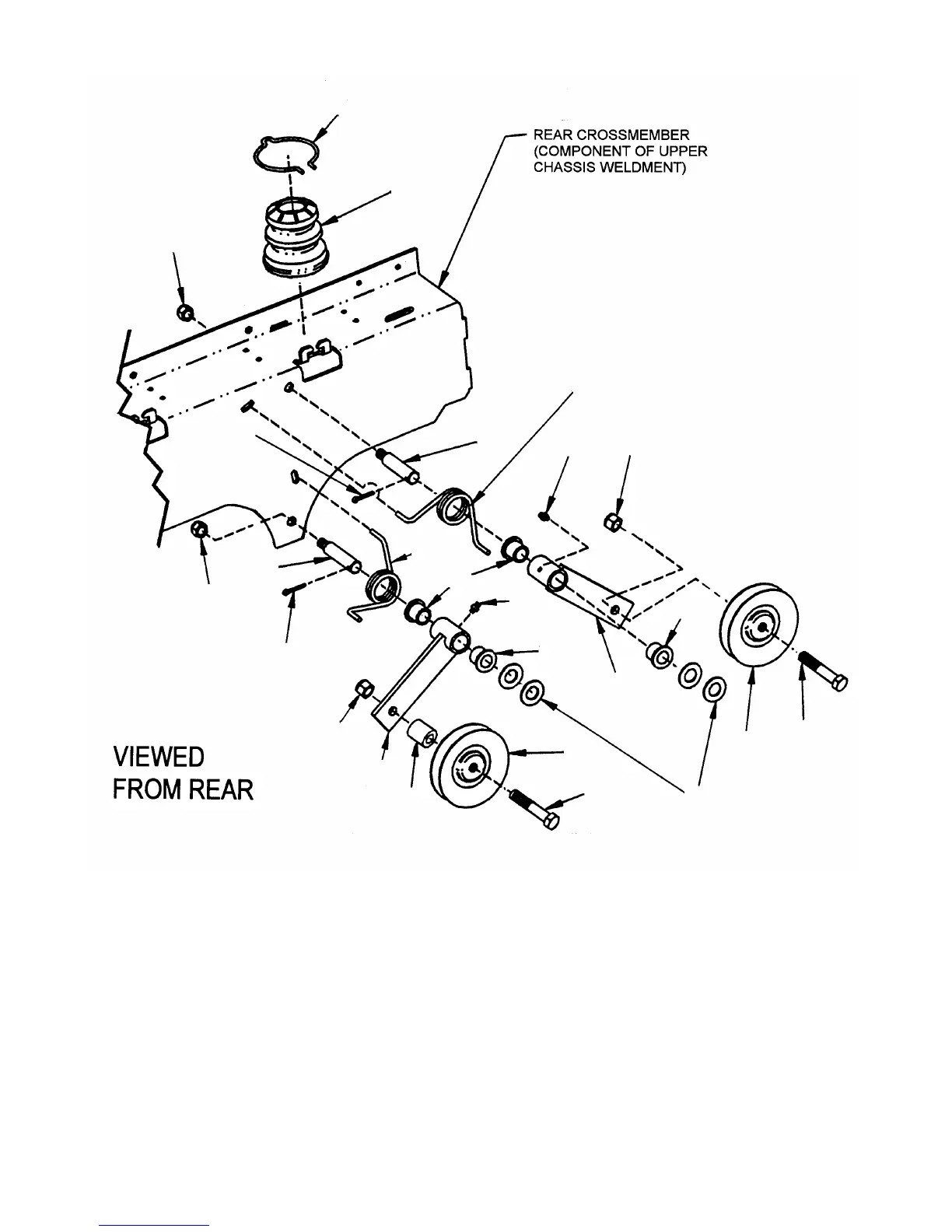

TRACTION DRIVE IDLER ASSEMBLY
ITEM PART NO. DESCRIPTION
1 1-3324 FITTING, 3/16 Lube (2)
2 1-4409 BUSHING, 9/16 I.D., 3/4” O.D. (4)
3 1-8573 PULLEY, Idler 3.48 O.D. (2)
4 1-9109 COVER, Spring (Rubber) (2)
5 1-9348 CLIP, Seat Cushion (2)
6 9-1804 WASHER, 9/16 Flat (Type B) (4)
7 4-4765 SPRING, Torsion
8 3-5812 SPACER, 3/8 I.D. 5/8 O.D. x 5/8” Long
9 3-5816 PIN, 3/8-24 (2)
10 4-2622 IDLER ARM (Weldment) (2)
11 9-1299 NUT, 3/8-16 Hex Nyloc (2)
12 9-1518 NUT, 3/8-24 Hex Nyloc (2)
13 9-1553 SCREW, 3/8-16 x 1-3/4” Hex Head Cap, Grade 5
14 9-1560 SCREW, 3/8-16 x 2-1/4” Hex Head Cap, Grade 5
15 9-1598 COTTER PIN, 1/8 x 3/4” (2)
16 4-4760 SPRING, Torsion
MID MOUNT Z-RIDER MANUAL No. 06110
3
16
15
9
12
11
1
7
9
15
12
4
5
8
10
11
13
3
6
2
10
2
1
2
14
