Snapper 1 Series

17

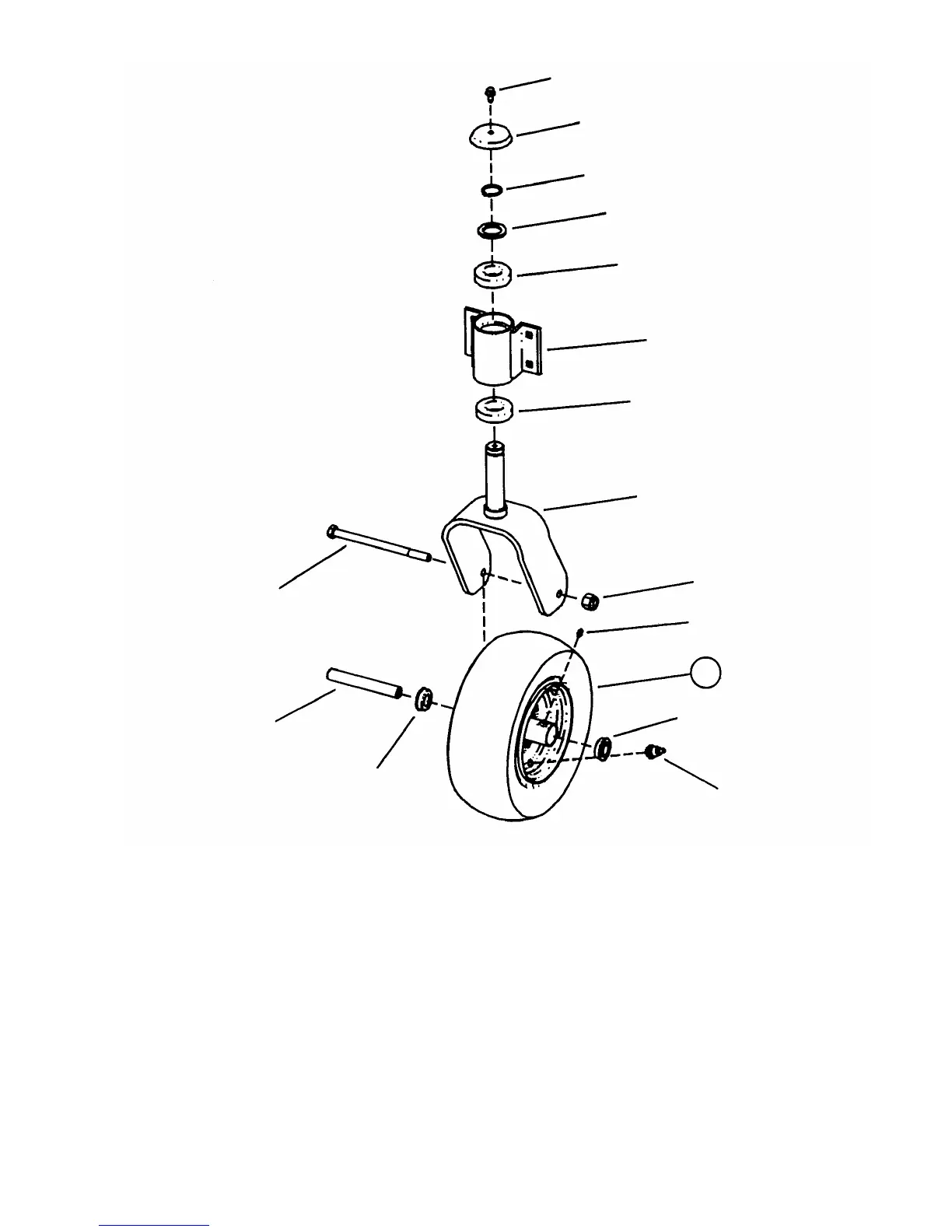

CASTER WHEEL ASSEMBLY
ITEM PART NO. DESCRIPTION
1 9-0361 SCREW, 5/16-18 x 5/8” Hex Flange Self Tap
2 3-6578 CAP, Caster Shaft
3 1-0965 RING, 1-3/16” External Retaining
4 9-1795 WASHER, 1-1/4” Flat
5 3-5602 BEARING, 30mm x 62mm (2)
6 4-2590 WELDMENT, Caster Support
-- 5-8760 WELDMENT, Caster Support (5 degree)
(used on model ZMT2500KH only)
7 4-2591 WELDMENT, Caster Yoke
8 9-1325 NUT, 1/2-13 Hex Nyloc
9 5-4087 ASSEMBLY, Tire & Rim (includes items 10 thru 12)
10 1-2700 FITTING, Lube
11 2-8722 BEARING (2)
12 1-2234 VALVE, Air
13 3-5476 SLEEVE, Axle
14 9-1773 SCREW, 1/2-13 x 7-1/4”, Grade 5
MID MOUNT Z-RIDER MANUAL No. 06110
9
12
13
14
11
10
8
7
5
6
5
4
3
2
1
11
