Page #55 background imageLoading...
Page #55 background image
55

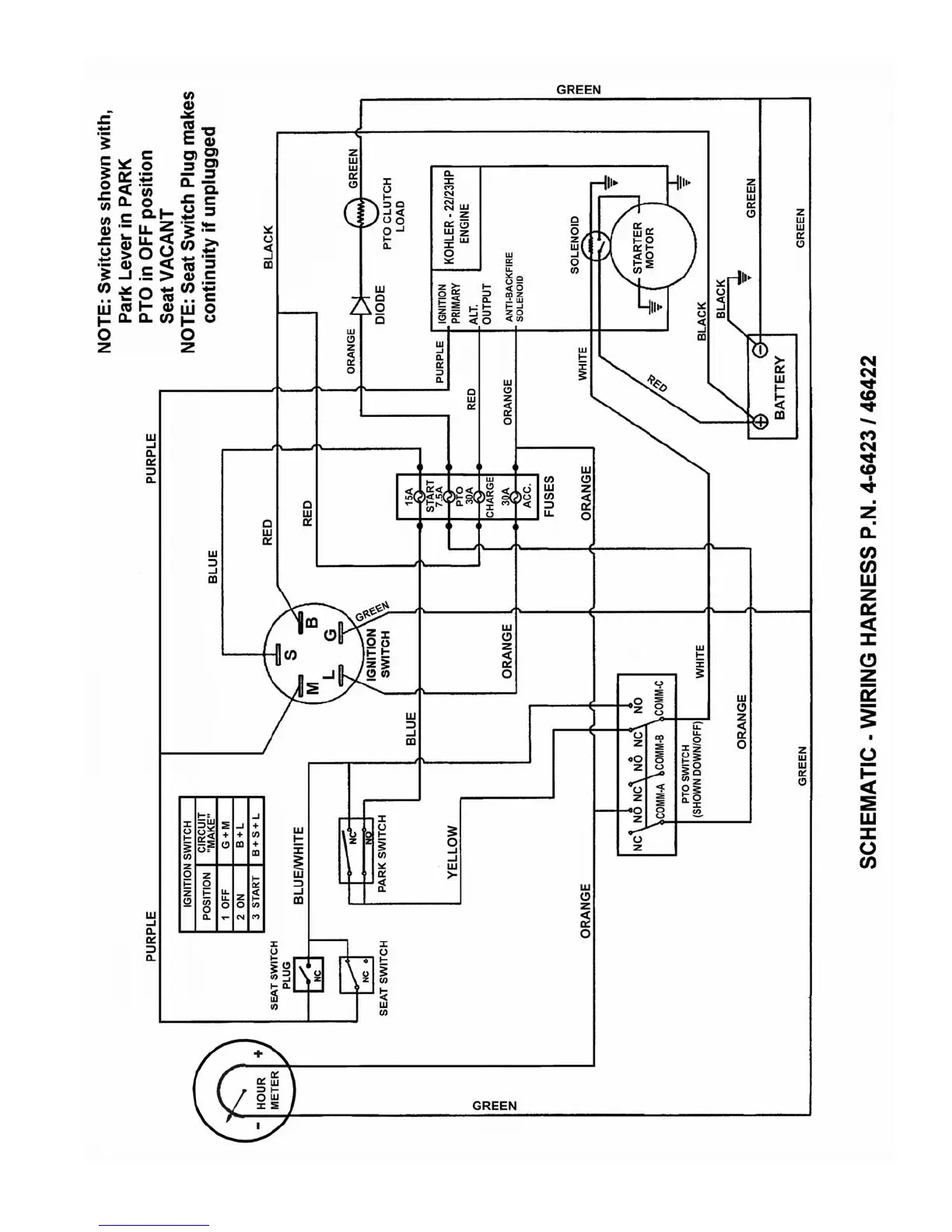

WIRING SCHEMATIC
(MZM Models)
MID MOUNT Z-RIDER MANUAL No. 06110
