Snorkel S3370RT - Emergency Bleed down Mounting, 24 VDC

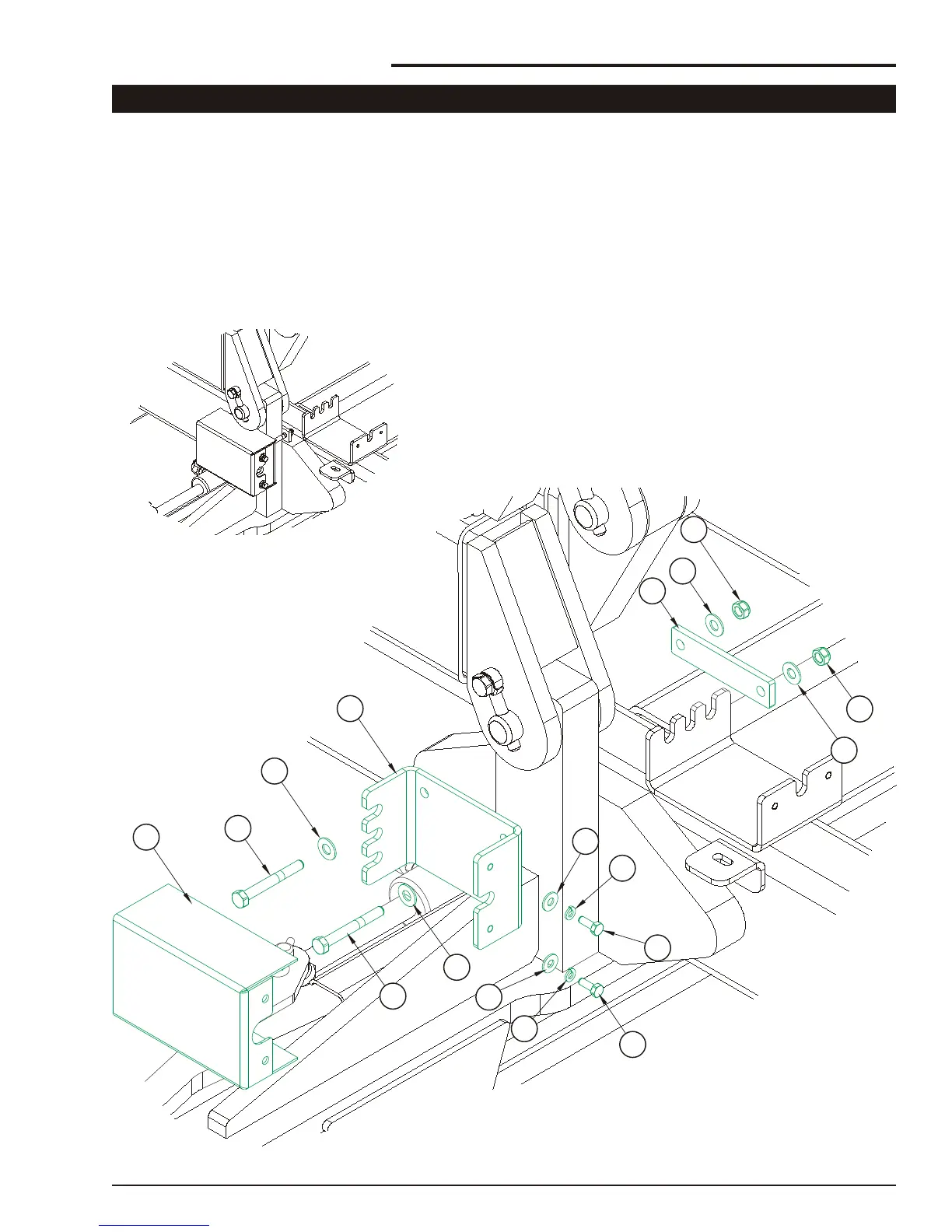

Emergency bleed down mounting, 24VDC
Item Part No Qty Description
1. 12818 1 Bleed down cover *
2. 3610-08065 2 Bolt, M16 x 65, C8.8
3. 3603-08 4 Washer, plain, M8
4. 13233 1 Bleed down bracket, bolt on
5. 13233-1 1 Bleed down bracket clamp
6. 3611-08 2 Nut, nylock, M8
7. 3610-06016 2 Bolt, M6 x 16, C8.8 *
8. 3603-06 2 Washer, plain, M6 *
9. 3605-06 2 Washer, spring, M *6
10. 12753 1 Decal, bleed down *
