Snorkel S3370RT - Scissor Stack Tees SR3370

Scissor stack tees SR3370
Item Part No. Qty Description
1. 13037 1 Adjustable flow control valve
2. 6991-004 1 Adapter, 3/8" BSTM -> 3/4" JICF
3. 7019-004 1 Adapter, 3/8" BSPTM -> 3/4" JICM
4. 6988-001 1 Tee, bulkhead run, 3/4" JICM
5. 6988-002 1 Tee, bulkhead run, 9/16" JICM
6. 3603-20 1 Washer, plain, M20 x 37, ZP
SR3370 & SR2770 – 13184B Rev D page 1 - 19

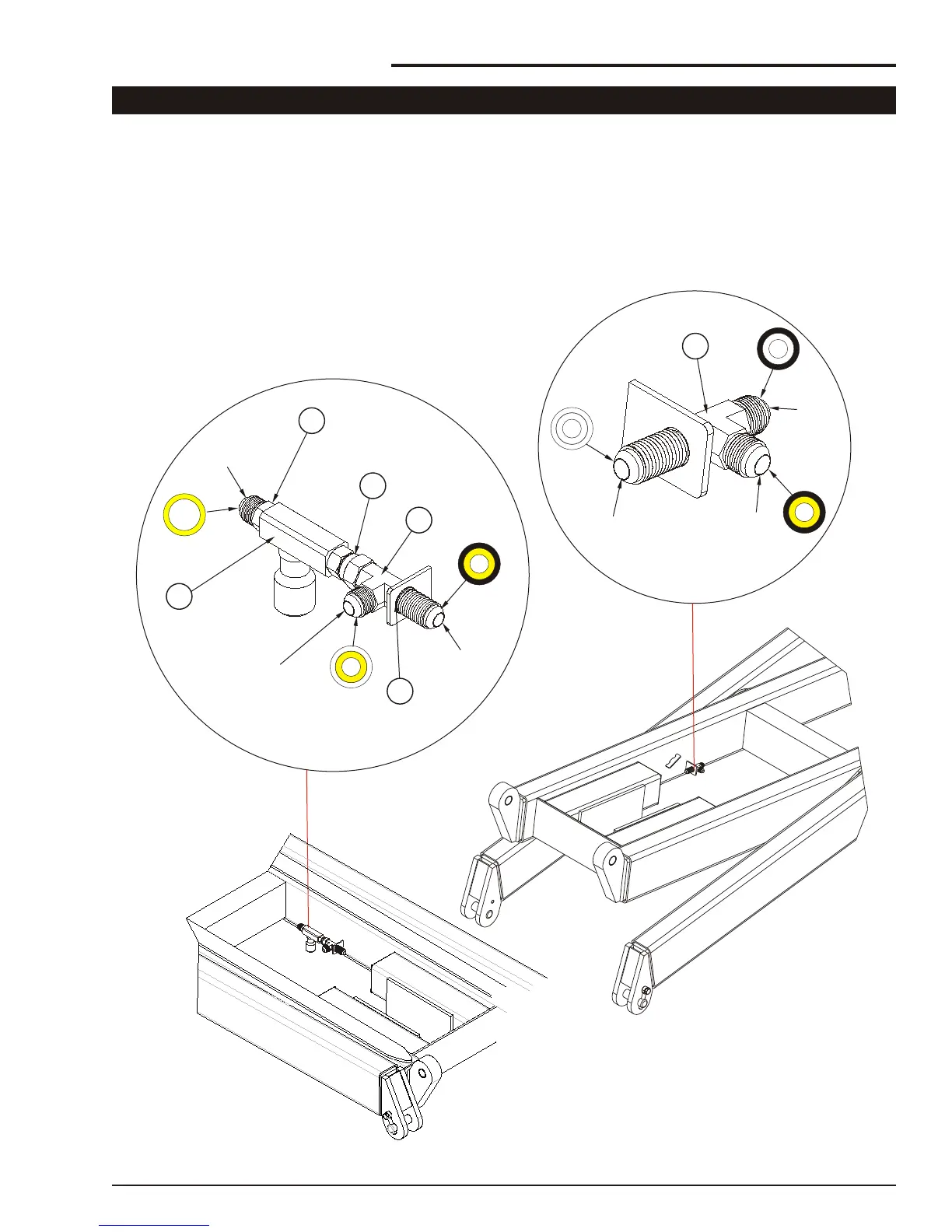

Scissor stack tees SR3370
5
4
6
2
1
3
Raise
Stack Pressure
Extend
Lower
Cylinder
Upper
Cylinder
Breather
Extend
Upper
Cylinder
Lower
Cylinder
Breather
Lift
Cylinder
Breather
