Snorkel S3370RT - Upper Control Box Mounting Assembly

Upper control box mounting assembly
Item Part No. Qty Description
1. 3603-06 4 Washer, plain, M6 x 16, ZP
2. 3605-06 2 Washer, spring, M6
3. 3610-06012 2 Bolt, metric, M6 x 12, C8.8, ZP
4. 3610-06020 2 Bolt, metric, M6 x 20, C8.8, ZP
5. 3611-06 2 Nut, nyloc, M6
6. 11690-16 2 Security pin
7. 12749 1 Wrist support
8. 12750-25 1 Plug, round
9. 12751 1 Hand grip, foam
10. 12756 1 Star washer with end cap
11. 72404 2 Grip clip
12. 12700 1 Control box
SR3370 & SR2770 – 13184B Rev D page 1 - 29

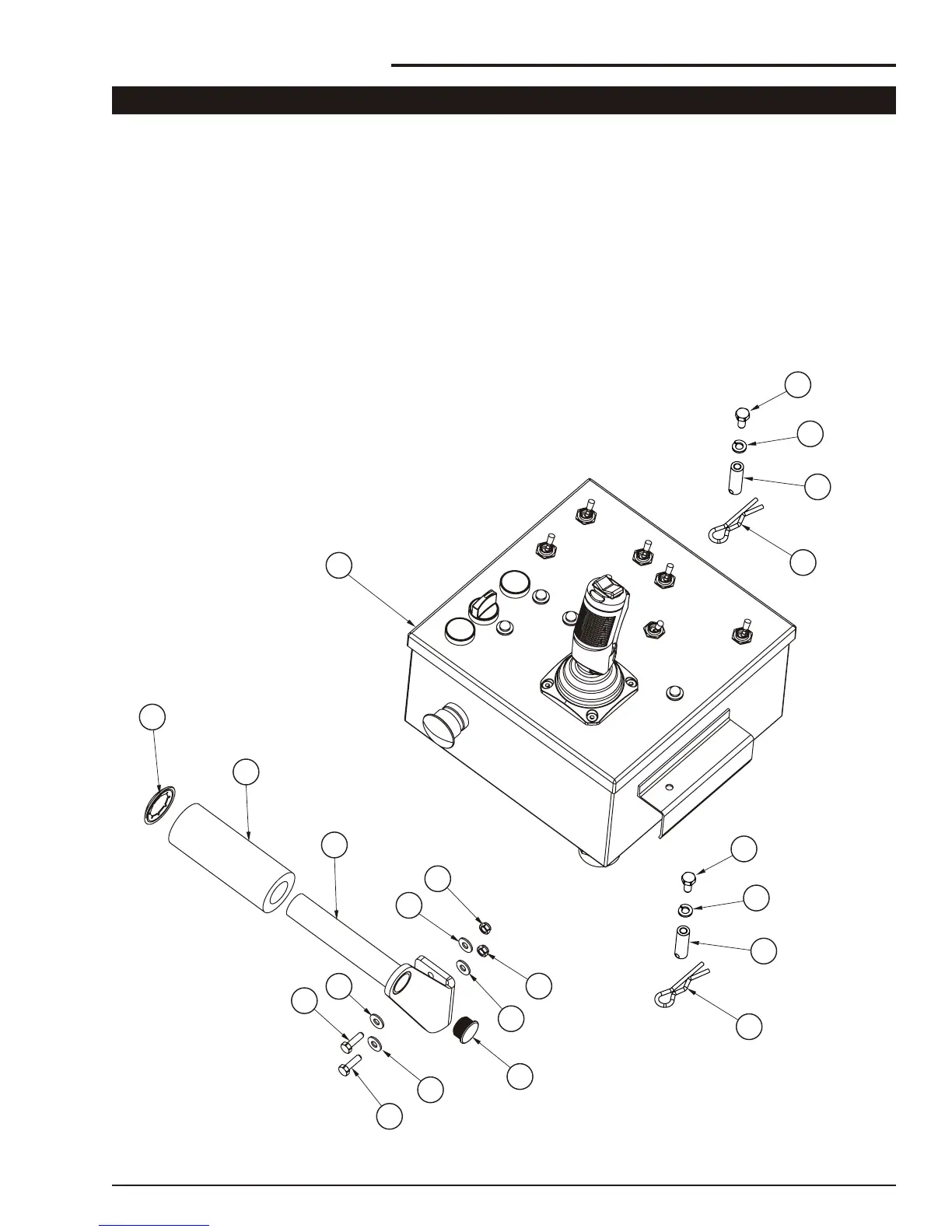

Upper control box mounting assembly
1
1
1
1
9
3
11
5
5
7
2
10
4
4
12
6
8
3
11
2
6
