Snorkel S3370RT - Main Lift Cylinder Assembly

Main lift cylinder assembly
Item Part No Qty Description
1. 3603-06 2 Washer, plain, M6 x 16, ZP
2. 3605-06 2 Washer, spring, M6
3. 3610-06012 2 Bolt, M16 x 12, C8.8, ZP
4. 7031-001 1 Adaptor, elbow 90
O
9/16 JICM -> 9/16 UNO
5. 7035-001 1 Plug
6. 12770-340808 1 Adaptor, elbow 45
O
1/12 UNO -> 1/2 STC F
7. 11687 1 SR lift cylinder
8. 56112-6 6 Bushing
9. 6010833 1 Valve, cartridge, adjustable
10. 6018024 1 Solenoid valve, 2 way, normally closed
11. 12752A 1 Cylinder bleed down bracket assembly
12. 12677 1 Coil
11687K 1 Seal kit
page 2 - 14 Rev D SR3370 & SR2770 – 13184B

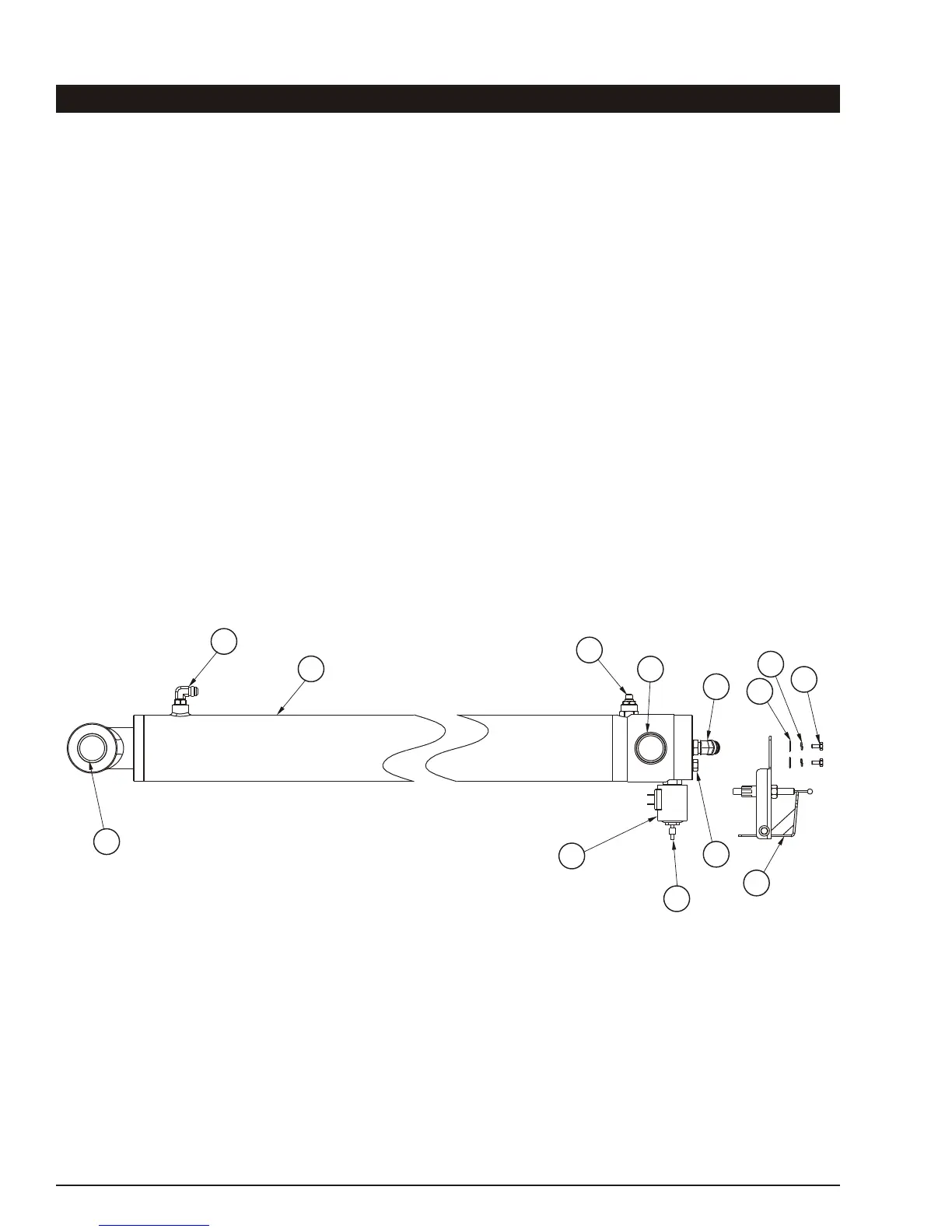

Main lift cylinder assembly
1
9
3
11
5
7
2
10
4
12
6
8
8
