Page 6 - 11TL49J

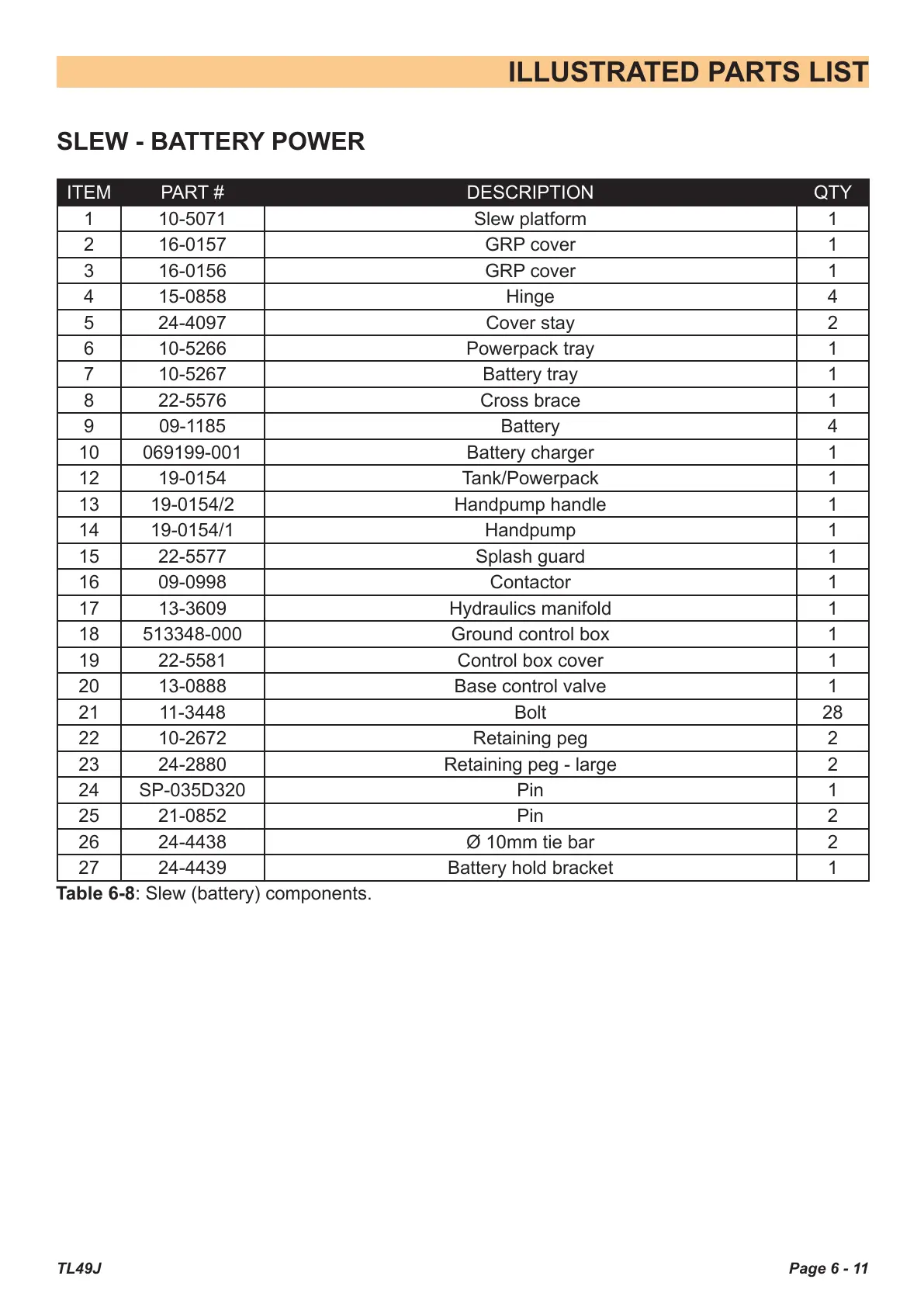

ILLUSTRATED PARTS LIST
SLEW - BATTERY POWER
ITEM PART # DESCRIPTION QTY
1 10-5071 Slew platform 1
2 16-0157 GRP cover 1
3 16-0156 GRP cover 1
4 15-0858 Hinge 4
5 24-4097 Cover stay 2
6 10-5266 Powerpack tray 1
7 10-5267 Battery tray 1
8 22-5576 Cross brace 1
9 09-1185 Battery 4
10 069199-001 Battery charger 1
12 19-0154 Tank/Powerpack 1
13 19-0154/2 Handpump handle 1
14 19-0154/1 Handpump 1
15 22-5577 Splash guard 1
16 09-0998 Contactor 1
17 13-3609 Hydraulics manifold 1
18 513348-000 Ground control box 1
19 22-5581 Control box cover 1
20 13-0888 Base control valve 1
21 11-3448 Bolt 28
22 10-2672 Retaining peg 2
23 24-2880 Retaining peg - large 2
24 SP-035D320 Pin 1
25 21-0852 Pin 2
26 24-4438 Ø 10mm tie bar 2
27 24-4439 Battery hold bracket 1
Table 6-8: Slew (battery) components.
