Page 6 - 27TL49J
ILLUSTRATED PARTS LIST
TELESCOPIC RAM
ITEM PART # DESCRIPTION QTY
1 13-3605-1 Tube assembly 1
2 13-3605-3 Seal kit 1
3 13-3605-4 Head bush 1
4 13-0472 Over-centre valve 1
5 13-0659 PO check valve 1
6 13-3605-5 Piston 1
7 13-3605-6 Locknut 1
8 13-3605- Spacer 1
9 13-3605-2 Rod assembly 1

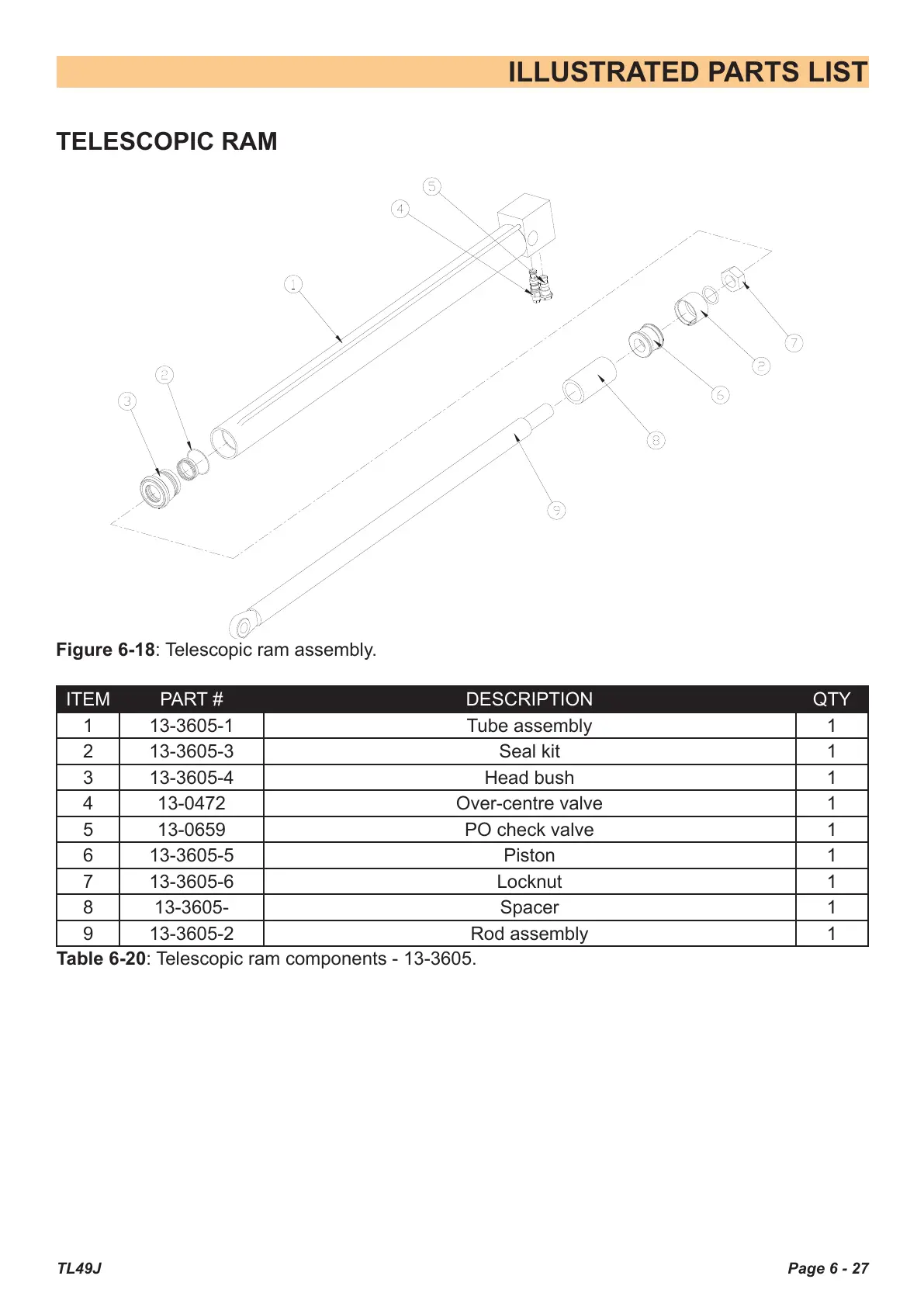

Figure 6-18: Telescopic ram assembly.
Table 6-20: Telescopic ram components - 13-3605.
