Snorkel TL49J User Manual

Page 6 - 31TL49J
ILLUSTRATED PARTS LIST
TRAILER ELECTRIC KIT PARTS
STANDARD LOWER CONTROL PANEL
L
T
10
24
25 33
2827 27 27 27
30
31 31 31 31 31
32
34
38
7
98
12
13
14
15
16
A
B
C
D
E
F
G
H
I
J
K
L
1
6
5
23
4
3
2
19
20 21
17
18
29
11
24

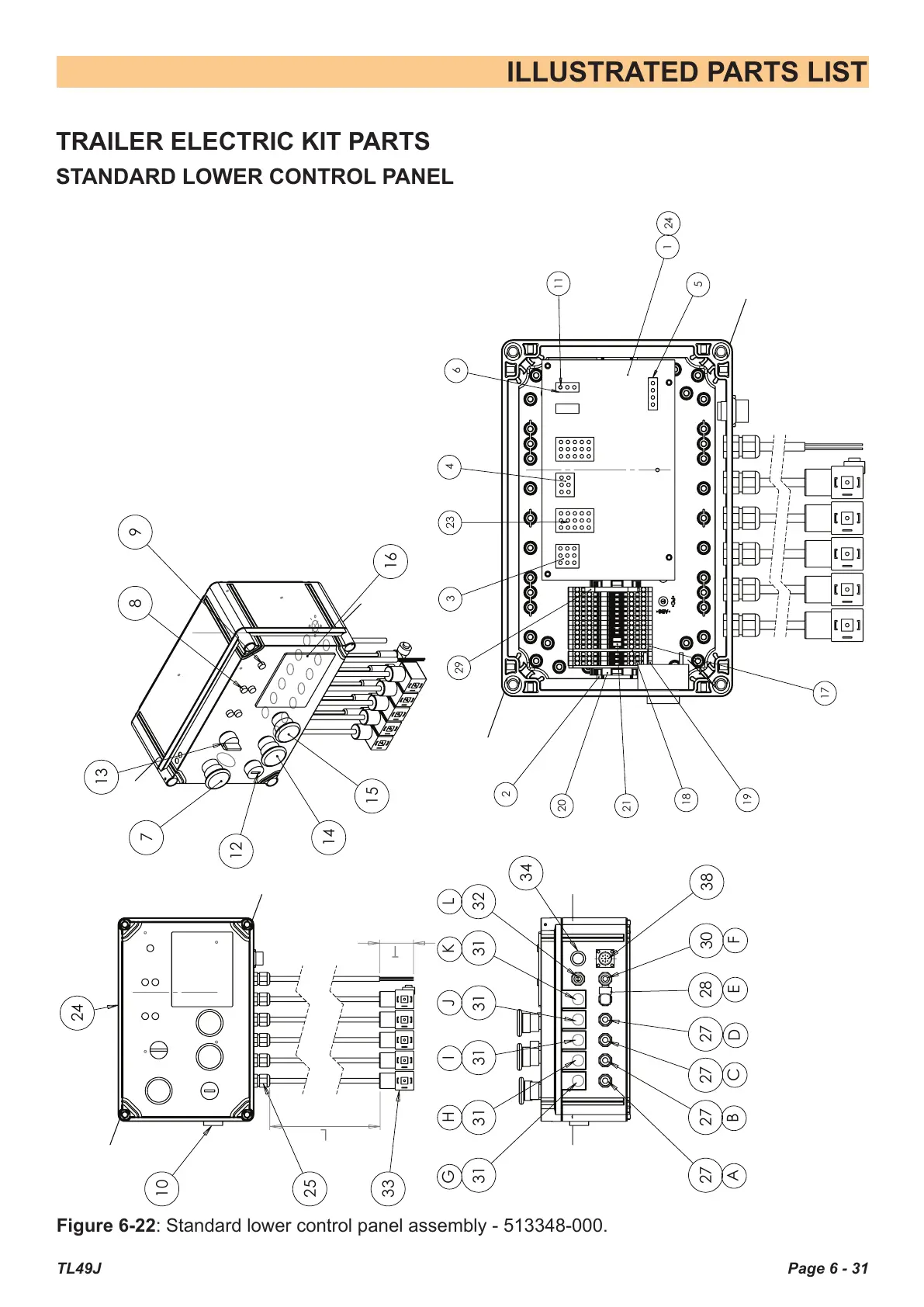

Figure 6-22: Standard lower control panel assembly - 513348-000.
