Page 6 - 25TL49J
ILLUSTRATED PARTS LIST
TOP RAM
ITEM PART # DESCRIPTION QTY
1 13-3606-1 Tube assembly 1
2 13-0972 Seal kit 1
3 13-0968 Head Bush 1
4 13-0392 Over-centre valve 1
5 13-2474/2 Emergency lower valve 1
6 09-2090 Solenoid 1
7 13-2425/77 Hirschmann 1
8 13-0973 Locknut 1
9 13-0971 Piston 1
10 SS-0500037 Spacer 1
11 13-3606-2 Rod 1
12 13-3606-3 Bearing 1

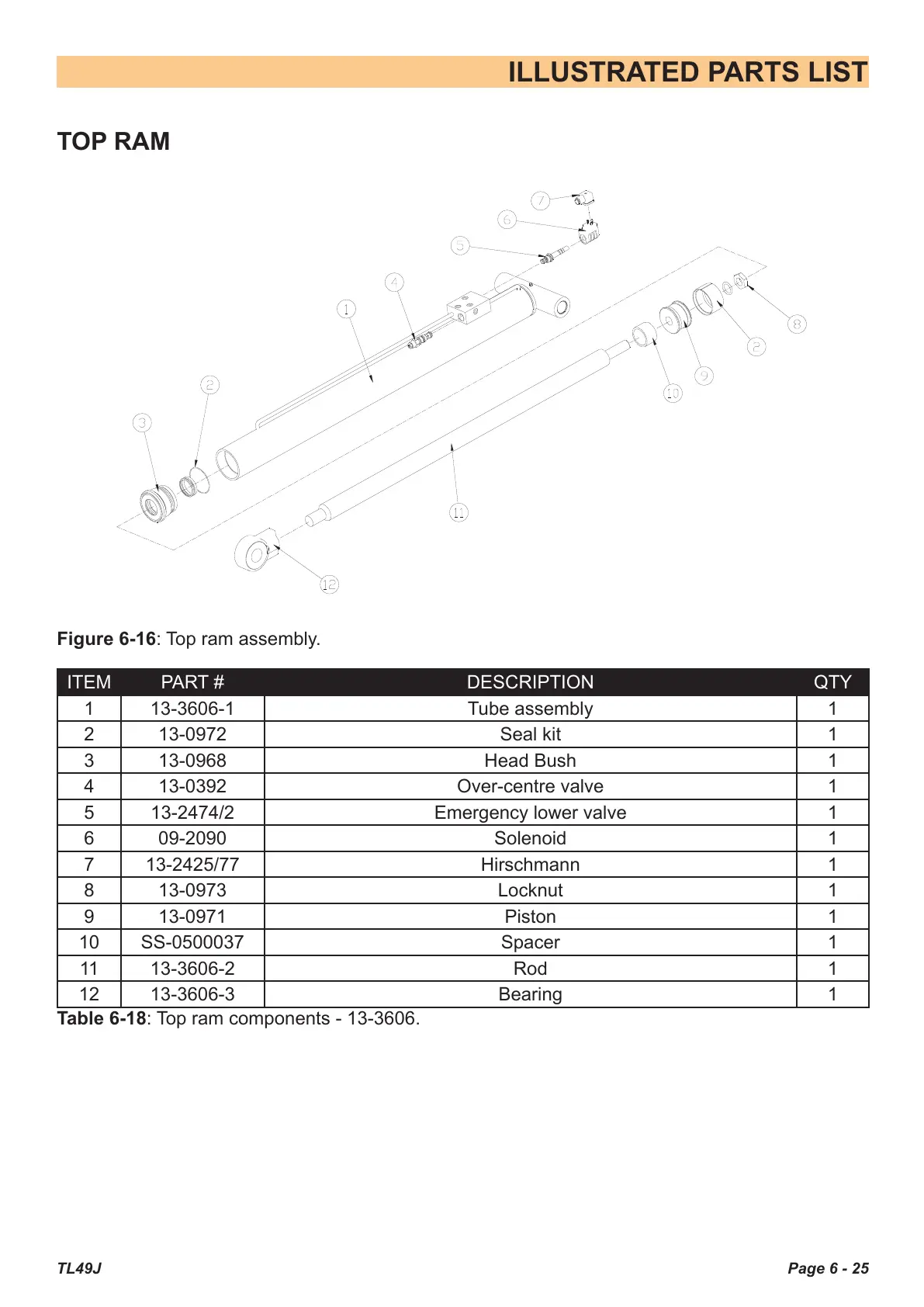

Figure 6-16: Top ram assembly.
Table 6-18: Top ram components - 13-3606.
