Page 6 - 40 TL49J
EXTERNAL COMPONENTS
PART # DESCRIPTION QTY
09-2088 Solenoid coil 12 V/22 W 2
09-2091 Solenoid coil 12 V/14 W 3
02-2639/16 Overload switch 1
02-2639/22 Stabilizer switch 4
09-1961 Elevation switch 1
09-2355 Elevation switch connector 1
09-2389 Conduit 1
PART # DESCRIPTION QTY
502494-000 Fuse 175 A 1
501877-000 Fuse holder 1
PART # DESCRIPTION QTY
502494-000 Motor starter box assembly 1
CABLE ASSEMBLIES
PART # DESCRIPTION QTY
513323-000 Platform Cable TL49 1
PART # DESCRIPTION QTY
513325-000 Battery cable set TL49 1

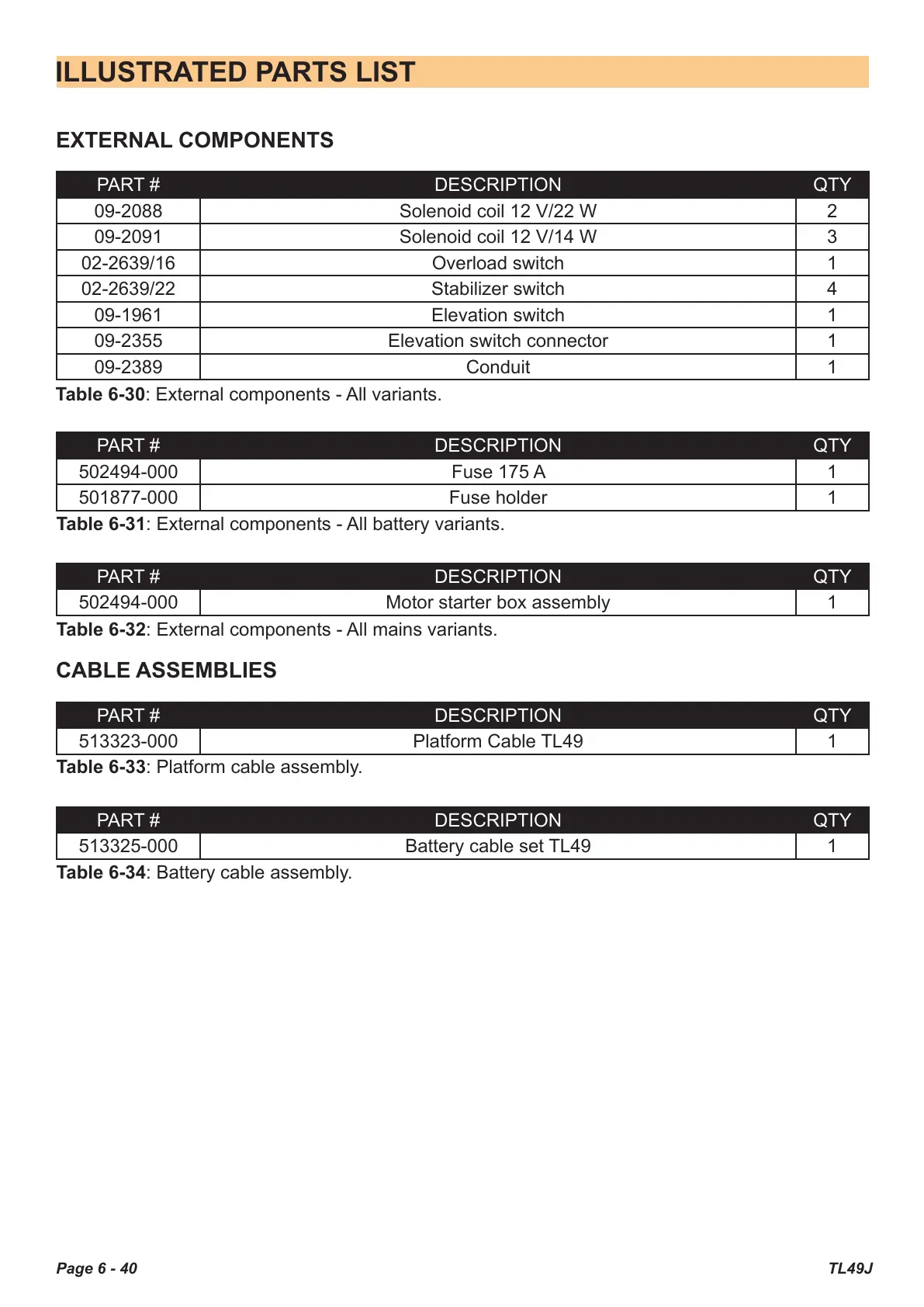

ILLUSTRATED PARTS LIST
Table 6-30: External components - All variants.
Table 6-31: External components - All battery variants.
Table 6-32: External components - All mains variants.
Table 6-33: Platform cable assembly.
Table 6-34: Battery cable assembly.
