Page 6 - 36
TL49J
ILLUSTRA
TED P
ARTS LIST
ENGINE PLA
TFORM CONTROL
P
ANEL
ITEM
P
A
RT #
DESCRIPTION
QTY
1
513321-000
Platform control panel (standard)
1
2
512449-000
Keyswitch 2 position stayput
1
3
513317-000
Green push button
1
4
513328-005
TL49 UCP
overlay engine
1
5
513307-000
Switch 3-way spring to center
1
4
2
5
1
3

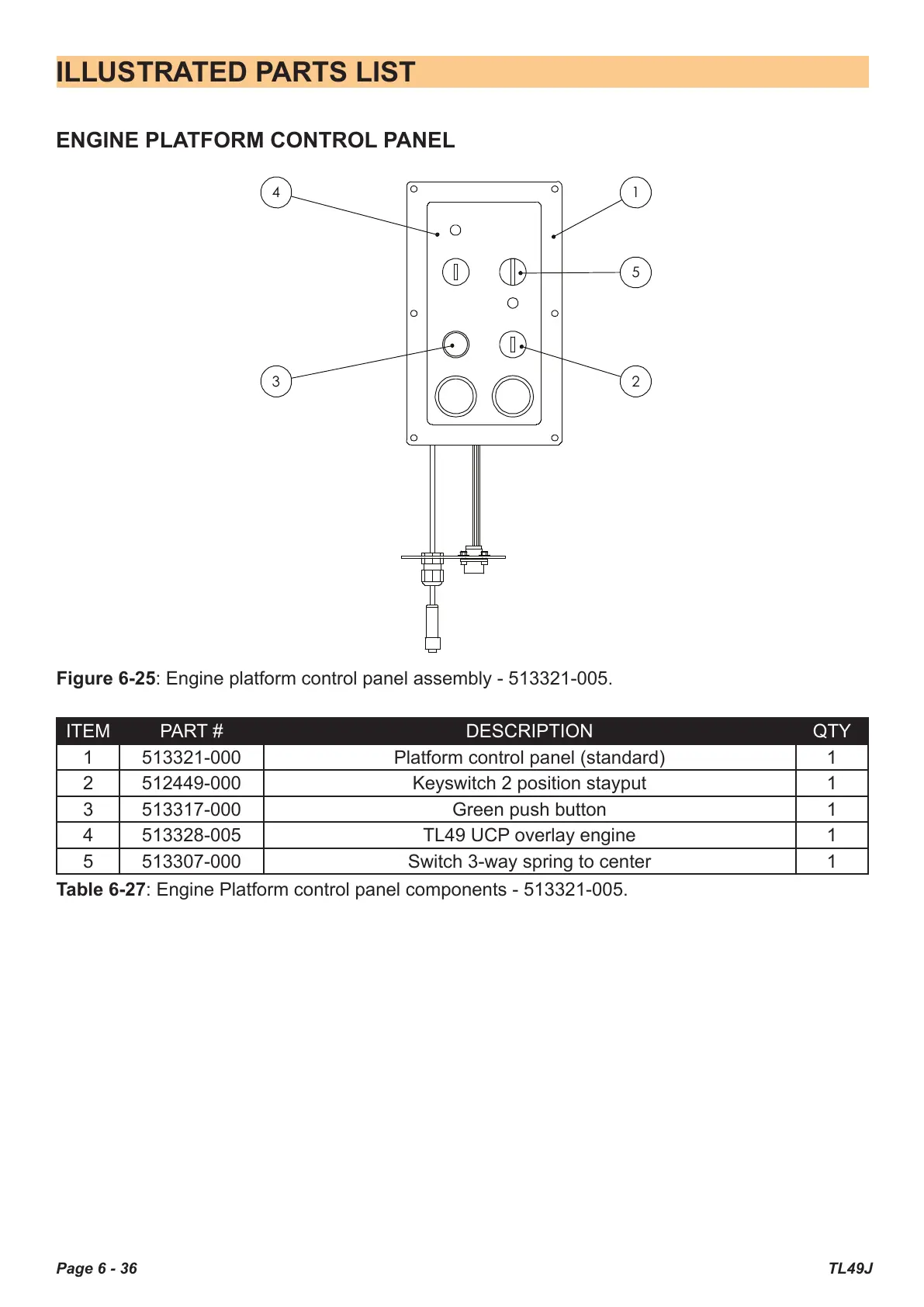

Figure 6-25
: Engine platform control panel assembly - 513321-005.
T
able 6-27
: Engine Platform control panel components - 513321-005.
Courtesy of Crane.Market
129
