Snorkel TL49J User Manual

Page 6 - 29TL49J
ILLUSTRATED PARTS LIST
DROP NOSE RAM
ITEM PART # DESCRIPTION QTY
1 13-3602-1 Tube assembly 1
2 13-3603-3 Seal Kit 1
3 13-1061 Head bush 1
4 13-2489 Over-centre valve 2
5 13-1064 Piston 1
6 13-0973 Locknut 1
7 13-3602-3 Spacer 1
8 13-3602-2 Rod assembly 1

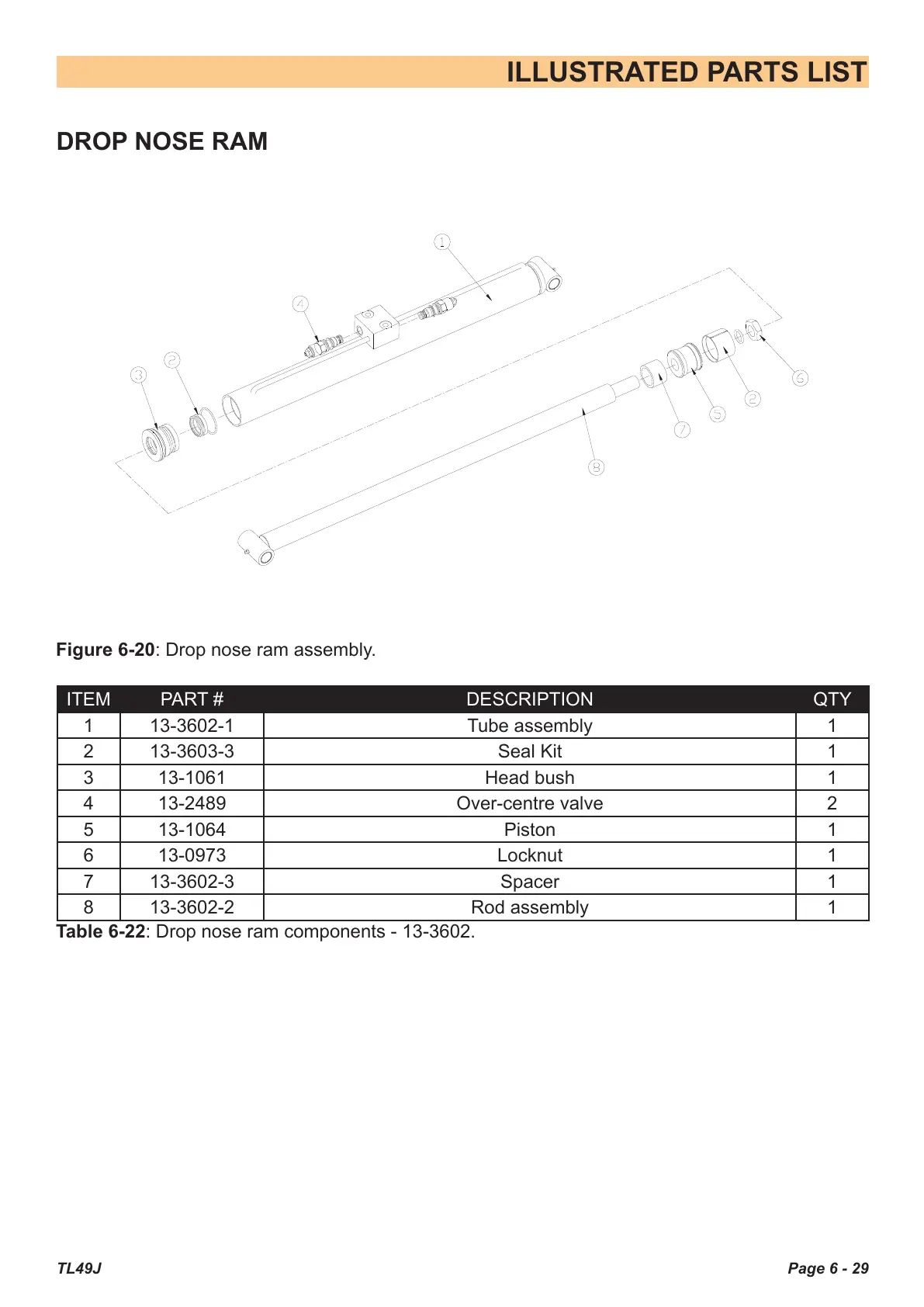

Figure 6-20: Drop nose ram assembly.
Table 6-22: Drop nose ram components - 13-3602.
