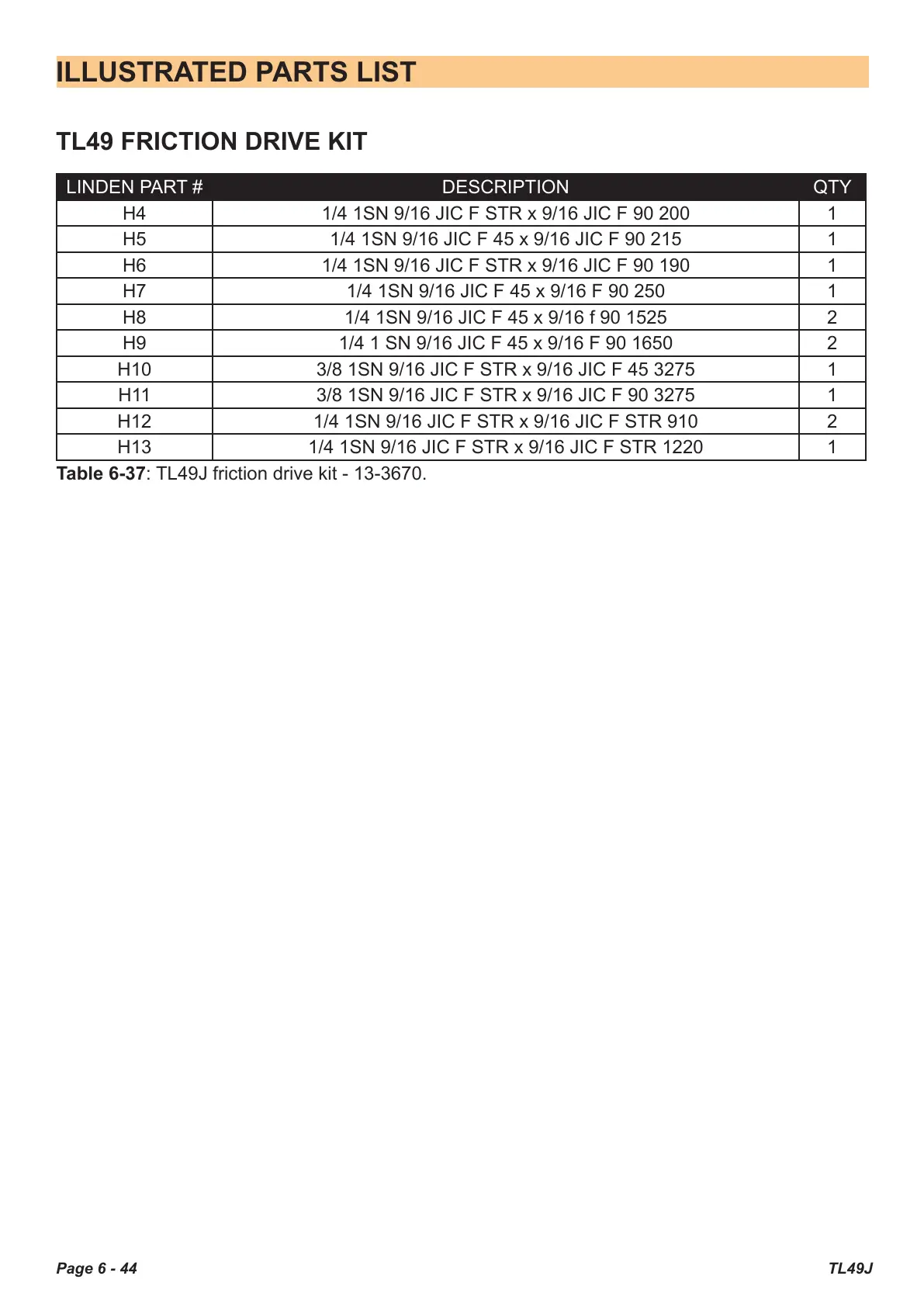

Page 6 - 44 TL49J
ILLUSTRATED PARTS LIST
TL49 FRICTION DRIVE KIT
LINDEN PART # DESCRIPTION QTY
H4 1/4 1SN 9/16 JIC F STR x 9/16 JIC F 90 200 1
H5 1/4 1SN 9/16 JIC F 45 x 9/16 JIC F 90 215 1
H6 1/4 1SN 9/16 JIC F STR x 9/16 JIC F 90 190 1
H7 1/4 1SN 9/16 JIC F 45 x 9/16 F 90 250 1
H8 1/4 1SN 9/16 JIC F 45 x 9/16 f 90 1525 2
H9 1/4 1 SN 9/16 JIC F 45 x 9/16 F 90 1650 2
H10 3/8 1SN 9/16 JIC F STR x 9/16 JIC F 45 3275 1
H11 3/8 1SN 9/16 JIC F STR x 9/16 JIC F 90 3275 1
H12 1/4 1SN 9/16 JIC F STR x 9/16 JIC F STR 910 2
H13 1/4 1SN 9/16 JIC F STR x 9/16 JIC F STR 1220 1
Table 6-37: TL49J friction drive kit - 13-3670.
