Page 6 - 45
TL49J
ILLUSTRA
TED P
ARTS LIST

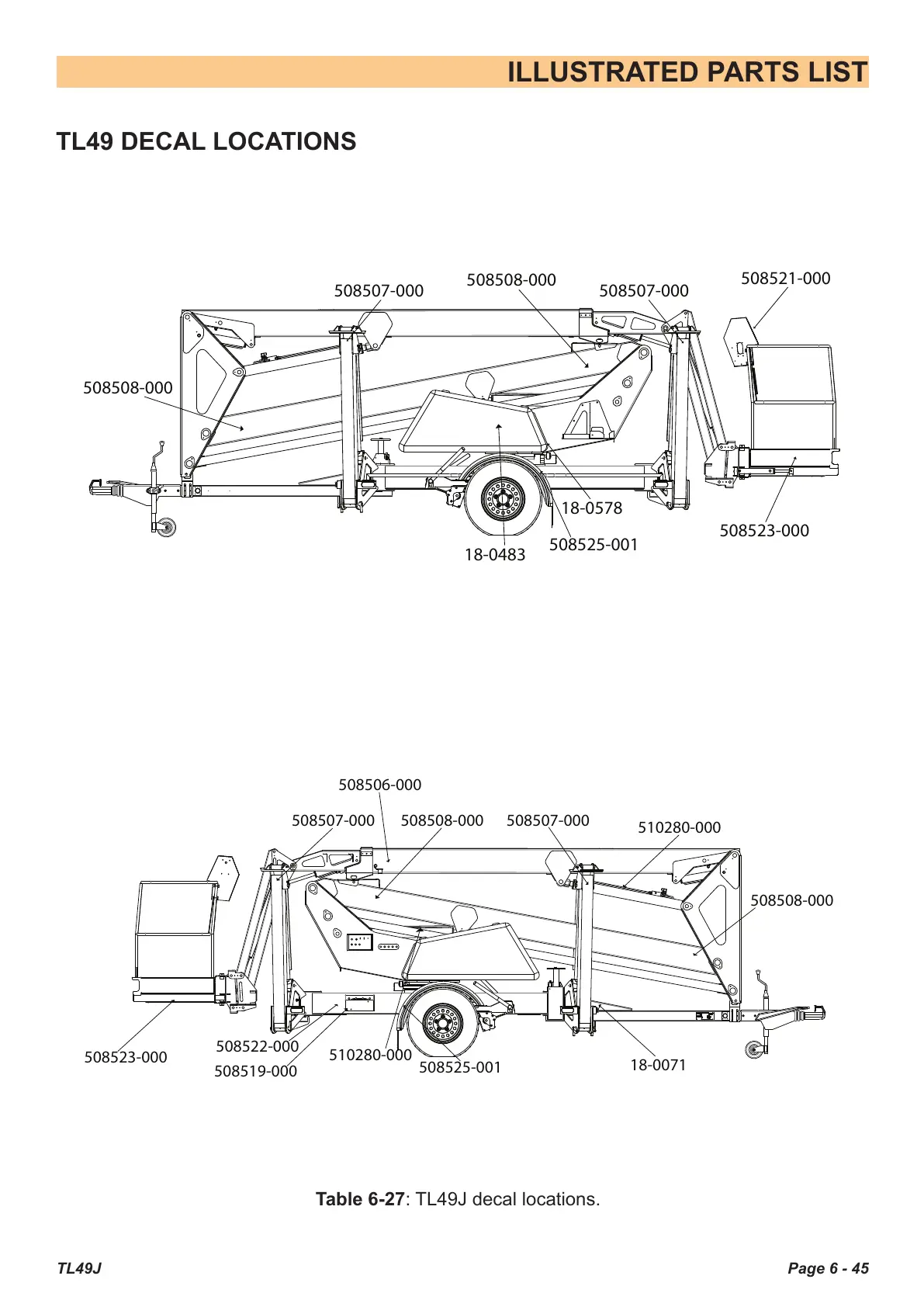

TL49 DECAL
LOCA
TIONS
508523-000
18-0483
508507-000
508507-000
18-0578
508525-001
508521-000
508508-000
508508-000
508523-000
508507-000
508507-000
18-0071
510280-000
510280-000
508525-001
508522-000
508508-000
508508-000
508506-000
508519-000
T
able 6-27
:
TL49J decal locations.
Courtesy of Crane.Market
138
140
Table of Contents
Table of Contents
14
Introduction
15
General Description
15
Special Limitations
16
Platform Capacity
16
Manual Force
16
Beaufort Scale
16
Platform Overload Alarm
17
Controls/Pre-Operation
18
Platform Controls and Indicators
18
Chassis Controls
18
Pre-Operation Safety
19
Electrical System
19
Operator's Manual
19
Battery Fluid Level
20
Battery Terminals
20
Safety Switches
20
Battery Charger
21
Cable and Wiring Harness
21
Damaged or Loose Fittings
21
Wheels
21
Fluid Level
22
Hydraulic System
22
Hoses, Tubes and Fittings
23
Lower Control Station
23
Operating Controls
23
Emergency Hand Pump
24
Emergency Lowering Switch
24
Emergency Lowering Valves
24
Emergency Slew
24
Emergency Stop
24
Fasteners
25
Guardrail System
25
Structures
25
Upper Control Station
25
Weldments
25
Emergency Lowering Switch
26
Emergency Stop
26
Operation
27
Preparing for Operation
27
Lower Controls
27
Emergency Procedure 2-22
28
Upper Controls
28
Emergency Lowering Switch
28
Platform Overload Switch
28
Transportation
33
Stowing
33
Transportation
34
Securing for Transport
34
Hoisting
34
Towing
35
Friction Drive Assist Package
36
Inspection and Maintenance
38
Daily Preventative Maintenance Schedule
39
Specifications
40
Service and Repair
43
Introduction
44
Contents
44
Construction Standard
44
Technical Characteristics
44
Maintenance Schedule
47
Maintenance Procedure
50
Correct Oil Level
50
DC Motor & Pump
50
Power Pack
50
Ground Control Valve
51
Sol 1
51
All Other Boom Cylinders
52
Hand Pump
52
Platform Controls
52
Platform Slew
52
Stabilizer Control Valve
52
Dropnose Ram
53
Ram Not Holding under
53
Outrigger Ram
54
Platform Control Valve
54
Diverter Valve
55
Ground Control Valve
55
Outrigger Control Valve
56
Restrictors
56
Bleeding
57
Slew Motor
57
Slewing Platform Ram
57
Engine Settings
58
Service and Repair
59
Nuts & Bolts
60
Physical Damage
60
Locking Peg
61
Locking Pins
61
Tie down Lugs
62
Battery & Charging
62
Emergency Stop
64
Electrical System
64
Outrigger Safety
64
Wheels
65
Brakes
65
Axle
66
Wheel Bearings
67
Tl49 Rear Lights
68
General Grease Points
69
Lubrication Specifications
69
Slew Drive
69
Slew Drive Gear
69
Slew Stop
70
Schematics
83
Finding During Troubleshooting Analysis.
84
Tl49 Battery Pg Electric Schematic - 513354-001
84
Tl49 Petrol Pg Electric Schematic - 513354-002
85
Tl49 Diesel Pg Electric Schematic - 513354-003
86
Tl49 Bi-Petrol Pg Electric Schematic - 513354-004
87
Tl49 Bi-Diesel Pg Electric Schematic - 513354-005
88
Tl49 Mains Pg Electric Schematic - 513354-006
89
Tl49 Mains-Genset Pg Electric Schematic - 513354-007
90
Tl49 Battery/Mains Hydraulics Schematic - 515057-000
91
Tl49 Diesel/Petrol Hydraulics Schematic - 515057-001
92
Tl49 Bi-Fuel Hydraulics Schematic - 515057-002
93
Tl49 Bi-Fuel/Friction Drive Option Schematic - 515057-002
94
Introduction
95
Each Part List Contains the Component Parts for that Assembly.
96
Lighting Board Assembly
96
Outrigger Assembly
97
Chassis Assembly
98
Slew - Bi Fuel Power
100
Slew - Mains Power
102
Slew - Battery Power
104
Slew - Engine Power
106
Lower Boom
108
Top Boom
110
Dropnose
112
Cage Support
113
Steel Cage
114
Grp Basket
116
Outrigger Ram
117
Bottom Ram
118
Top Ram
119
Master Ram
120
Telescopic Ram
121
Levelling Ram
122
Dropnose Ram
123
Cage Rotation Ram
124
Trailer Electric Kit Parts
125
Standard Lower Control Panel
125
Standard Platform Control Panel
127
Battery/Mains Platform Control Panel
129
Engine Platform Control Panel
130
Bi-Fuel Platform Control Panel
131
Mains Motor Starter
132
External Components
134
Cable Assemblies
134
Basic Fittings Kit
135
End Fittings Kit
136
Tl49 Friction Drive Kit
138
Tl49 Decal Locations
