Page 6 - 23TL49J
ILLUSTRATED PARTS LIST
OUTRIGGER RAM
ITEM PART # DESCRIPTION QTY
1 13-3608-1 Tube assembly 1
2 13-2351 Seal kit 1
3 13-1004 Head bush 1
4 13-0604 PO Check valve 2
5 13-0973 Locknut 1
6 13-1007 Piston 1
7 SS-0400023 Spacer 1
8 13-3608-2 Rod assembly 1

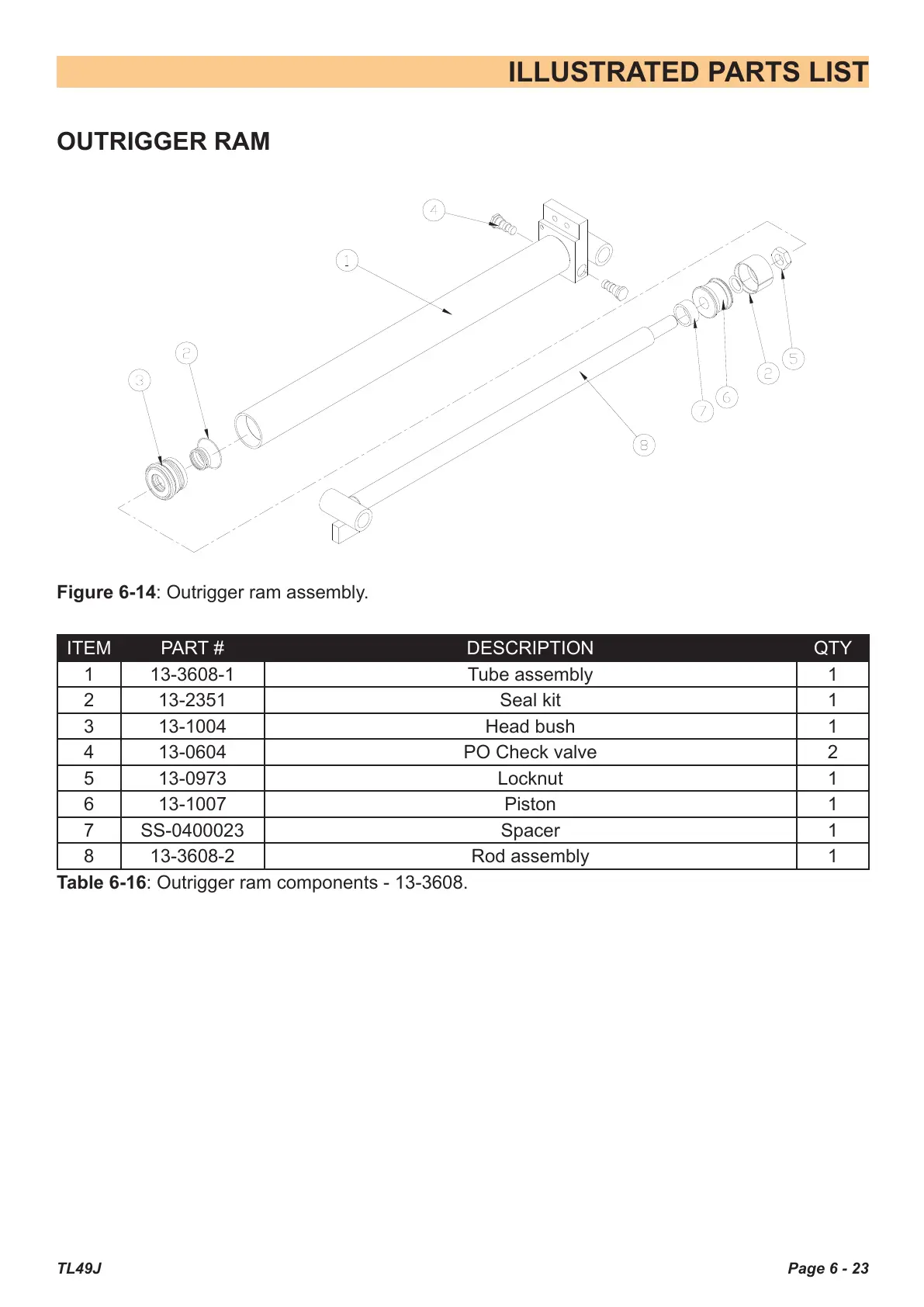

Figure 6-14: Outrigger ram assembly.
Table 6-16: Outrigger ram components - 13-3608.
