Snorkel TL49J User Manual

Page 6 - 28 TL49J
ILLUSTRATED PARTS LIST
LEVELLING RAM
ITEM PART # DESCRIPTION QTY
1 13-3603-1 Tube assembly 1
2 13-3603-3 Seal kit 1
3 13-1061 Head bush 1
4 13-2489 Over-centre valve 2
5 13-1064 Piston 1
6 13-0973 Locknut 1
7 13-3603-2 Rod assembly 1

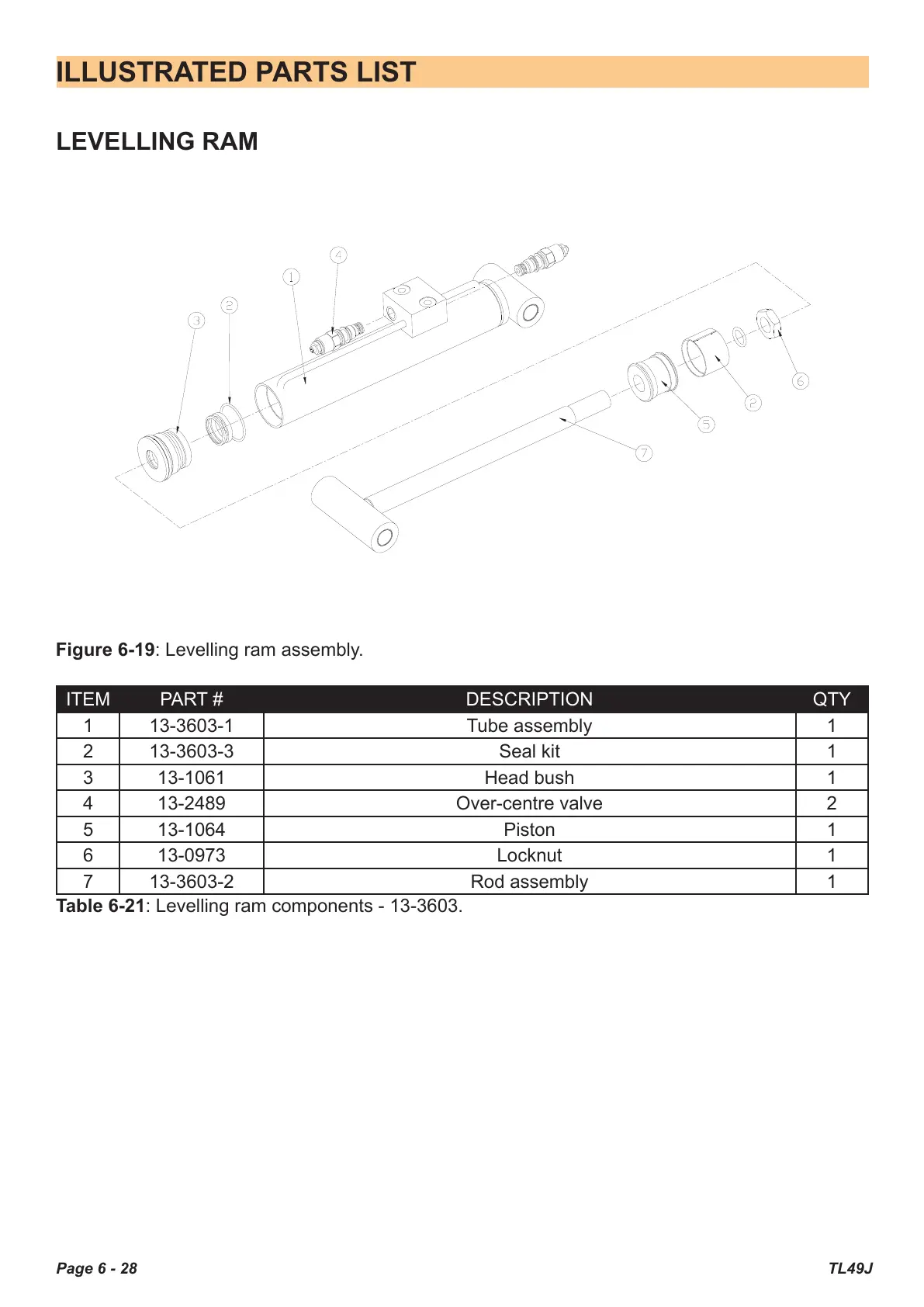

Figure 6-19: Levelling ram assembly.
Table 6-21: Levelling ram components - 13-3603.
