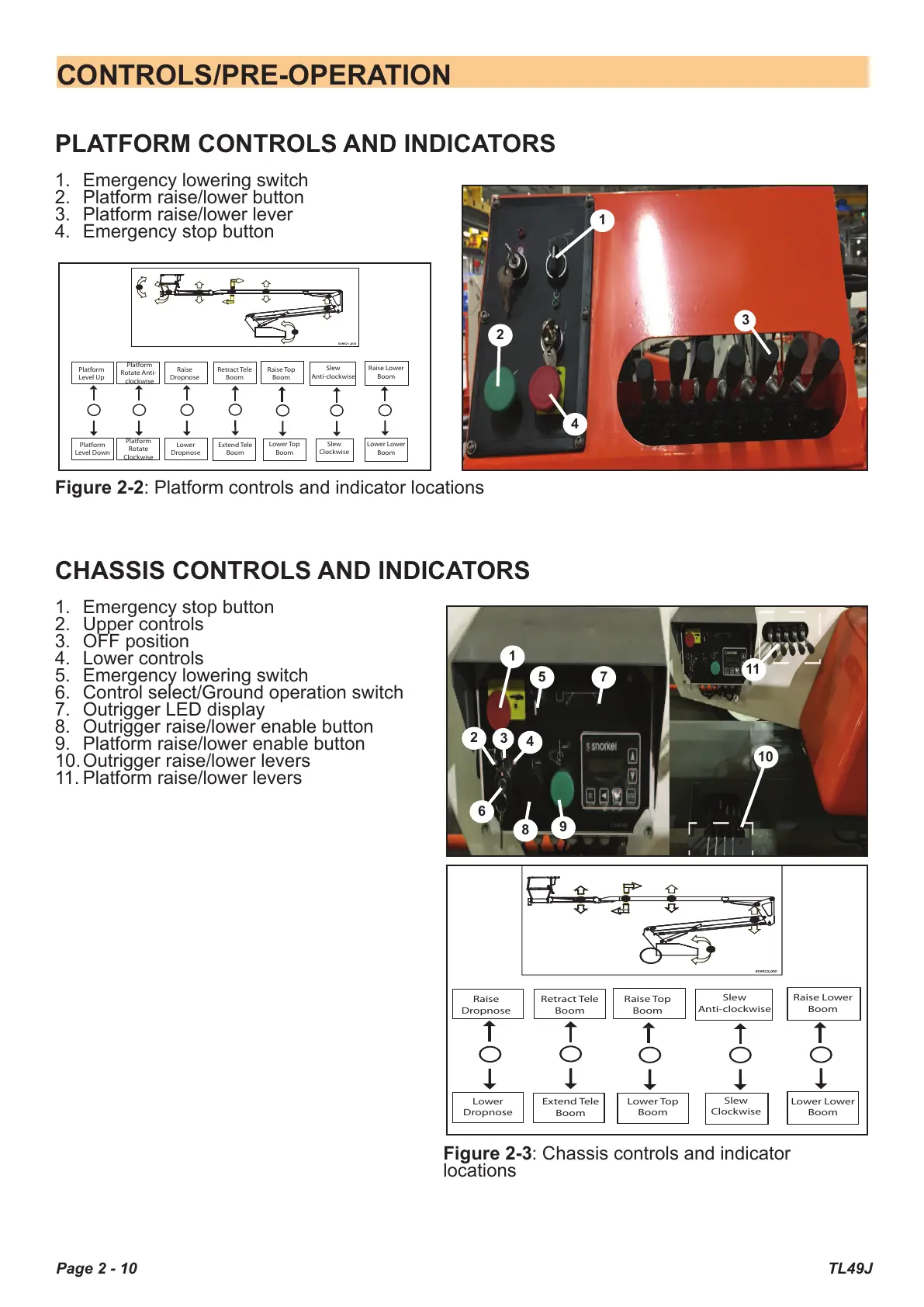

Page 2 - 10 TL49J
CONTROLS/PRE-OPERATION
PLATFORM CONTROLS AND INDICATORS
1. Emergency lowering switch
2. Platform raise/lower button
3. Platform raise/lower lever
4. Emergency stop button
Figure 2-2: Platform controls and indicator locations
CHASSIS CONTROLS AND INDICATORS
1. Emergency stop button
2. Upper controls
3. OFF position
4. Lower controls
5. Emergency lowering switch
6. Control select/Ground operation switch
7. Outrigger LED display
8. Outrigger raise/lower enable button
9. Platform raise/lower enable button
10. Outrigger raise/lower levers
11. Platform raise/lower levers
Figure 2-3: Chassis controls and indicator
locations
Raise Lower
Boom
Lower Lower
Boom
Slew
Anti-clockwise
Slew
Clockwise
Raise Top
Boom
Lower Top
Boom
Retract Tele
Boom
Extend Tele
Boom
Lower
Dropnose
Raise
Dropnose
Platform
Rotate
Clockwise
Platform
Rotate Anti-
clockwise
Platform
Level Down
Platform
Level Up
1
2
3
4
5
6
7
8
9
Raise Lower
Boom
Lower Lower
Boom
Slew
Anti-clockwise
Slew
Clockwise
Raise Top
Boom
Lower Top
Boom
Retract Tele
Boom
Extend Tele
Boom
Lower
Dropnose
Raise
Dropnose
10
11
1
2
3
4
