Snorkel TL49J User Manual

Page 6 - 24 TL49J
ILLUSTRATED PARTS LIST
BOTTOM RAM
ITEM PART # DESCRIPTION QTY
1 13-3607-1 Tube assembly 1
2 13-0972 Seal kit 1
3 13-0968 Head bush 1
4 13-0392 Over-centre valve 1
5 13-2474/2 Emergency lower valve 1
6 09-2090 Solenoid 1
7 13-2425/77 Hirschmann connector 1
8 13-0973 Locknut 1
9 13-0971 Piston 1
10 SS-0500343 Spacer 1
11 13-3607-2 Rod assembly 1

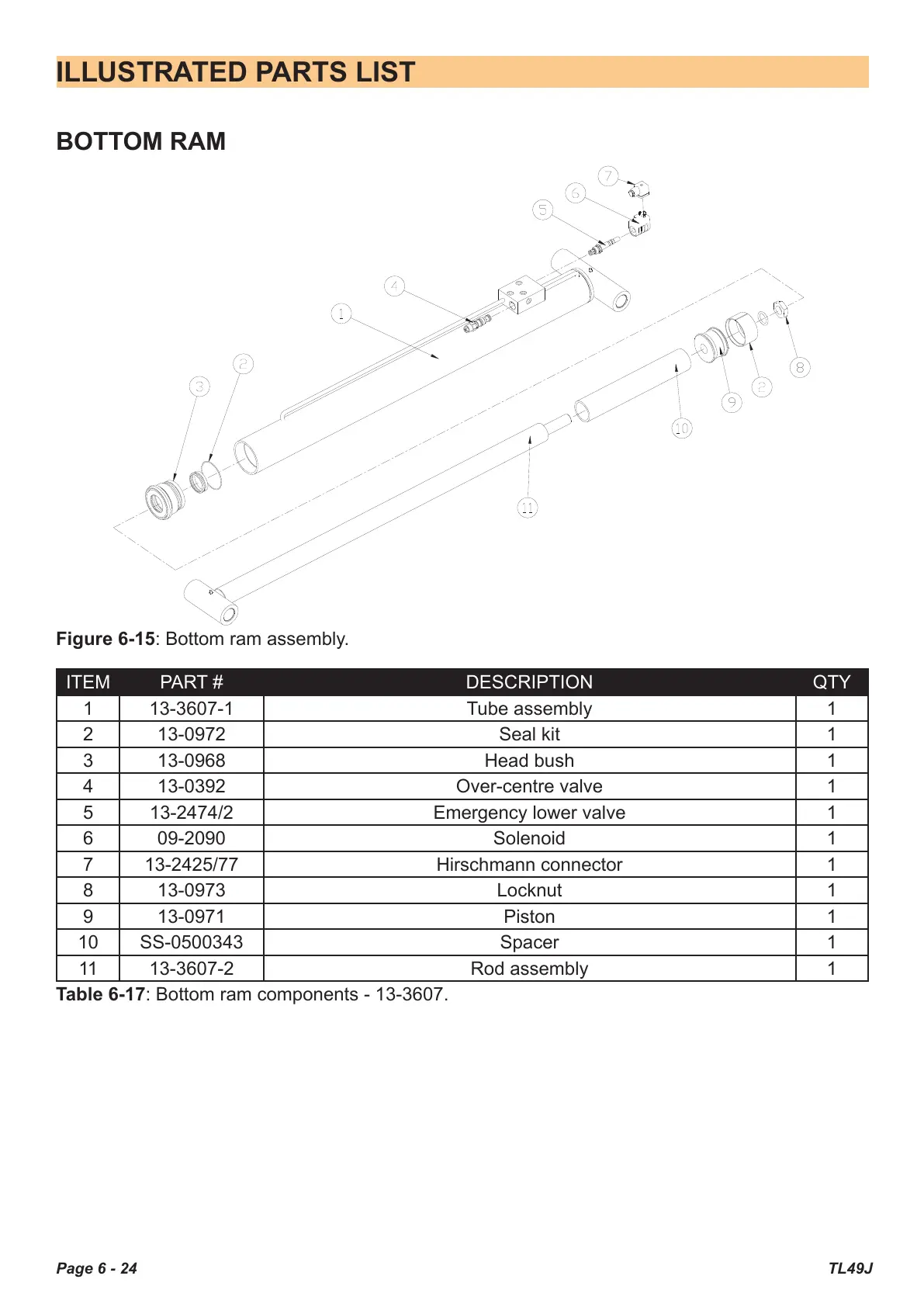

Figure 6-15: Bottom ram assembly.
Table 6-17: Bottom ram components - 13-3607.
