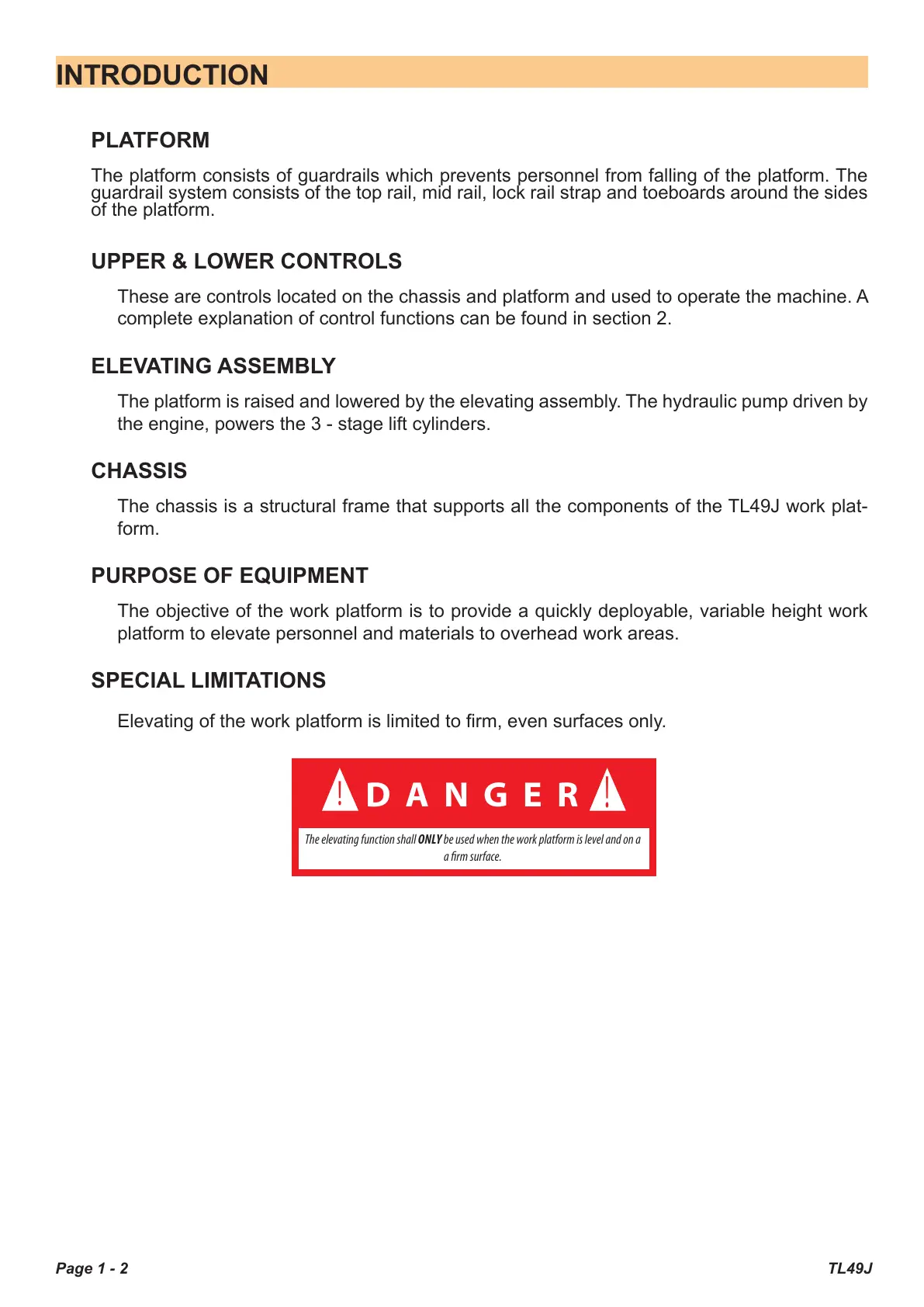

Page 1 - 2 TL49J
PLATFORM
The platform consists of guardrails which prevents personnel from falling of the platform. The
guardrail system consists of the top rail, mid rail, lock rail strap and toeboards around the sides
of the platform.
UPPER & LOWER CONTROLS
These are controls located on the chassis and platform and used to operate the machine. A
complete explanation of control functions can be found in section 2.
ELEVATING ASSEMBLY
The platform is raised and lowered by the elevating assembly. The hydraulic pump driven by
the engine, powers the 3 - stage lift cylinders.
CHASSIS
The chassis is a structural frame that supports all the components of the TL49J work plat-
form.
PURPOSE OF EQUIPMENT
The objective of the work platform is to provide a quickly deployable, variable height work
platform to elevate personnel and materials to overhead work areas.
SPECIAL LIMITATIONS
Elevating of the work platform is limited to rm, even surfaces only.
!
D A N G E R
!
The elevating function shall ONLY be used when the work platform is level and on a
a firm surface.
INTRODUCTION
