Snorkel TM12 Service Manual

Page 6-6

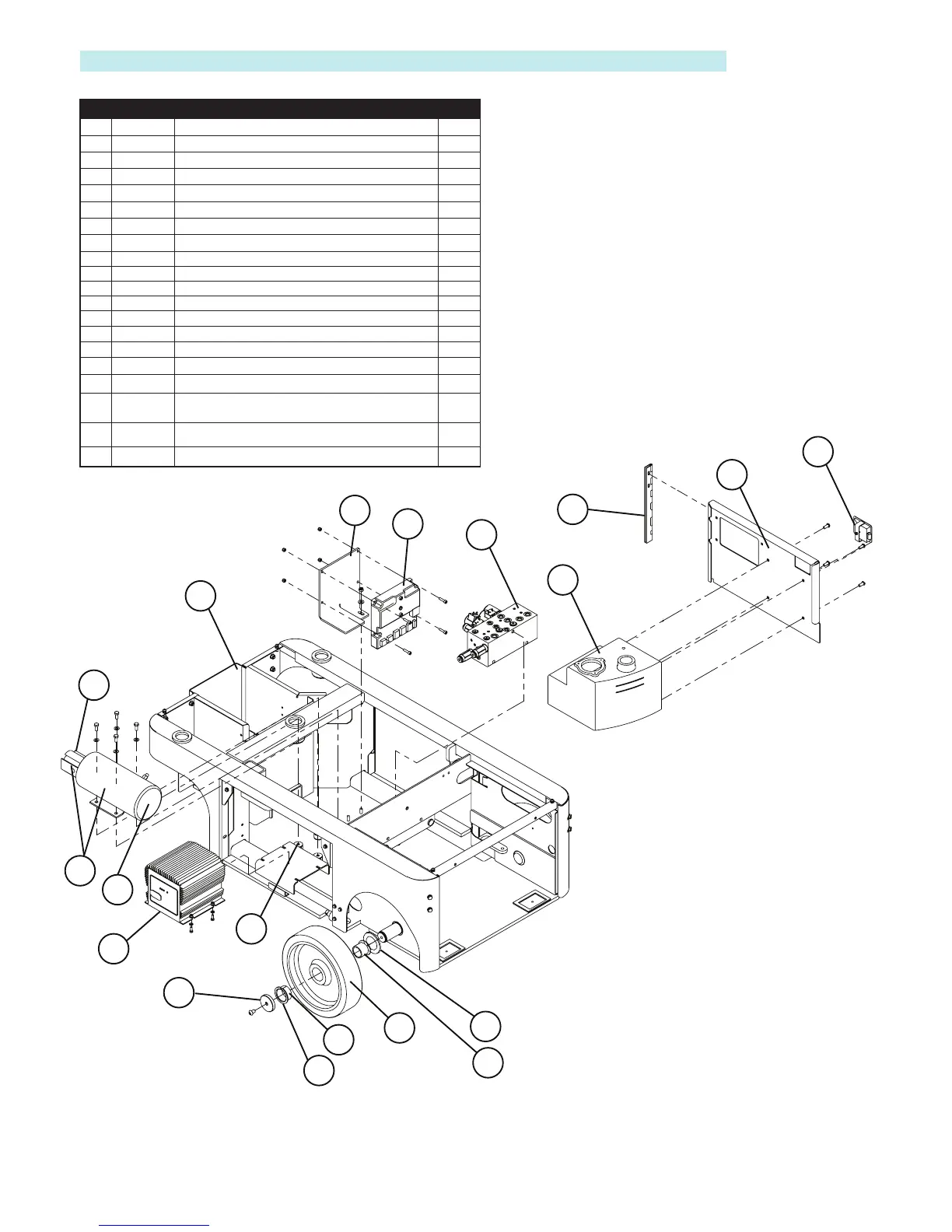

Illustrated Parts Breakdown - Chassis Assembly 3 of 3
Chassis Assembly 3 of 3
ITEM PART NUMBER DESCRIPTION QTY
40
512896-000 CHASSIS WELDMENT REF
41
514275-001 PUMP 1
42
501814-000 VIBRATION MOUNT 4
43
505024-000 LATCH (HINGING DOOR) 1
44
107149-010 DOOR (HINGED) 1
45
505025-000 HINGE 1
46
See Pg 6-15 TANK, (HYDRAULIC RESERVOIR) 1
47
513615-000 HYDRAULIC MANIFOLD BLOCK (see page 6-12) 1
48
510816-000 IDLER WHEEL 2
49
505041-000 BUSHING, SPACER 4
50
505038-000 CIRCLIP 2
51
505027-000 CIRCLIP COVER 2
52
1
53
514275-002 PUMP MOTOR
REF
514275-000 PUMP / MOTOR ASSY. (MADE FROM ITEM 52 & 41)
40
44
43
47
46
48
49
50
51
53
41
42
45
55
56
54
54
1
1450029 BATTERY CHARGER
55
1
3087800 EZ230 CONTROLLER
56
1
510463-000 EZ230 CONTROLLER MOUNT BRACKET
57
1
512950-000 WIRING HARNESS (NOT SHOWN, REFER TO
ELECTRICAL SCHEMATIC 5.2)
58
1
513048-000 BATTERY CABLE SET (NOT SHOWN, REFER TO SECTION
3-6, SERVICE & REPAIR FOR CABLE LOCATION)
52
59
59
010092-014
THRUST WASHER
2
49
