Snorkel TM12 Service Manual

Page 6-5

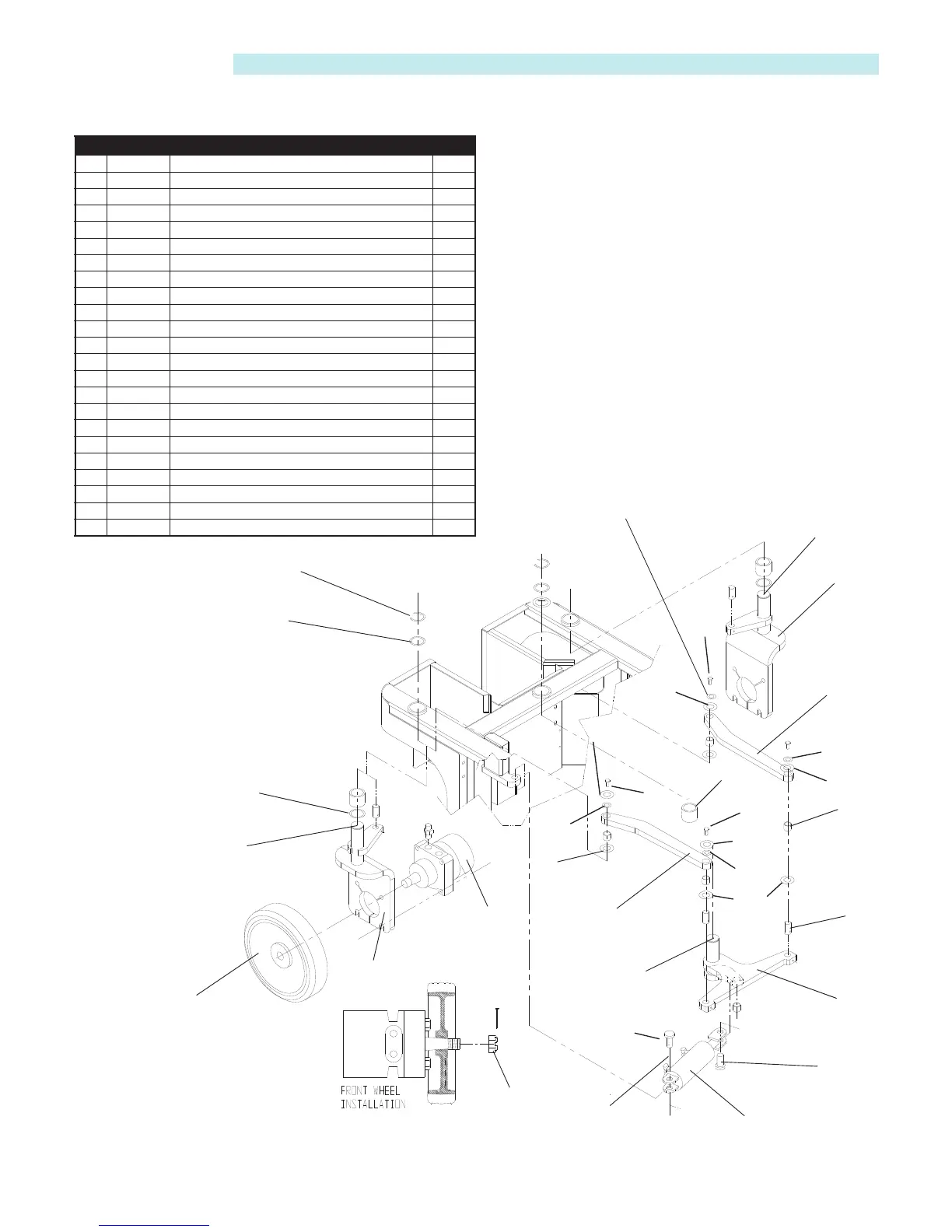

Illustrated Parts Breakdown - Chassis Assembly 2 of 3
33
32
28
20
21
19
35
24
27
22
23
29
34
30
25
31
26
36
38
38
38
39
Chassis Assembly 2 of 3
505001-000
ITEM PART NUMBER DESCRIPTION QTY
19
101125-001 MOTOR HYDRAULIC 2
*
101125-010 SEAL KIT (MOTOR) 2
20
510815-000 WHEEL, DRIVE 2
21
107186-000 WHEEL YOKE, L.H. 1
22
107185-000 WHEEL YOKE, R.H. 1
23
065517-000 STEER LINK RH 1
24
065518-000 STEER LINK LH 1
25
065445-000 BELL CRANK WELDMT 1
26
SEE PAGE 6-22 CYLINDER ASSY, BRAKE/STEER 1
-
SEE PAGE 6-22 SEAL KIT, BRAKE/STEER CYLINDER -
27
505043-000 BUSHING, BELL CRANK & STEER YOKE PIVOT 3
28
508108-000 BUSHING (FLAT), BELL CRANK & STEER YOKE PIVOT 3
29
503673-000 BUSHING, STEERING LINK ARMS & BELL CRANK WELD’M 5
30
505034-000 PIVOT PIN, STEERING LINK ARMS 4
31
011848-019 PIVOT PIN, STEERING CYLINDER 2
32
508108-000 BUSHING (FLAT), STEER YOKE PIVOT 2
33
505038-000 CIRCLIP 2
34
505045-000 SPACER (STEERING LINK) 8
35
061817-011 CASTLE NUT, (DRIVE WHEELS) 2
36
500509-016 WASHER M6 (STEERING LINKARMS) 4
37
056491-016 M6 X 16 HEX HEAD SCREW 4
38
057048-000 GREASE NIPPLE 3
39
505075-000 SPACER 1
34
36
37
37
37
37
37
36
34
34
34
36
34
31
