CONTROLS/PRE-OPERATION

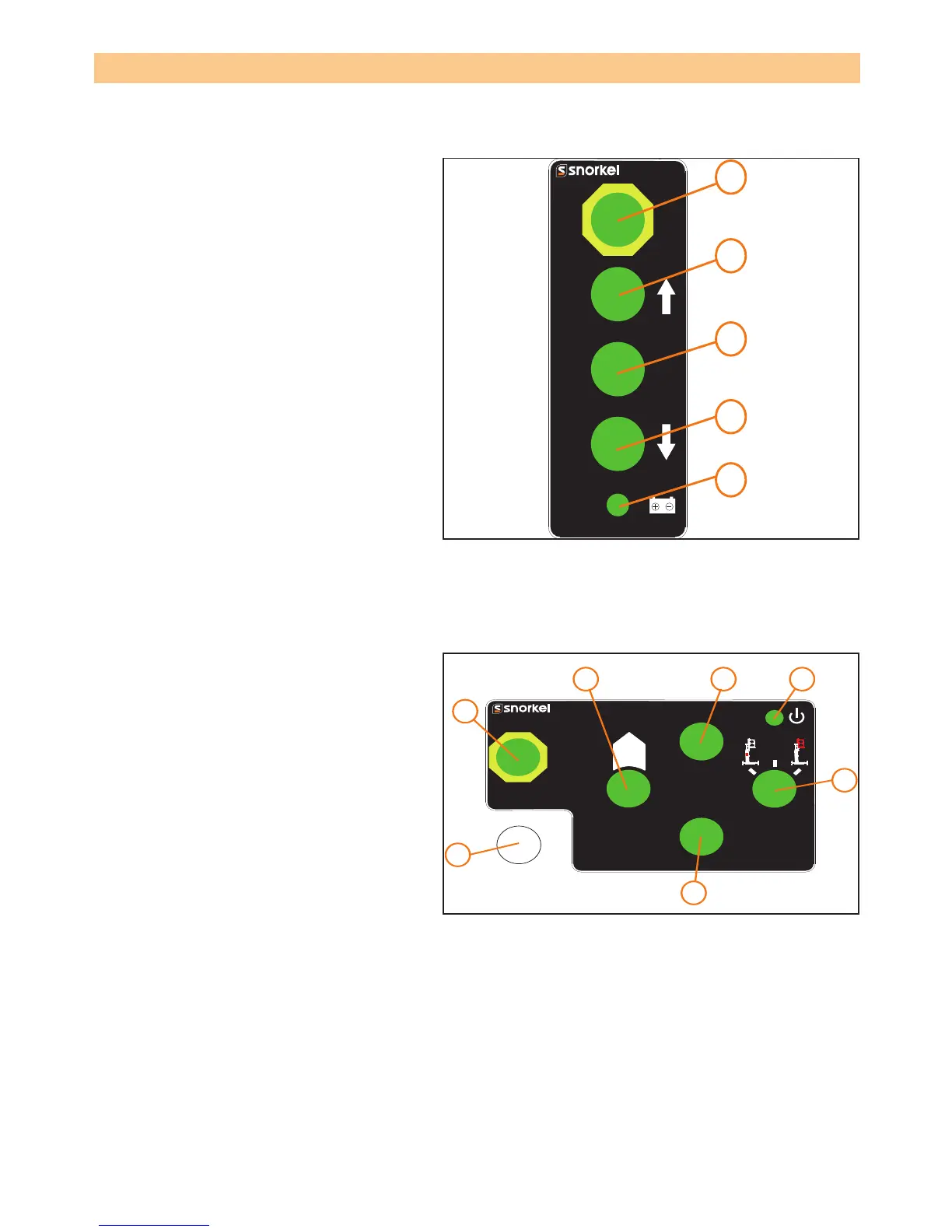

PLATFORM CONTROLS AND INDICATORS DC MODELS
1. Emergency stop button
2. Platform raise button
3. Enable button
4. Platform lower button
5. Battery condition indicator
Figure 2-2: Platform controls and indicator locations
CHASSIS CONTROLS AND INDICATORS DC MODELS
1. Emergency stop button
2. Diagnostics port
3. Enable button
4. Platform raise button
5. Platform lower button
6. Power indicator
7. Control selector switch
Figure 2-3: Chassis controls and indicator locations

