CONTROLS/PRE-OPERATION

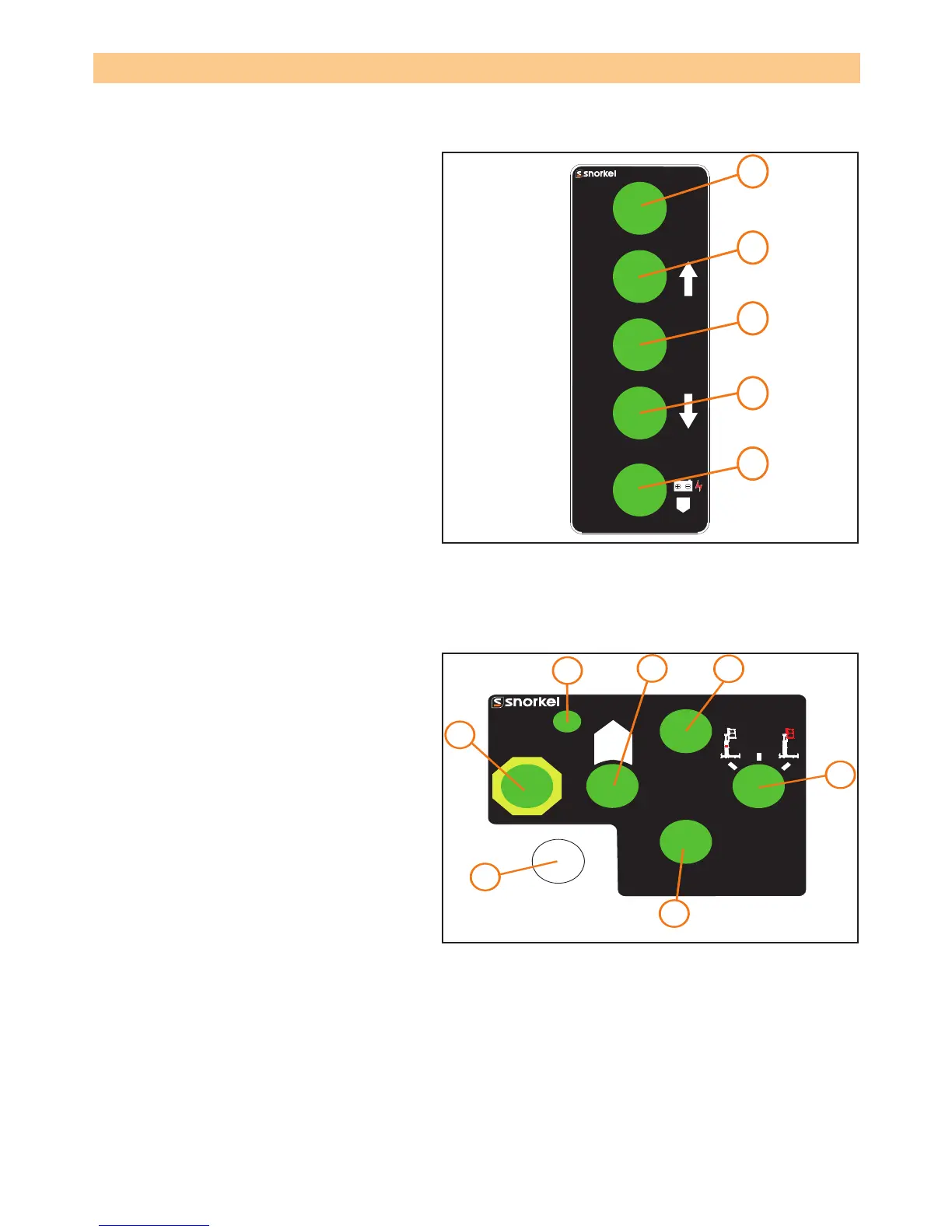

PLATFORM CONTROLS AND INDICATORS AC MODELS
1. Emergency stop button
2. Platform raise button
3. Enable button
4. Platform lower button
5. Emergency lower switch
NB: Use emergency lower switch in
conjunction with the enable button (3)
and the platform lower button (4) to lower
the platform in the event of a mains
power failure only.
Figure 2-4: Platform controls and indicator locations
CHASSIS CONTROLS AND INDICATORS AC MODELS
1. Emergency stop button
2. Diagnostic port
3. Circuit breaker (MCB)
4. Enable button
5. Platform raise button
6. Platform lower button
7. Control selector switch
Figure 2-5: Chassis controls and indicator locations

