socomec NETYS RT 5000 User Manual

NETYS RT 5 - 7 - 9 - 11 kVA - 551570A - SOCOMEC
72
EN

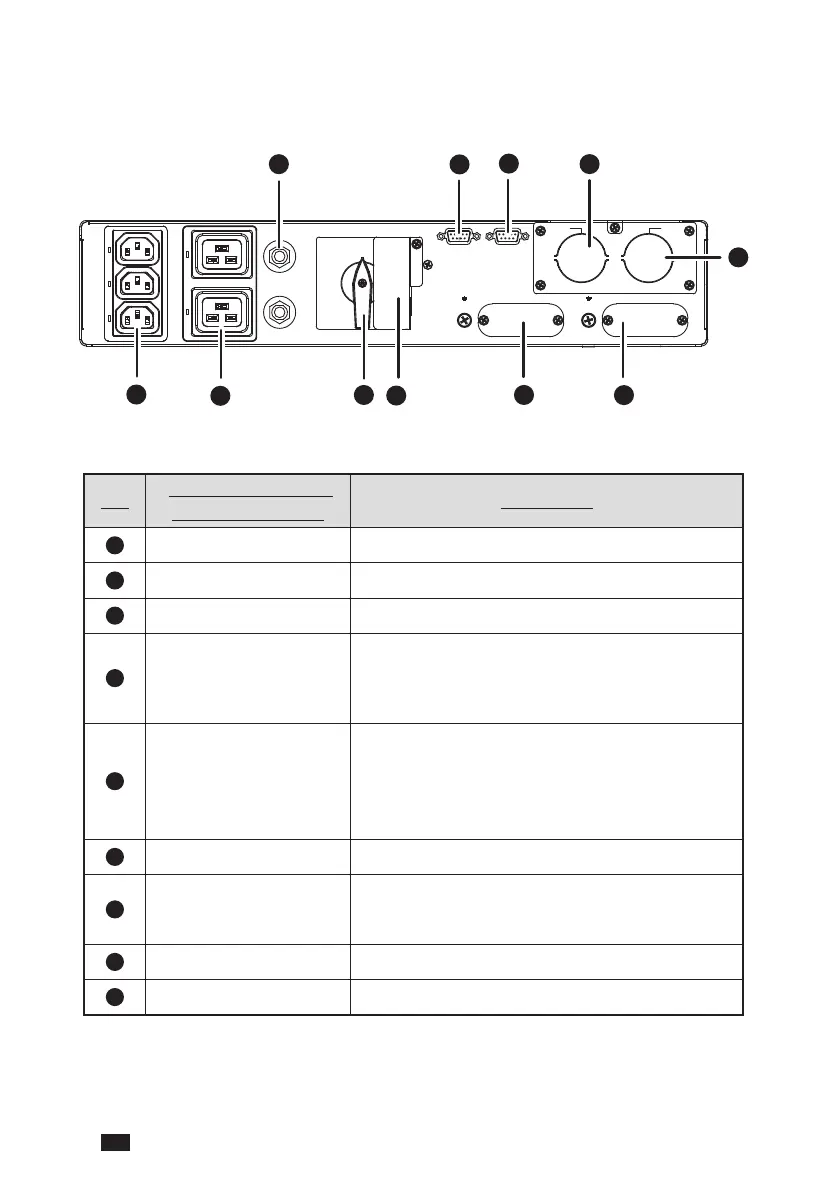

10.2.3. Front View
NRT3-OP-MBP
WARNING:
OPENING THIS COVER PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED SERVICE PERSO NNEL
CAN OPEN AND OPERATE IT.
MANUAL BYPASS SWITCH
TO UPS OUTPUT
L N
TO UPS INPUT
L N
TO UPS PARALLEL TO UPS PARALLEL
INPUTOUTPUT
OUTPUT SOCKET-2
20A MAX. PER OUTLET
OUTPUT SOCKET-1
10A MAX. PER OUTLET
OUTPUT BREAKER-2
250V AC 25A
OUTPUT BREAKER-1
250V AC 20A
4
5
3
2
1
6
6
8
8
9
7
No.
Item (Printed Words
on the Front Panel)
Connection
1
Input Connects to the main AC utility.
2
To UPS Output Connects to the UPS's output terminals.
3
To UPS Input Connects to the UPS's AC input terminals.
4
Manual Bypass
Switch
No connection is needed. The function is to
switch the UPS into manual bypass mode for
maintenance without power supply interrup-
tion.
5
Warning (This is
a Manual Bypass
Switch Cover Plate)
No connection is needed. After you remove
the screw shown in Figure 11 to remove the
cover plate, the MBP’s detector will automati-
cally activate and send a message to the UPS
to ask it to transfer into bypass mode.
6
Output Socket Connects to the critical loads.
7
Output Breaker
No connection is needed. The function is to
prevent the output socket(s) from damage
caused by overload.
8
To UPS Parallel Connects to the UPS’s parallel port.
9
Output Connects to the critical loads.
