10.3.7. Installation of Lithium-ion Battery Module

1. The lithium-ion battery module is optional. Please see Figure 10-27 for

its appearance.

2. One or two lithium-ion battery modules are required, depending on the

discharging time you need.

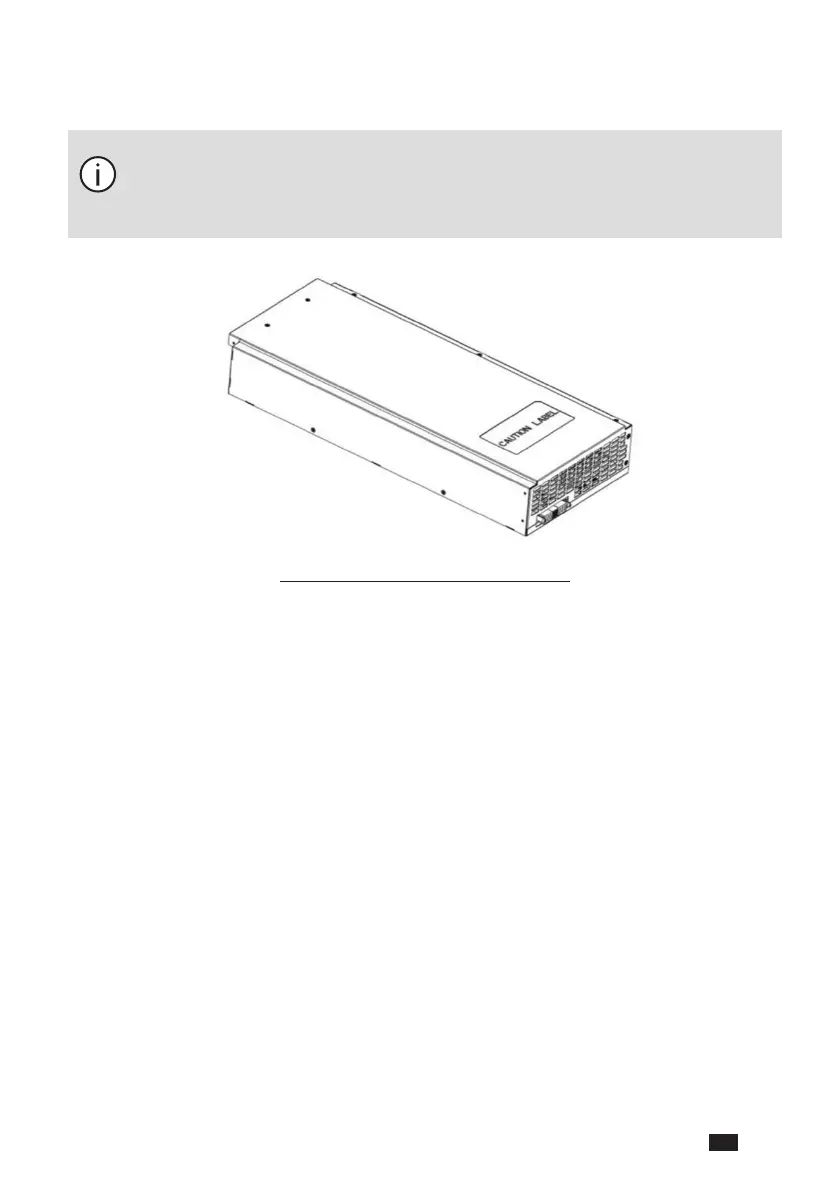

(Figure 10-27: Lithium-ion Battery Module)

To install the lithium-ion battery module in the lithium-ion battery pack, please

follow the steps ❶ to ❹ shown in Figure 10-28.

Step ❶ : Remove the screws and remove the battery pack’s front bezel.

Step ❷ : Use the Phillips screwdriver to remove the screws on the protective

cover on front of the battery module.

Step ❸ : Remove the protective cover.

Step ❹ : Extract the used battery module from the left battery compartment and

then insert a new one.
