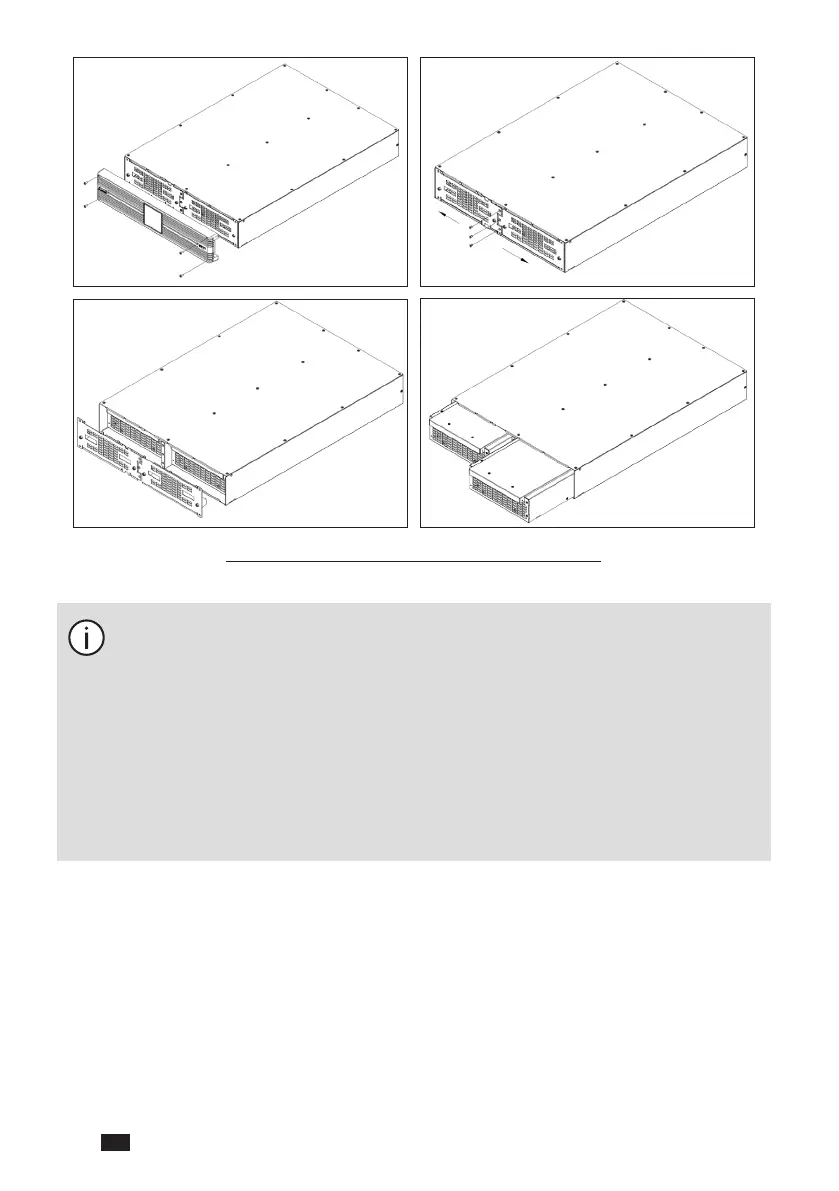

(Figure 10-28: Install the Lithium-ion Battery Module(s))
1. Follow the same procedures to replace the battery module in the right
battery compartment with a new one, and reassemble the battery pack in
reverse order of the above-mentioned steps, which is ❹ Y ❸ Y ❷ Y ❶
shown in Figure 7-2.
2. If the Socomec Manual Bypass is installed behind the lithium-ion battery
pack, please keep the Manual Bypass away from the lithium-ion battery
pack by at least 1cm (0.39”).
3.
If you install two lithium-ion battery modules and there is any fault in one of
the two modules, it is suggested that you replace both of the modules at the
same time.
To Next Page
