7.2. Input/ Output Connection
1
Please see the gures below for input/ output connection.
UPS OU TP UT
L N
AC IN PUT
N
7 kVA
11 kVA
N
AC INPU T
N
L
L
UPS OUTPU T
L

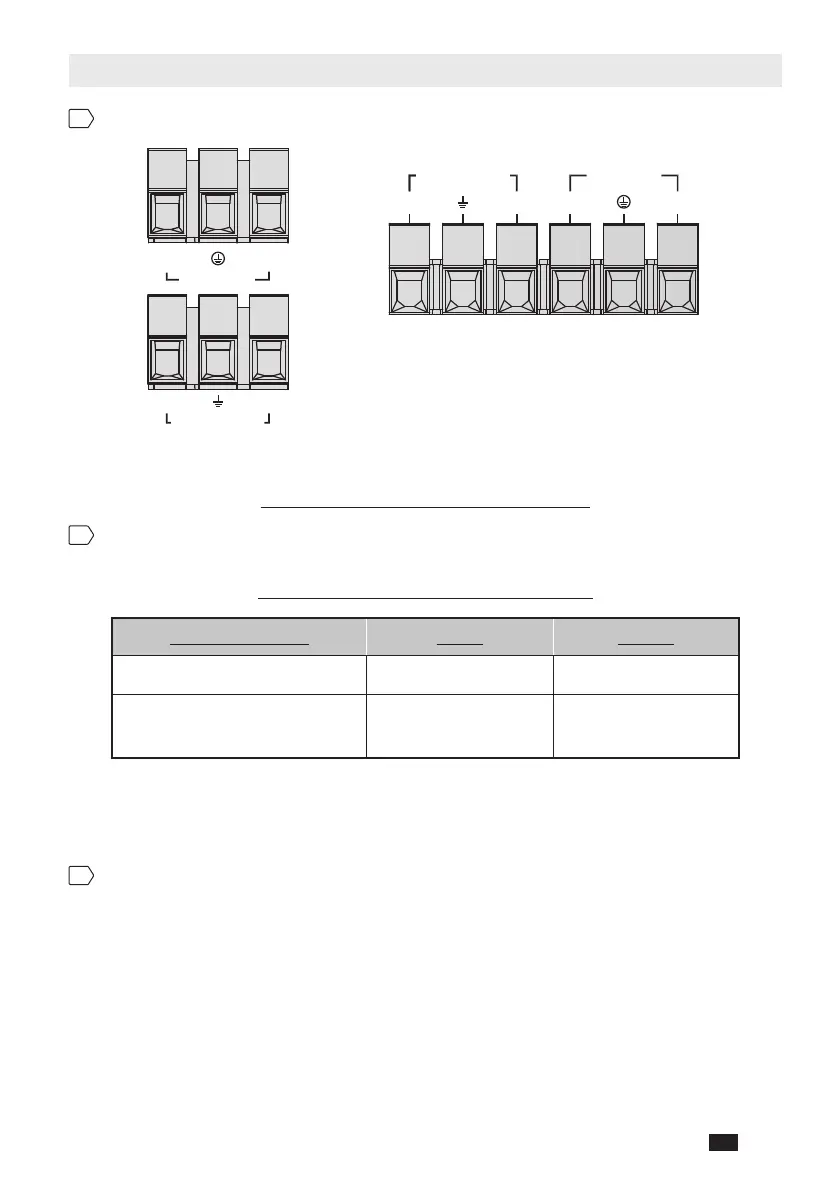

(Figure 7.2: Input/ Output Wiring Terminal Block)
2
Cable Selection:
For the specications of input/ output cables, please refer to Table 7-1.
Table 7-1: Specications of Input/ Output Cables
Spec. / Capacity 7 kVA 11 kVA
Input/ Output Cables 6mm
2
10mm
2
Maximum Tightening Torque
(For AC Wiring)
25.5kgf·cm 25.5kgf·cm
In accordance with National Electrical Codes (NEC), please install the suitable
conduits and cable sleeves.
3
When connecting the input/ output power cords, please observe the following rules.
- Turn off the UPS and cut off both AC source and the battery source before
connection.
- Calculate the power consumption of the loads to avoid an overload condition.
- Ensure that the screws are tightly xed after connection. Please refer to Table 7-1.
